Coolant Level Sensor: Service and Repair

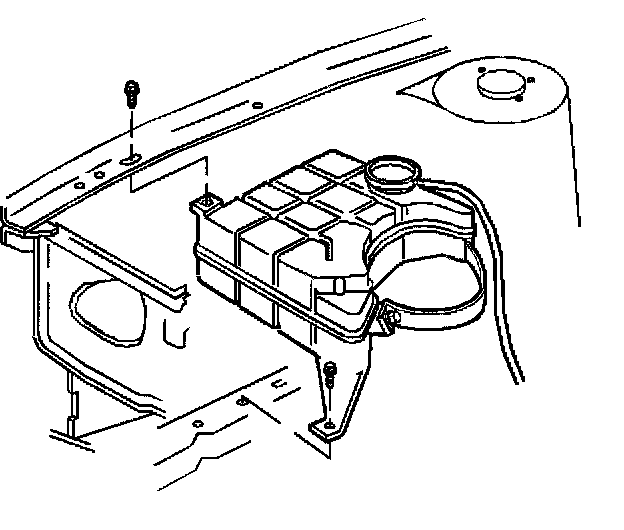

Removal Procedure





1. Disconnect the electrical connector from the coolant level sensor.
2. Remove the surge tank. Refer to Surge Tank Replacement.

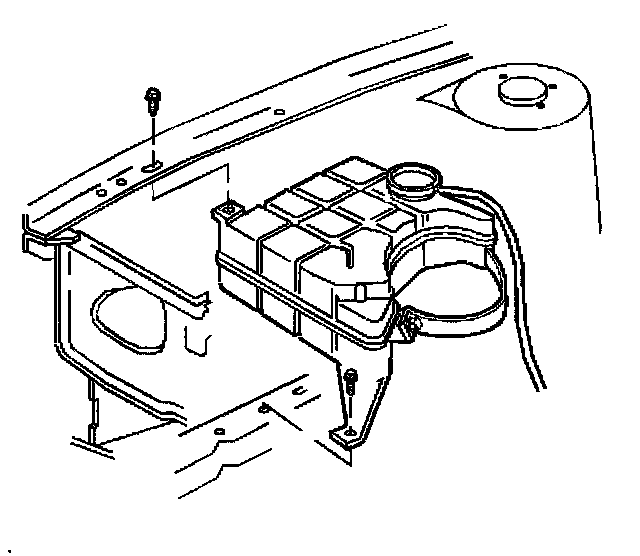

Installation Procedure





1. Connect the electrical connector to the coolant level sensor.
2. Install the new surge tank. Refer to Surge Tank Replacement.
