Instrument Panel (IP) - Trim Panel Replacement - Right

Instrument Panel Trim Panel Replacement - Right Side

Removal Procedure

1. Remove the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement (Service and Repair) .
2. Remove the instrument panel cluster. Refer to Instrument Cluster Replacement (Instrument Panel Cluster (IPC) - Replacement) .

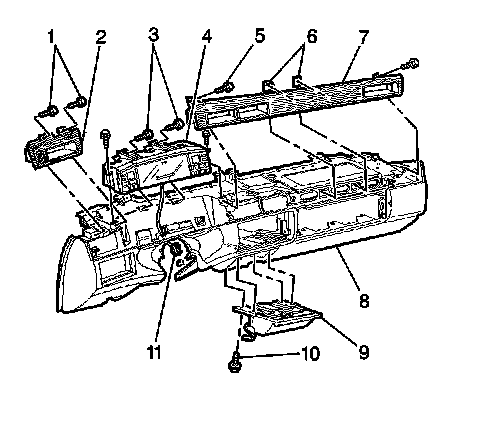

3. Remove the 2 fasteners (5) from the ends of the right hand trim panel.
4. Remove the 2 fasteners from the top center of the right hand trim panel.
5. Release the hook and loop patch(s) (6) from the backside of the right hand trim panel (7).
6. Remove the trim panel (7).



Installation Procedure

1. Align the right hand trim panel (7) into position.




2. Install the trim panel (7).
In order to secure the hook and loop patch, gently press at the center point of the trim panel.
3. Install the 2 fasteners to the top center of the right hand trim panel.
4. Install the 2 fasteners (5) to the ends of the right hand trim panel (7).
5. Install the instrument panel cluster. Refer to Instrument Cluster Replacement (Instrument Panel Cluster (IPC) - Replacement) .
6. Install the instrument panel upper trim panel. Refer to Instrument Panel Upper Trim Pad Replacement (Service and Repair) .
