Home >> Cadillac >> 2000 >> Eldorado V8-4.6L VIN Y >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Instrument Cluster / Carrier >> Diagrams >> C3

C3

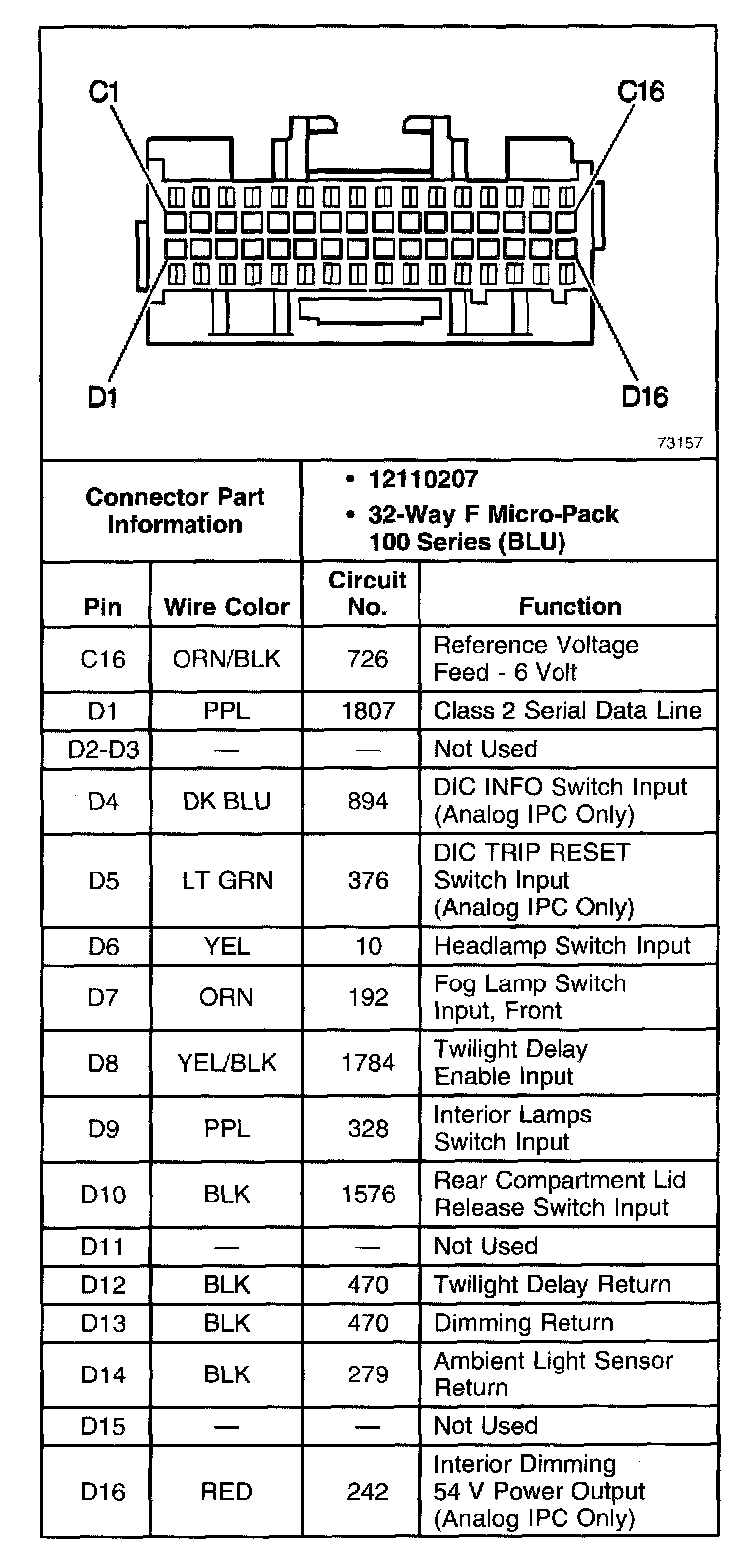

Instrument Cluster C3 (Part 1 Of 2):

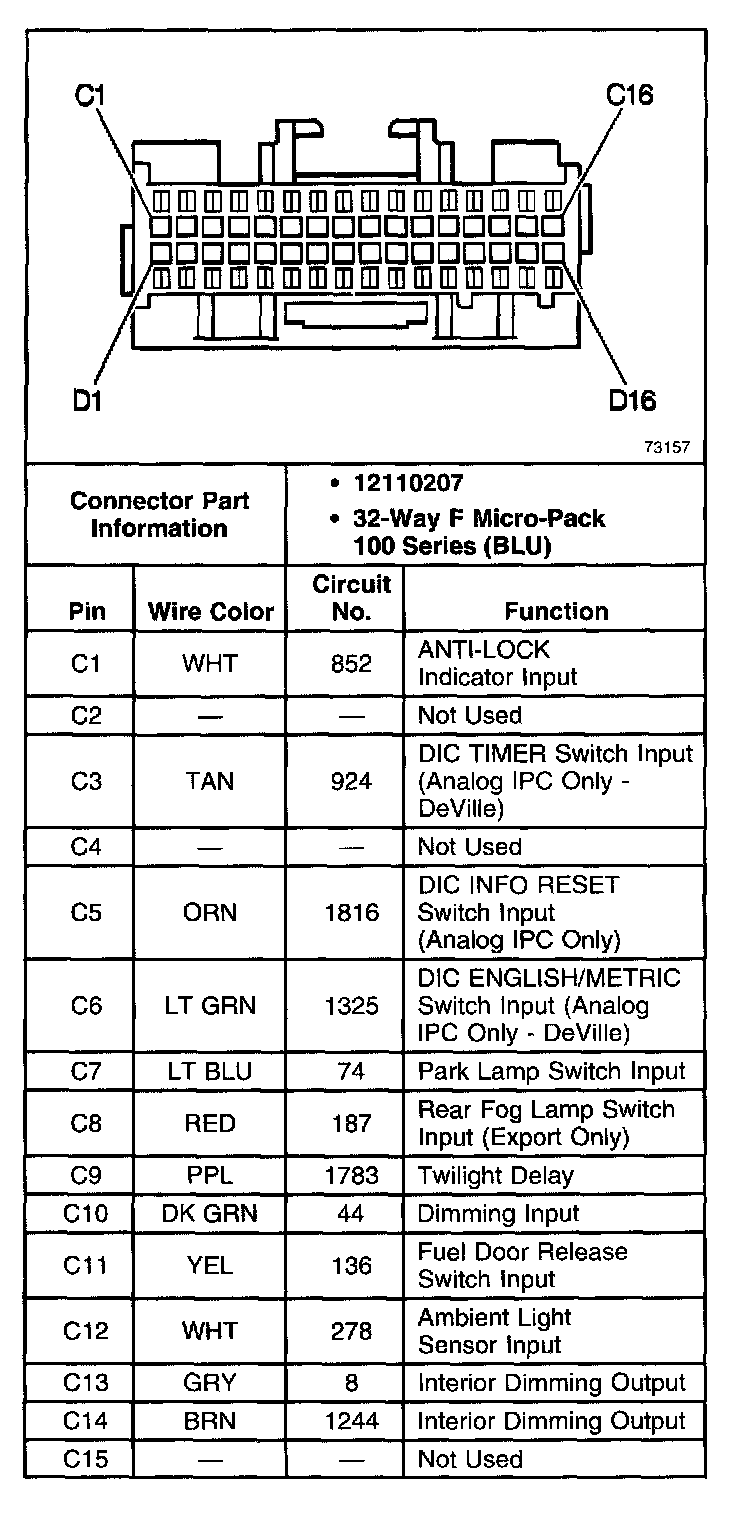

Instrument Cluster C3 (Part 2 Of 2):
