Home
>>
Cadillac
>>
2000
>>
Eldorado V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
S400 - S499
>>
S431
S431

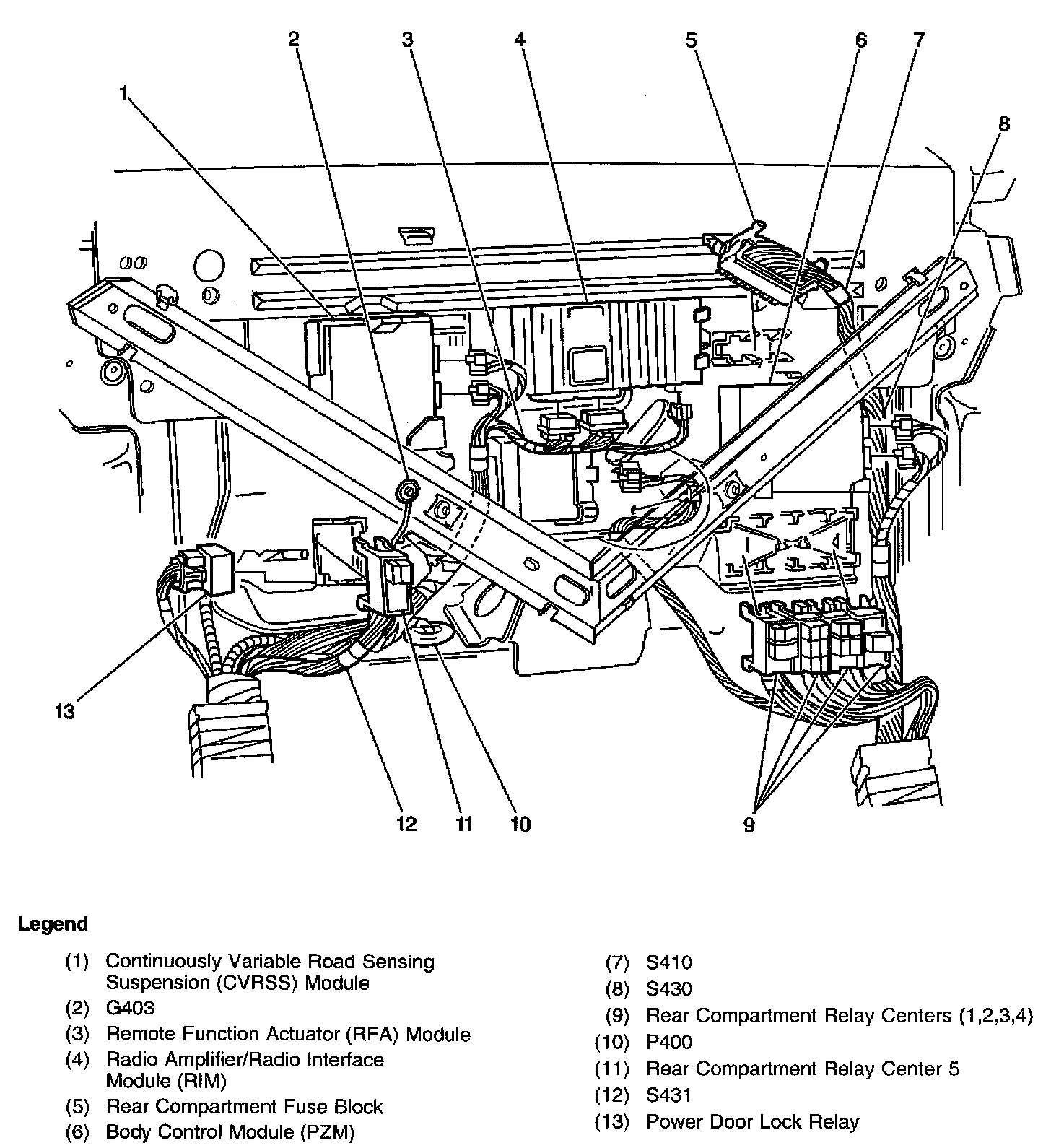

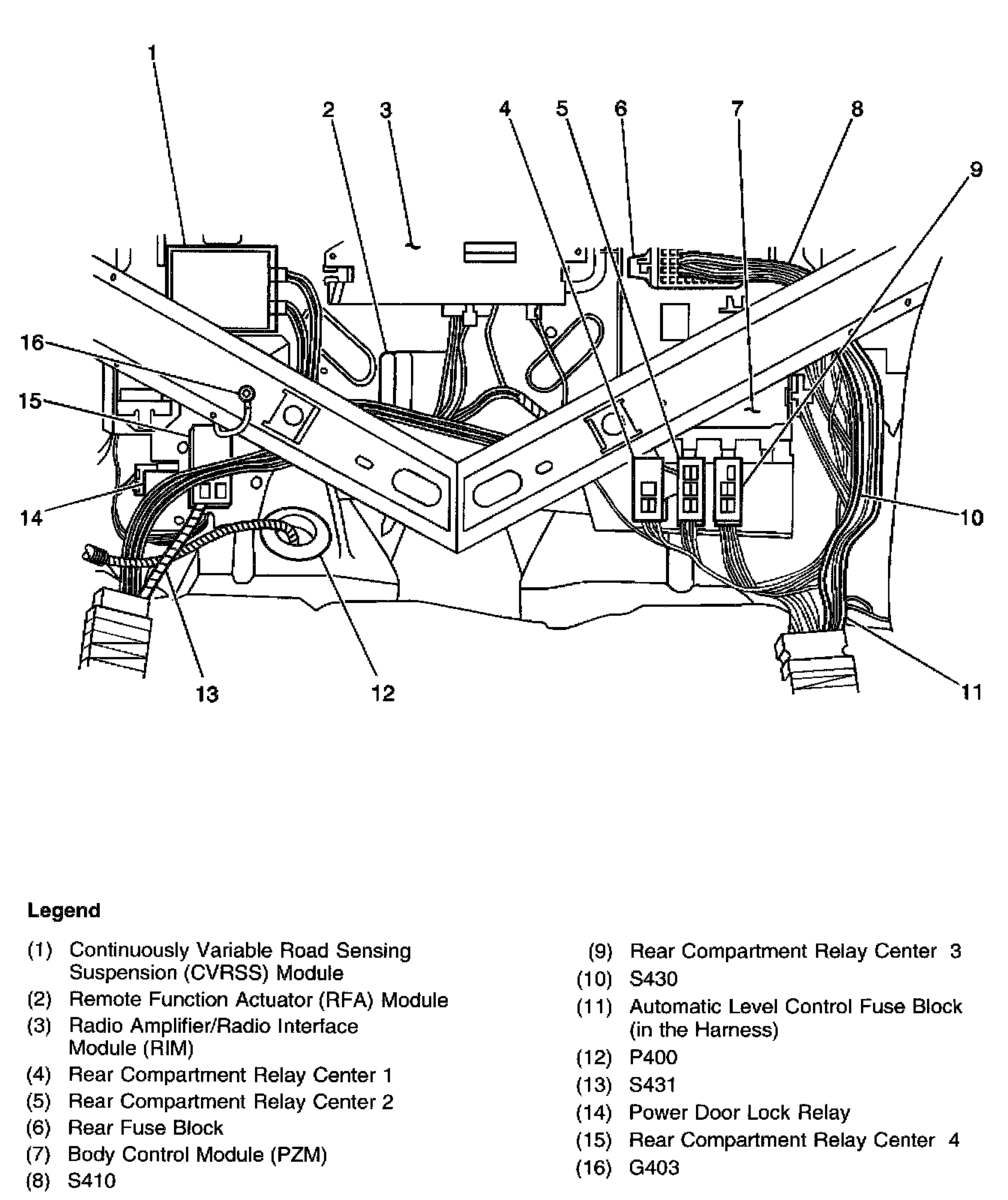

Locations View:
Locations View:
Locations View:
In the body harness, approximately
3 cm (1.1 in)
from the door lock relay connector breakout
