BRAKE

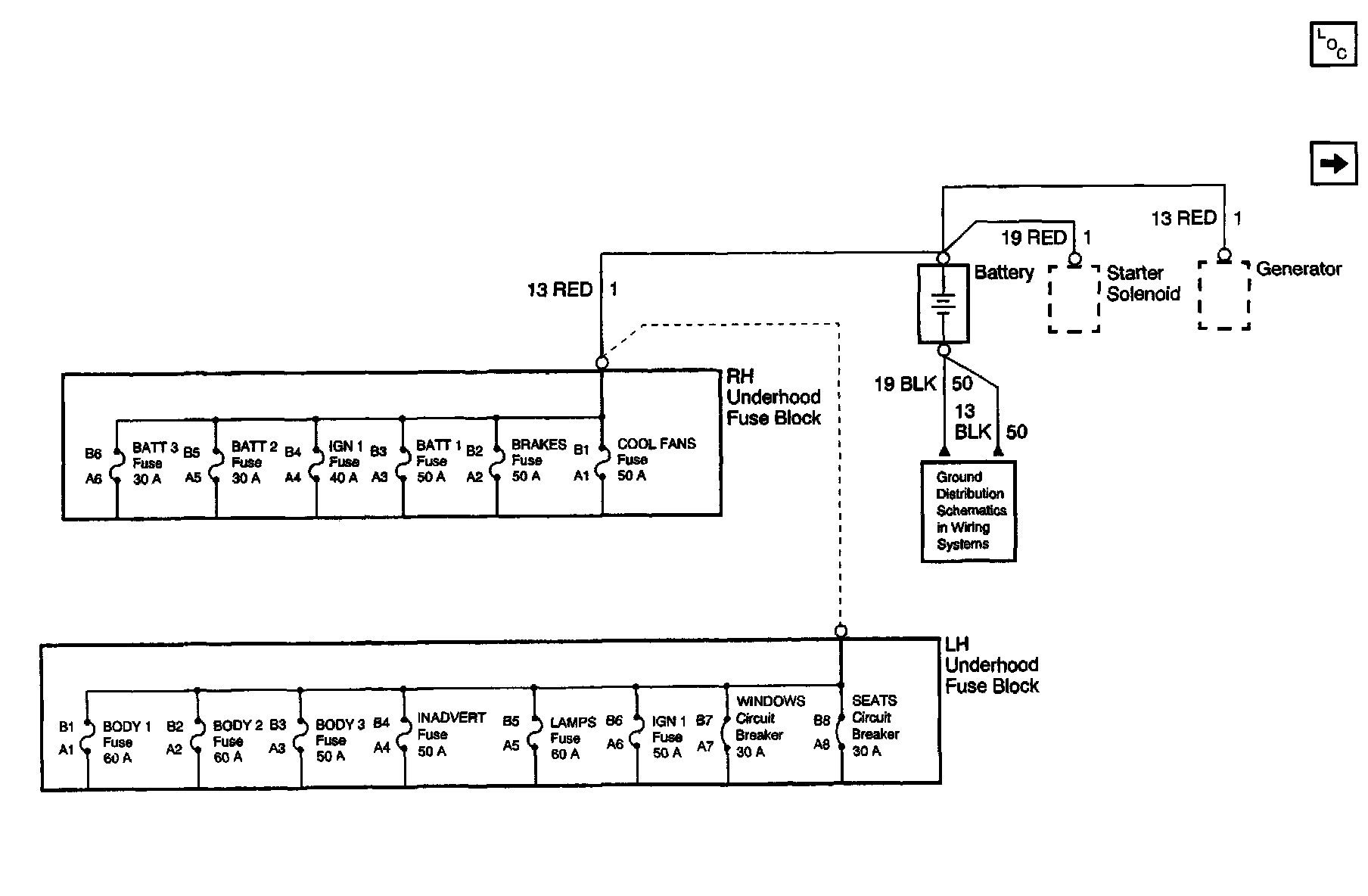

Power Distribution Schematics: Battery Feeds:

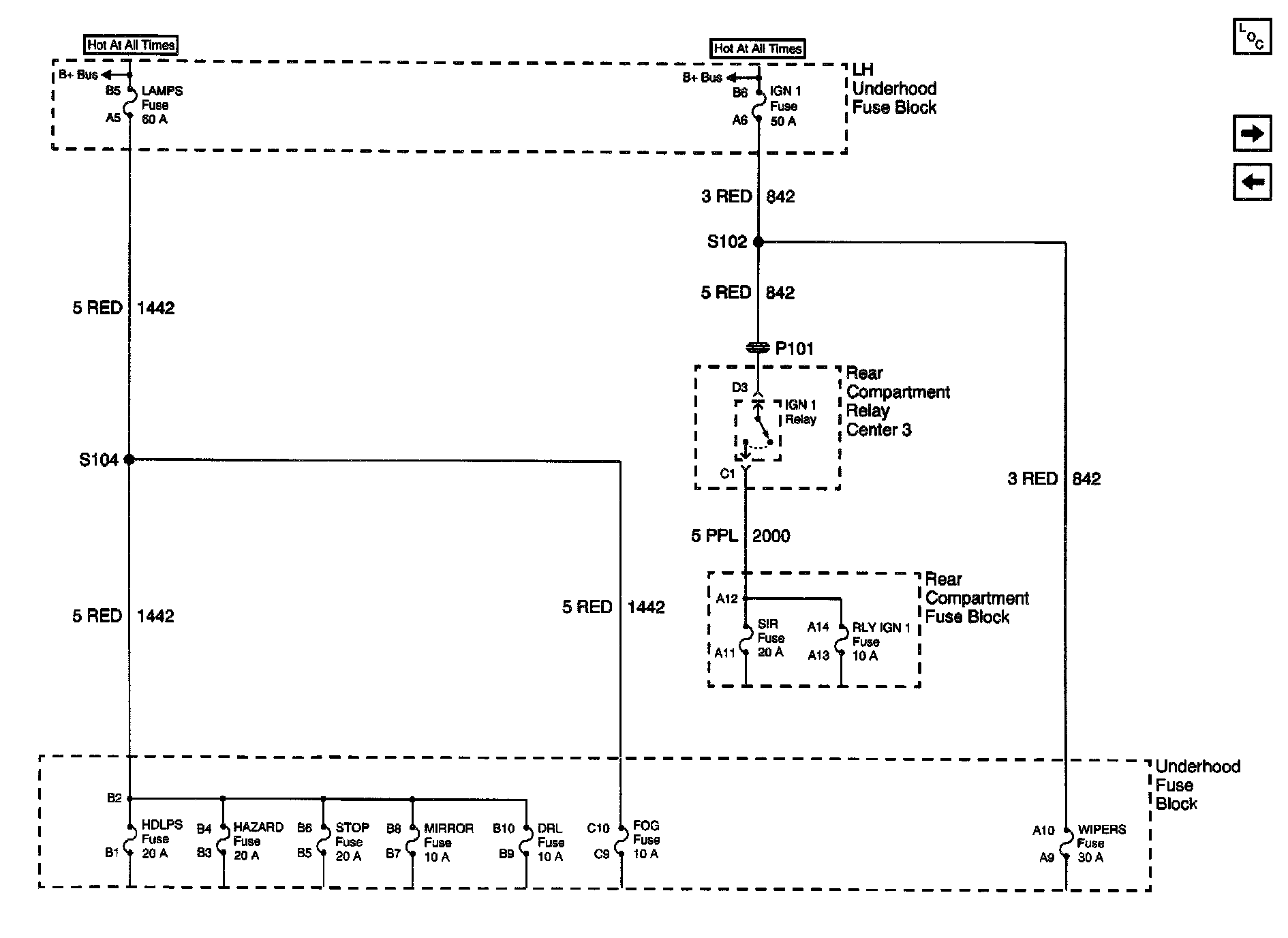

Power Distribution Schematics: LAMPS And IGN 1 Fuses:
