42. Case Cover/Turbine Shaft Seal Replacement

- Tools Required
- J 39062 Turbine Shaft Seal Tool
- J 39648 Drive Sprocket Seal Installer

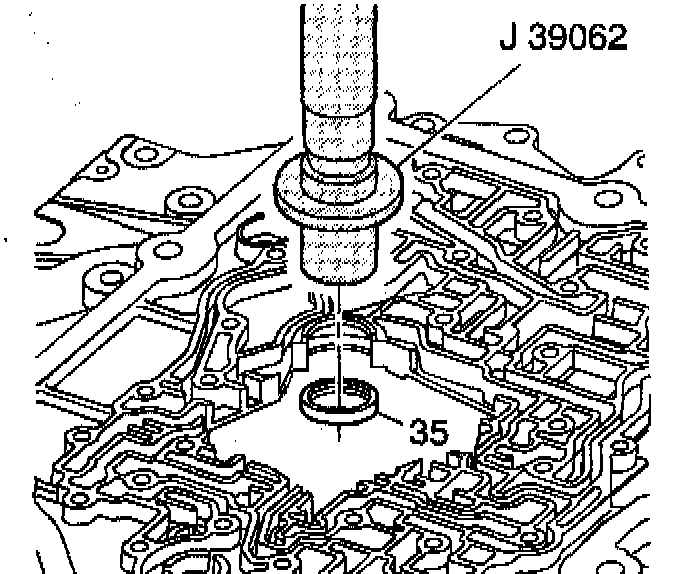

1. Using the remover side of the J 39062, remove the case cover to the turbine shaft seal (35).

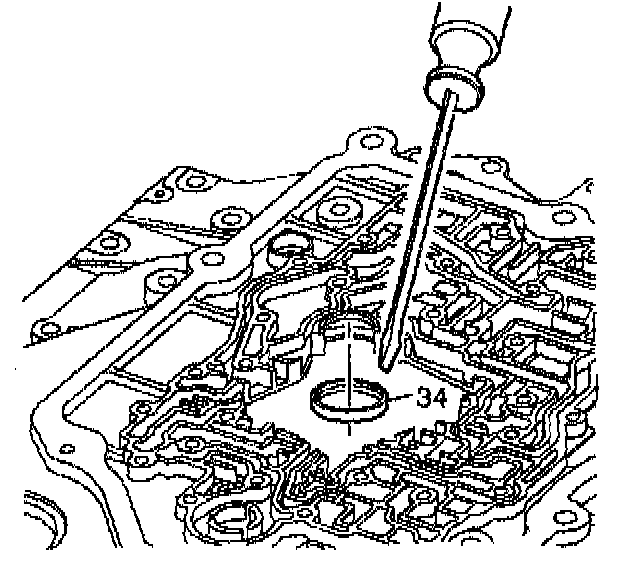

2. Using a small screwdriver, remove the drive sprocket seal (34),by tapping the seal out through the slots in the case cover.





3. Using the installer side of the J 39062, install the case cover to the turbine shaft seal.

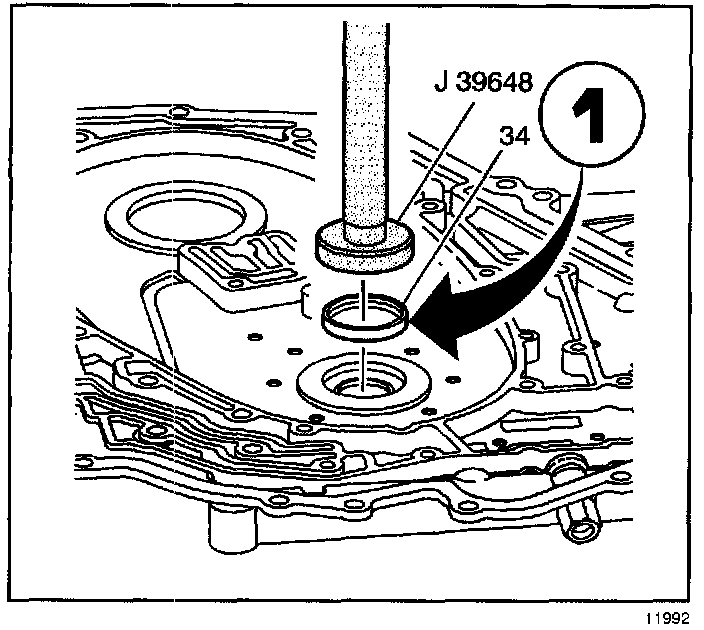

4. Using the J 39648, install the drive sprocket seal (34).
