Scan Tool Data List

Transmission Scan Tool Data List
Use the scan tool data values under the following conditions:
- The Powertrain On-Board Diagnostic (OBD) System Check is complete.
- The On-Board Diagnostics are functioning properly.
- No DTCs are present.

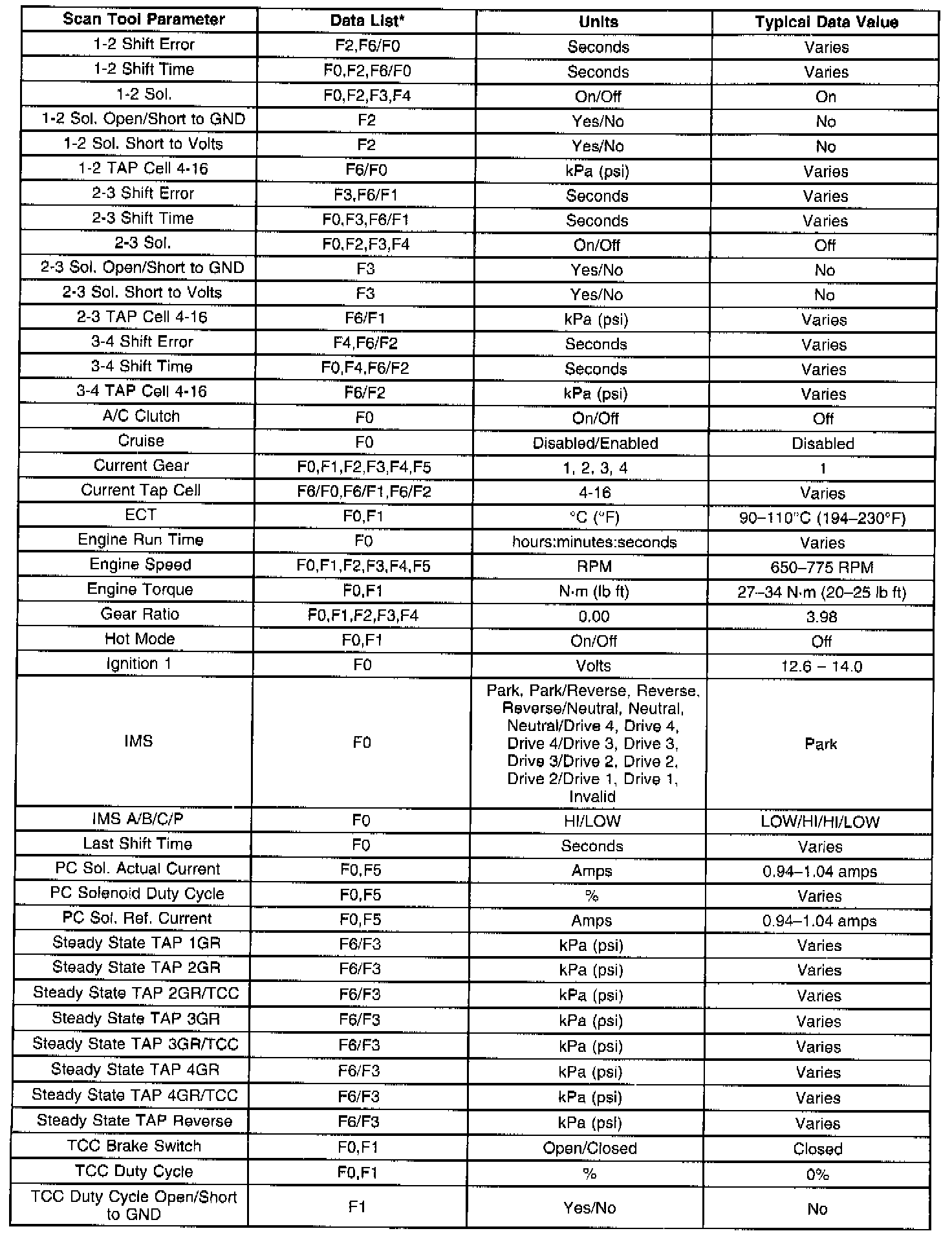

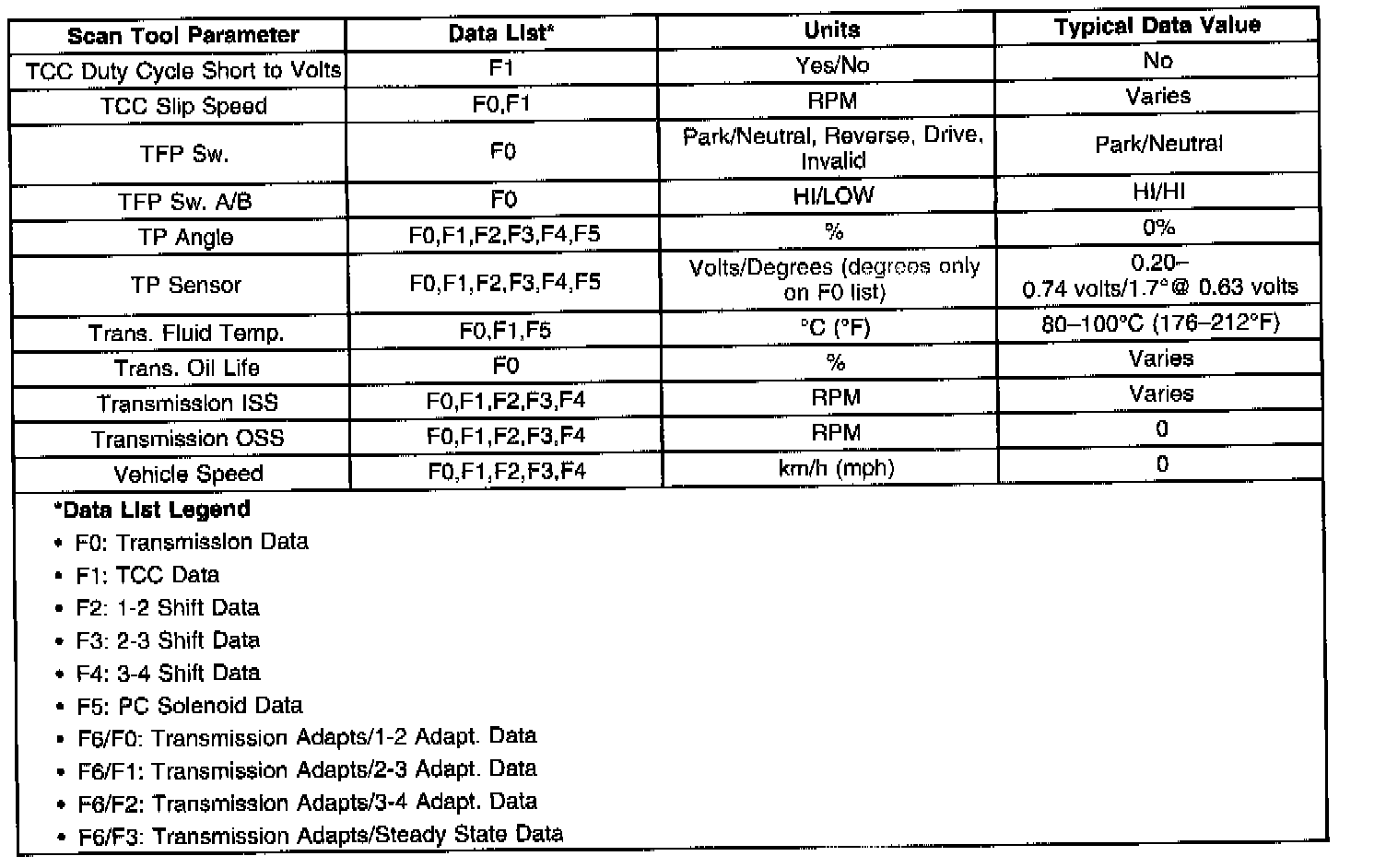

The values below represent a typical display recorded from a properly functioning system.

Important: Do not use a scan tool that displays faulty data. Report the condition to the scan tool manufacturer. The use of a faulty scan tool can result in misdiagnosis and the unnecessary replacement of parts.

Only the parameters listed in the provided table are used in these procedures for diagnosing. If a scan tool displays other parameters, the values are not recommended by General Motors for use in diagnosis.
Scan tool values below were recorded under the following conditions:
- Engine at idle
- Upper radiator hose hot
- Closed throttle
- Transmission in Park
- Closed Loop operation
- Accessories OFF
- Brake pedal not applied
