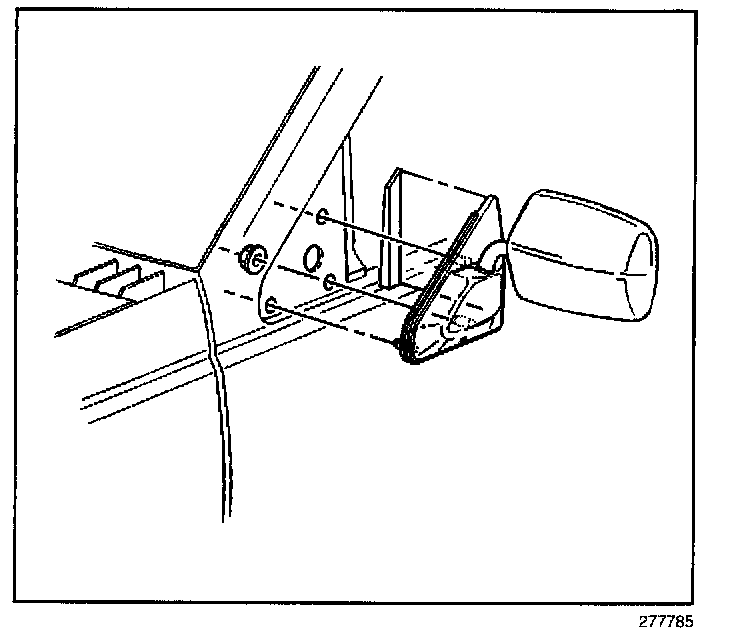

REMOVAL PROCEDURE




1. Remove the trim panel upper extension.
2. Remove the access hole plugs.
3. Remove the nut securing the outside rearview mirror to the door.
4. Remove the outside rearview mirror.

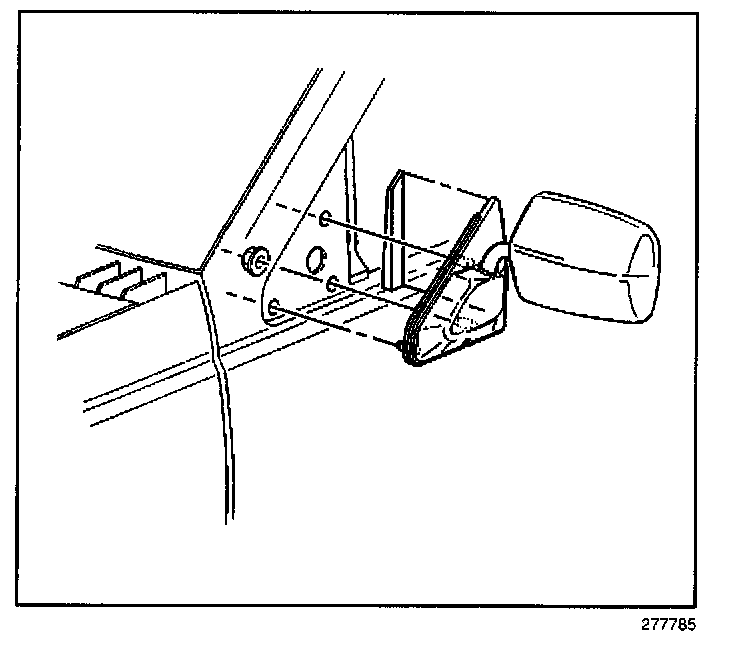

INSTALLATION PROCEDURE




1. install the outside rearview mirror to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the nuts securing the outside rearview mirror to the door.

Tighten
Tighten the outside rearview mirror nuts to 6 N.m (53 lb in).

3. Install the access hole plugs.
4. Install the trim panel upper extension.
