Bench Seat Replacement
Bench Seat ReplacementRemoval Procedure 1.
Remove the seat riser trim cover.
2.

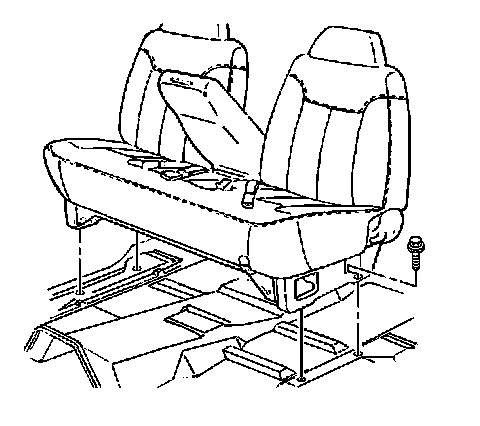

Remove the seat retaining bolts.
3.
Remove the seat from the vehicle.
Installation Procedure 1.
Install the seat to the vehicle.
Notice: Refer to Fastener Notice in Service Precautions.
2.
Install the seat retaining bolts.
Tighten the bolts to 55 N.m (41 lb ft). 3.
Install the seat riser trim cover to the seat.
