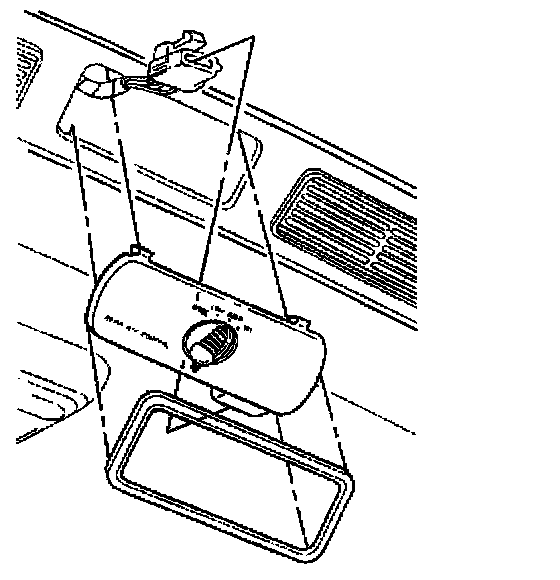

Control Assembly Replacement - Auxiliary (4 - Door)
REMOVAL PROCEDURE 1.
Remove the bezel.
2.
Remove the
control assembly from the roof panel.
3.
Disconnect the electrical harness from the
control assembly.
INSTALLATION PROCEDURE 1.
Connect the electrical harness to the
control assembly.
2.
Install the
control assembly to the roof panel.
3.
Install the bezel.
4.
Test the circuit operation.
