Heater Core: Testing and Inspection
DIAGNOSTIC AIDSSteps 1-10:

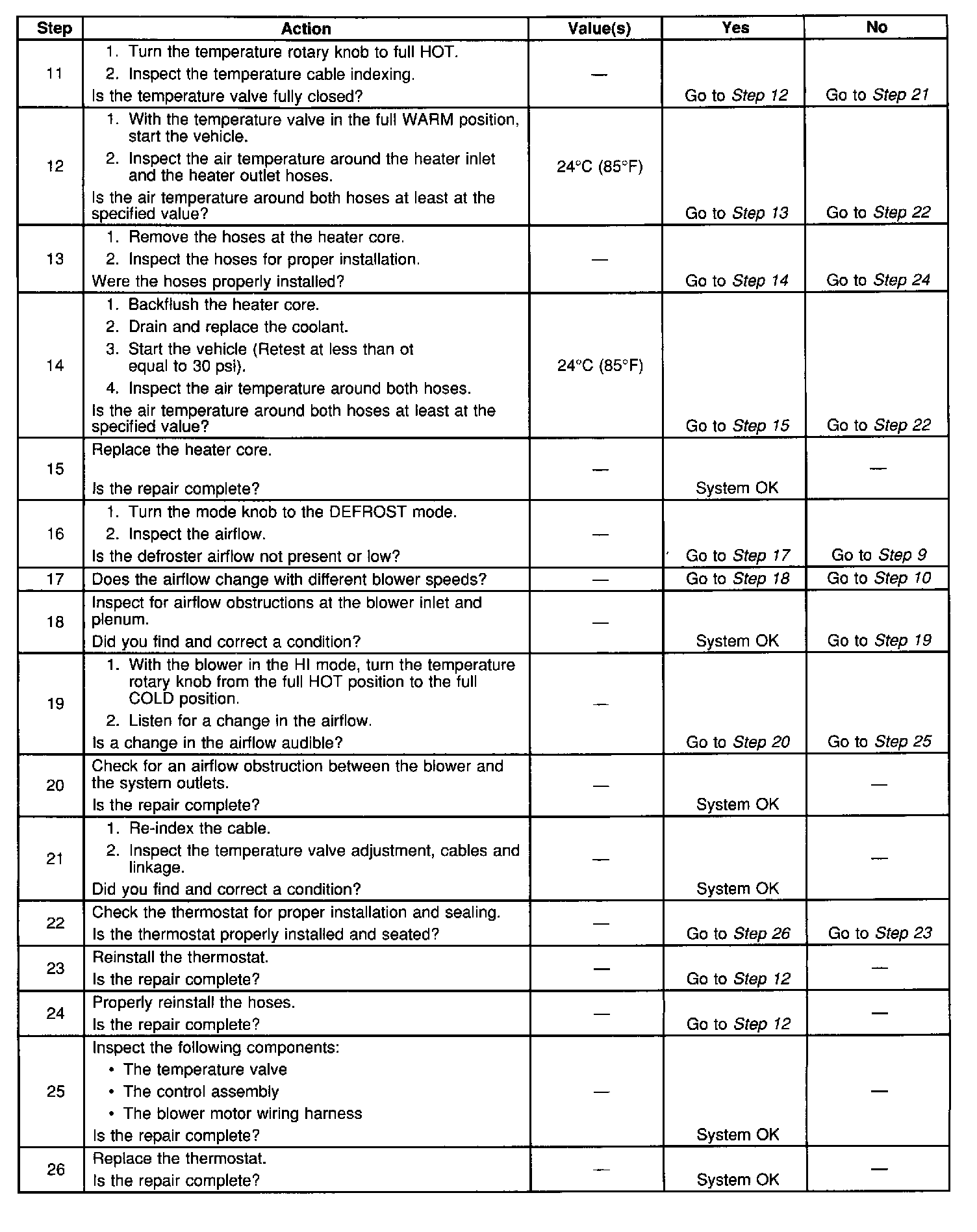

Steps 11-26:
The most likely causes of insufficient heating outside the heater system include a low coolant level, a faulty thermostat, a partially or fully clogged
heater core or hose, an obstruction to the air circulation, or an air leak past a faulty seal into the passenger compartment. For the proper temperature verification, use the Tech II
