Crankshaft Position Timing Ring: Service and Repair

Removal Procedure

^ Tools Required
- Use J 5590 Installer.





1. Disconnect the Negative Battery Terminal. Refer to Battery Cable.
2. Remove the engine front cover. Refer to Engine Front Cover Replacement.

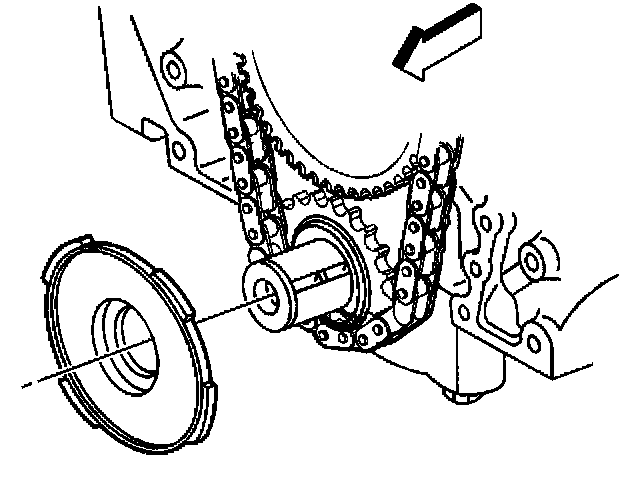

3. Remove the crankshaft position sensor reluctor ring.


Installation Procedure

Notice: Failure to properly align the crankshaft position sensor reluctor ring may result in component damage and effect OBD II system performance.

Important: The reluctor ring is shaped like a dish. The dish must face the engine front cover.

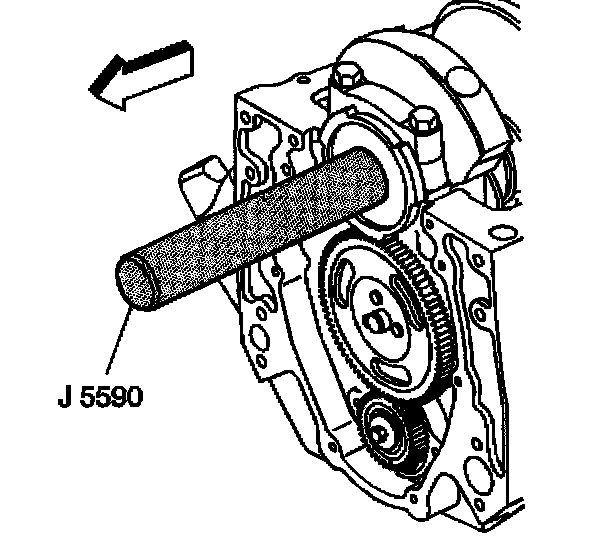

1. Install the crankshaft position sensor reluctor ring. Using the J 5590 installer.
2. Align the keyway on the crankshaft position sensor reluctor ring with the woodruff key (crankshaft balancer) in the crankshaft.
3. Push the crankshaft position sensor reluctor ring onto the crankshaft until completely seated against the crankshaft sprocket.
4. Install the engine front cover. Refer to Engine Front Cover Replacement.
5. Install the Negative Battery Terminal. Refer to Battery Cable.
