Clutch Switch: Service and Repair

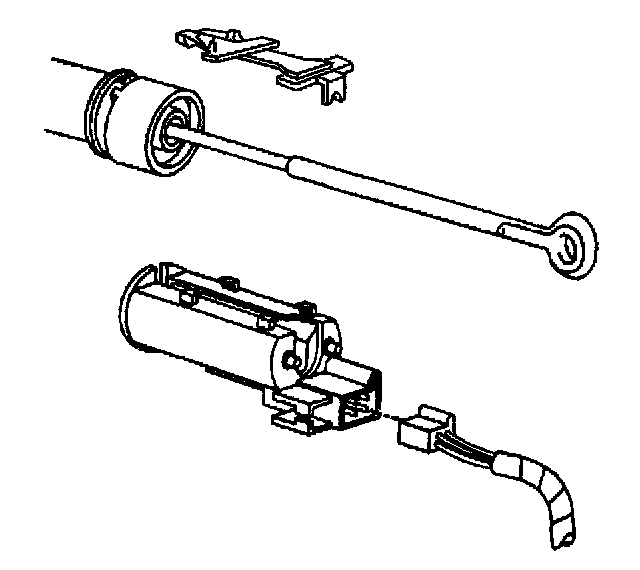

Removal Procedure





1. Remove the LH IP sound insulator panel.
2. Remove the plastic retainer tabs from the clutch start switch.
3. Remove the clutch start switch from the push rod.
4. Remove the connector from the switch.

Installation Procedure





1. Install the connector to the clutch start switch switch.
2. Install the clutch start switch to the pushrod with the plastic tabs.
3. Install the push rod to the clutch pedal.
4. Install the LH IP sound insulator panel.
