Front Door Window Glass: Service and Repair



Front Side Door Window Replacement

Removal Procedure

1. Lower the window.
2. Remove the trim panel.
3. Remove the water deflector.




4. Remove the inner mounting panel assembly.

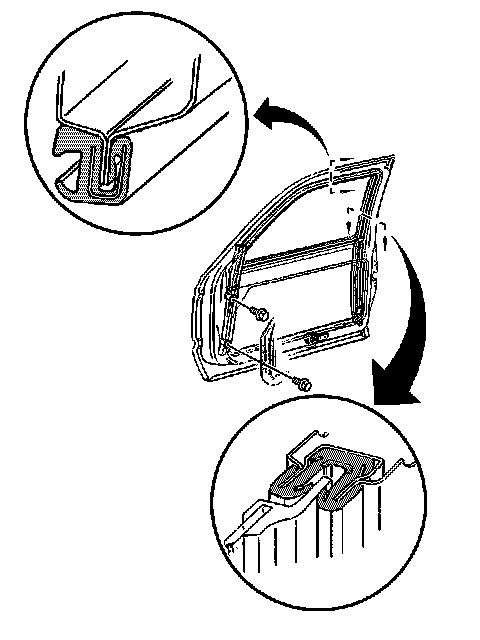

5. Remove the window front channel top screw.
6. From the bottom of the door, slide out the window from the glass channels.



Installation Procedure





1. Slide the window into the glass channels through the bottom of the door.
2. Install the window front channel top bolt finger tight.
Do not tighten the bolt.

Notice: Refer to Fastener Notice in Service Precautions.





3. Install the inner mounting panel by completing the following steps:

1. Slide the regulator rollers into the glass channel.
2. Align the inner panel lower front corner bolt with the hole in the front glass channel assembly.
3. Tighten the window front channel top bolt.

Tighten the bolt to 2 N.m (18 lb in).

4. Tighten all of the inner panel bolts.

Tighten the inner panel bolts to 2 N.m (18 lb in).


4. Install the water deflector.
5. Install the trim panel.
