Endgate Window Hinge Replacement



Endgate Window Hinge Replacement

Removal Procedure

1. Remove the endgate window supports.




2. Remove the hinge pin retainers and discard.
3. Remove the endgate window assembly from the vehicle.
4. Remove the endgate window garnish molding.

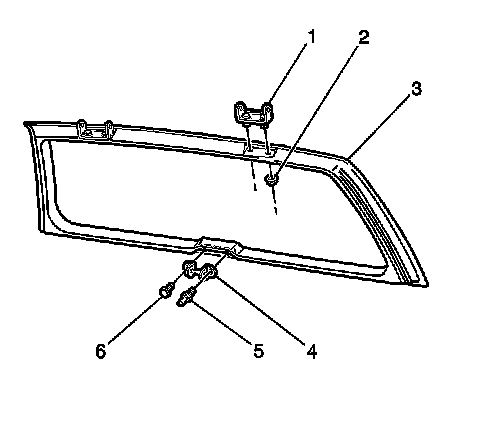

5. Remove the hinge (1) to the endgate window assembly nuts(2).
6. Remove the hinge from the endgate window.



Installation Procedure





1. Install the hinge (1) to the endgate window.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the hinge to the endgate window assembly nuts (2).

Tighten the hinge to the endgate window assembly nuts to 23 N.m (17 lb ft).

3. Install the endgate window garnish molding.
4. Install the endgate window assembly (3) to the vehicle.
5. Install the hinge pin.
6. Install new hinge pin retainers.
7. Install the endgate window supports.
