Wiper Transmission Replacement

REMOVAL PROCEDURE




1. Remove the wiper arms.
2. Remove the air inlet grille panel.

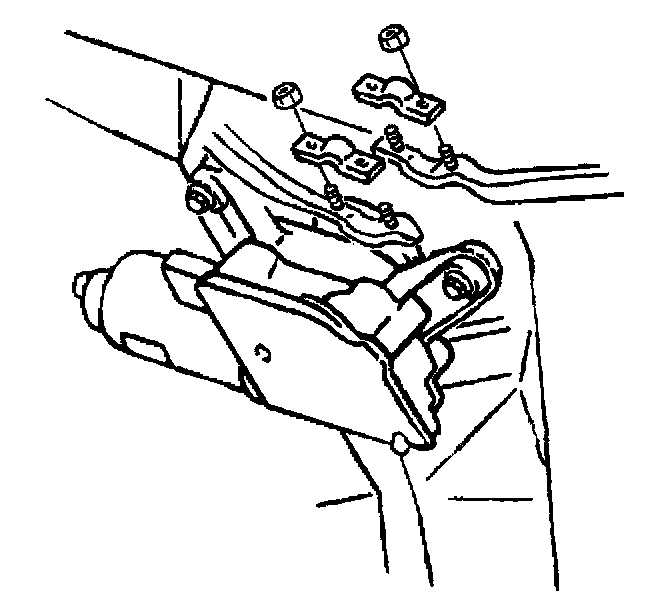

3. Loosen the nuts attaching the drive link brackets to the crank arm.
4. Remove the brackets from the wiper motor crank arm.

IMPORTANT: Note the position of the right and left transmission links for reassembly.

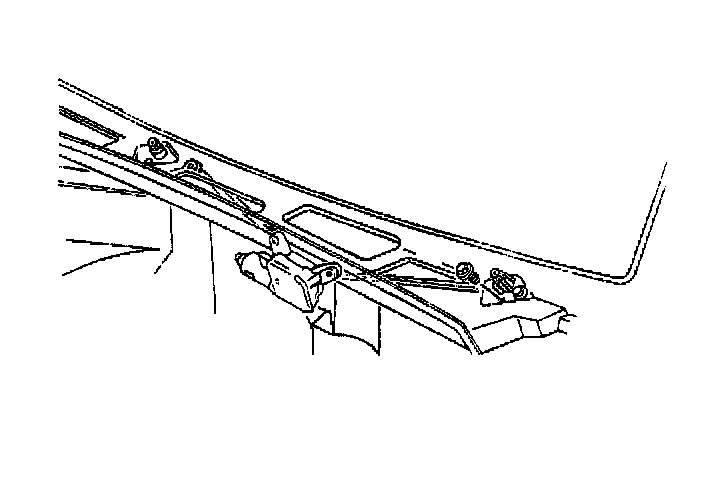

5. Remove the transmission to cowl bolts.
6. Remove the transmission assembly from the vehicle.

INSTALLATION PROCEDURE




1. Install the wiper transmission assembly to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the transmission to cowl bolts.

Tighten
Tighten the bolts to 7 N.m (62 lb in).




3. Install the transmission brackets to the wiper motor crank arm.

Tighten
Tighten the drive link nuts to 5 N.m (44 lb in).

4. Install the air inlet grille panel.
5. Install the wiper arms.
