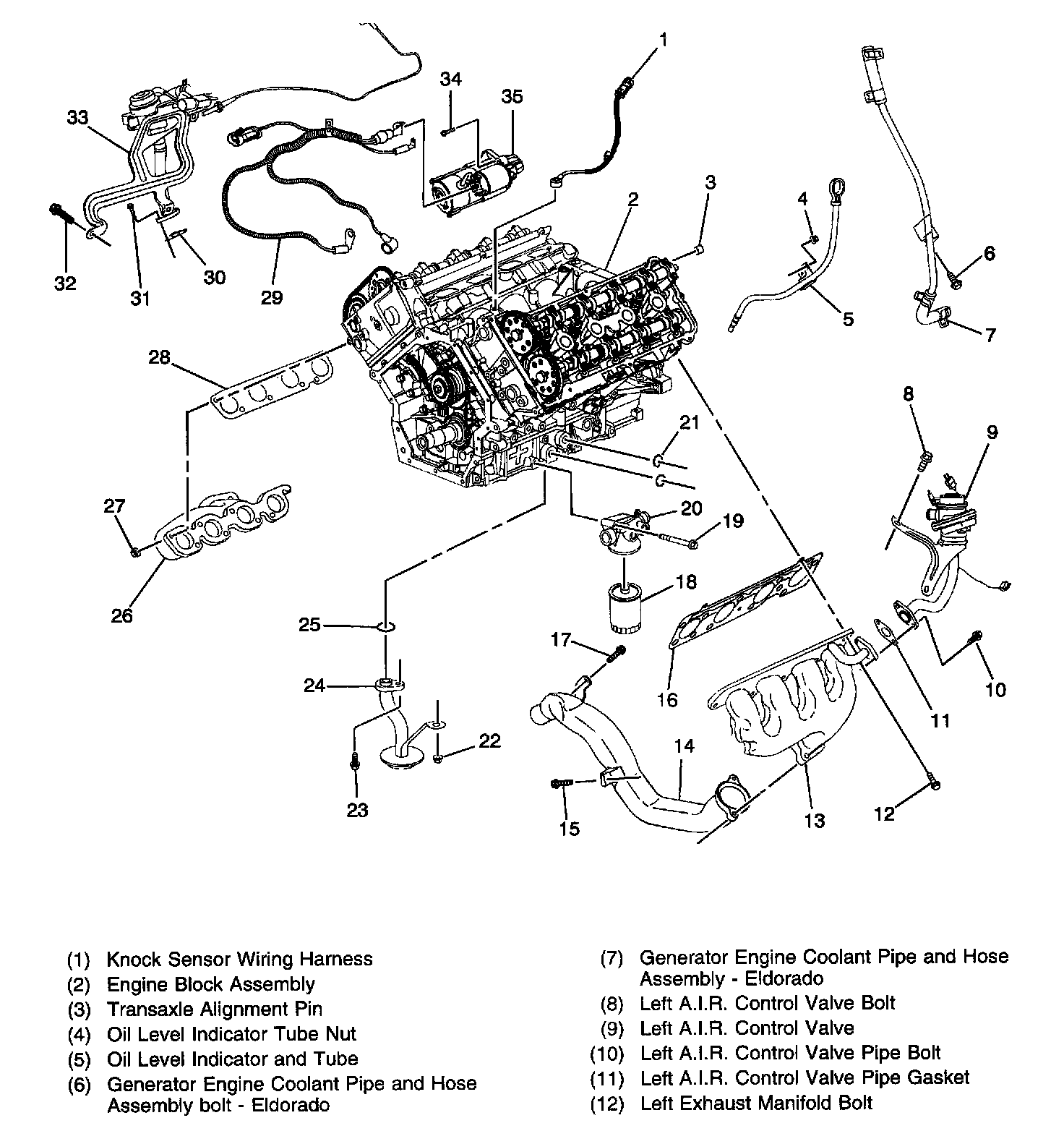

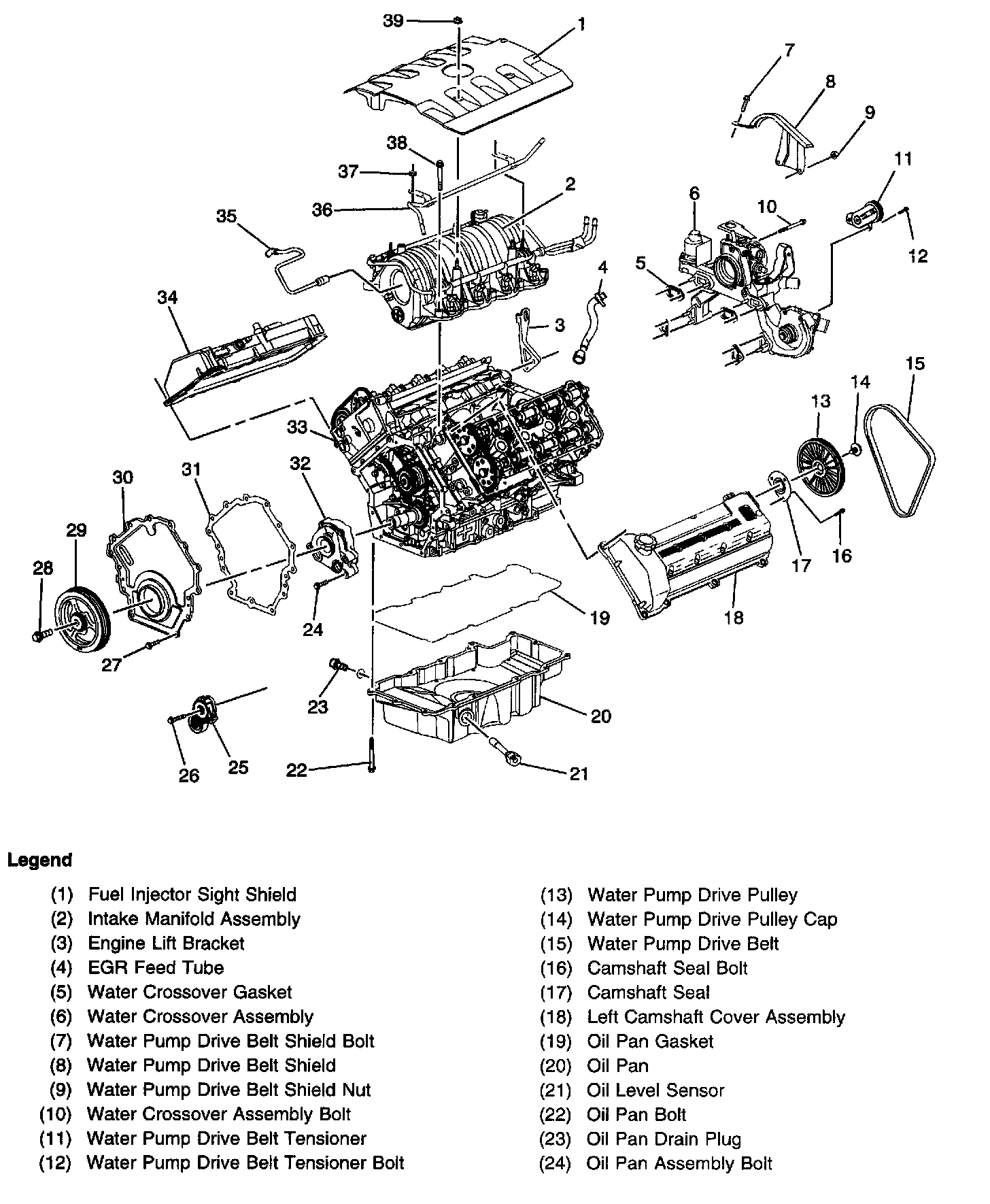

System Diagram









Engine Covers and Component Assemblies (1 of 2)








Engine Covers and Component Assemblies (2 of 2)

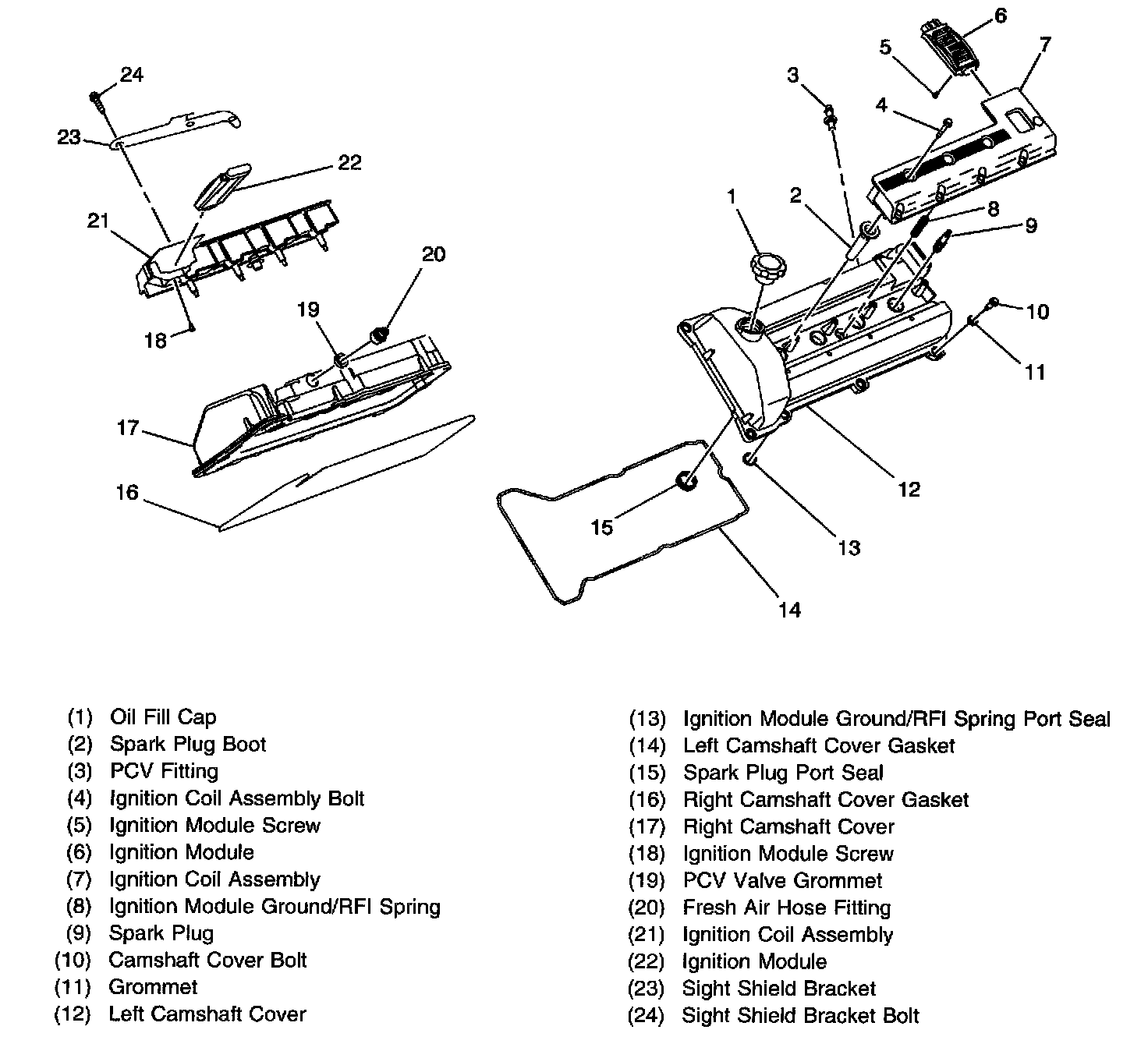

Camshaft Cover Assembly

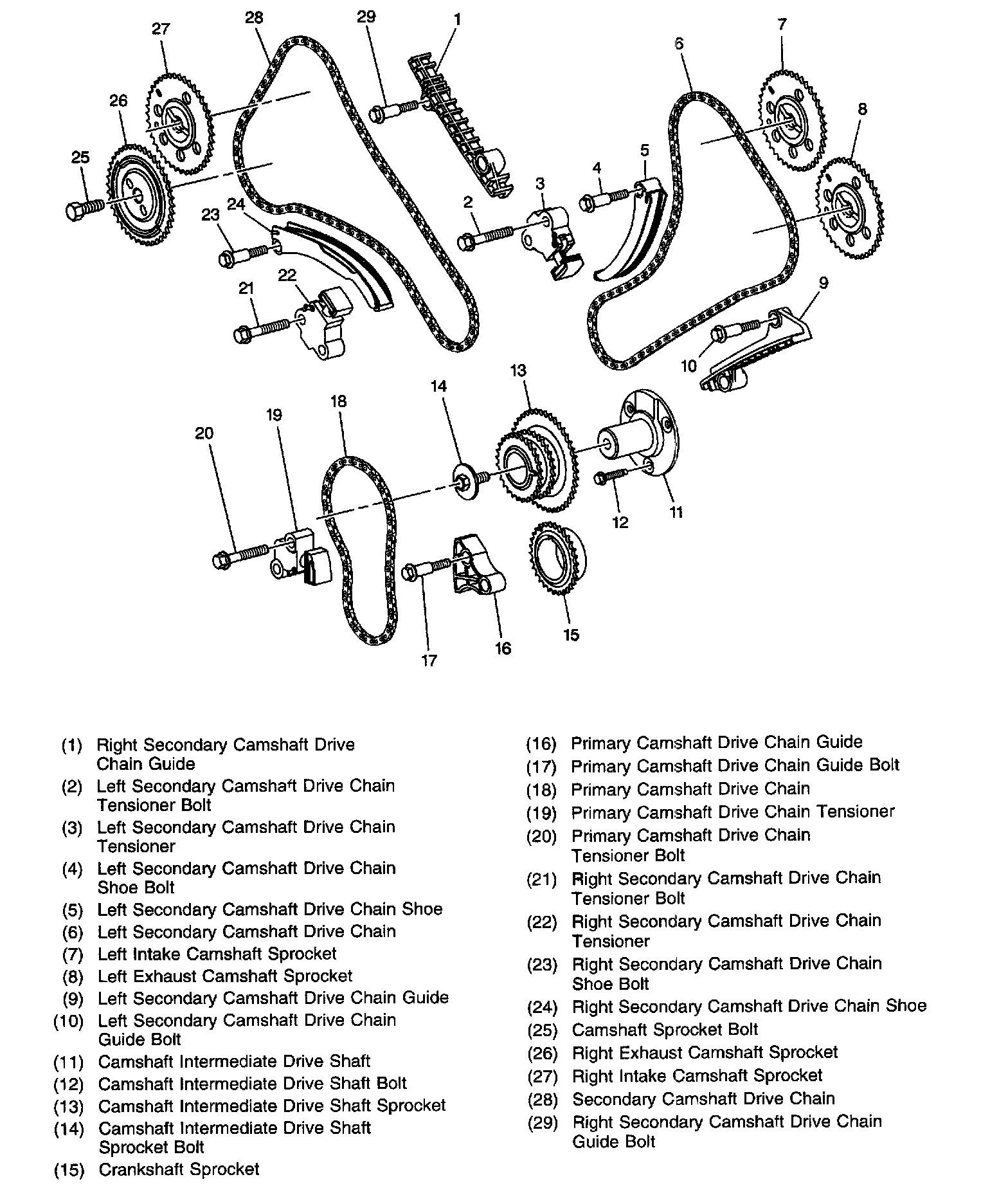

Camshaft Timing Components





Intake Manifold

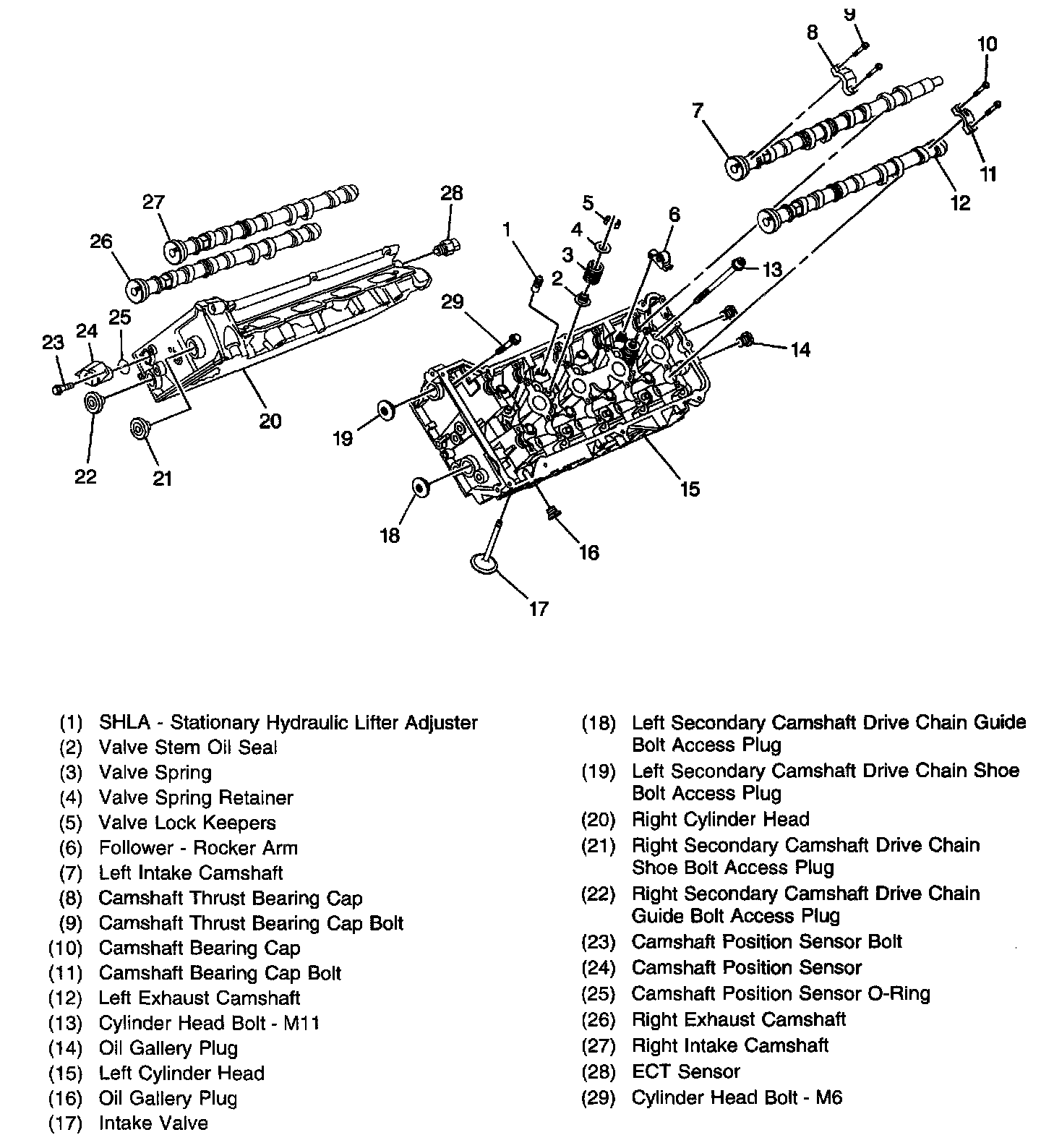

Cylinder Head Assemblies

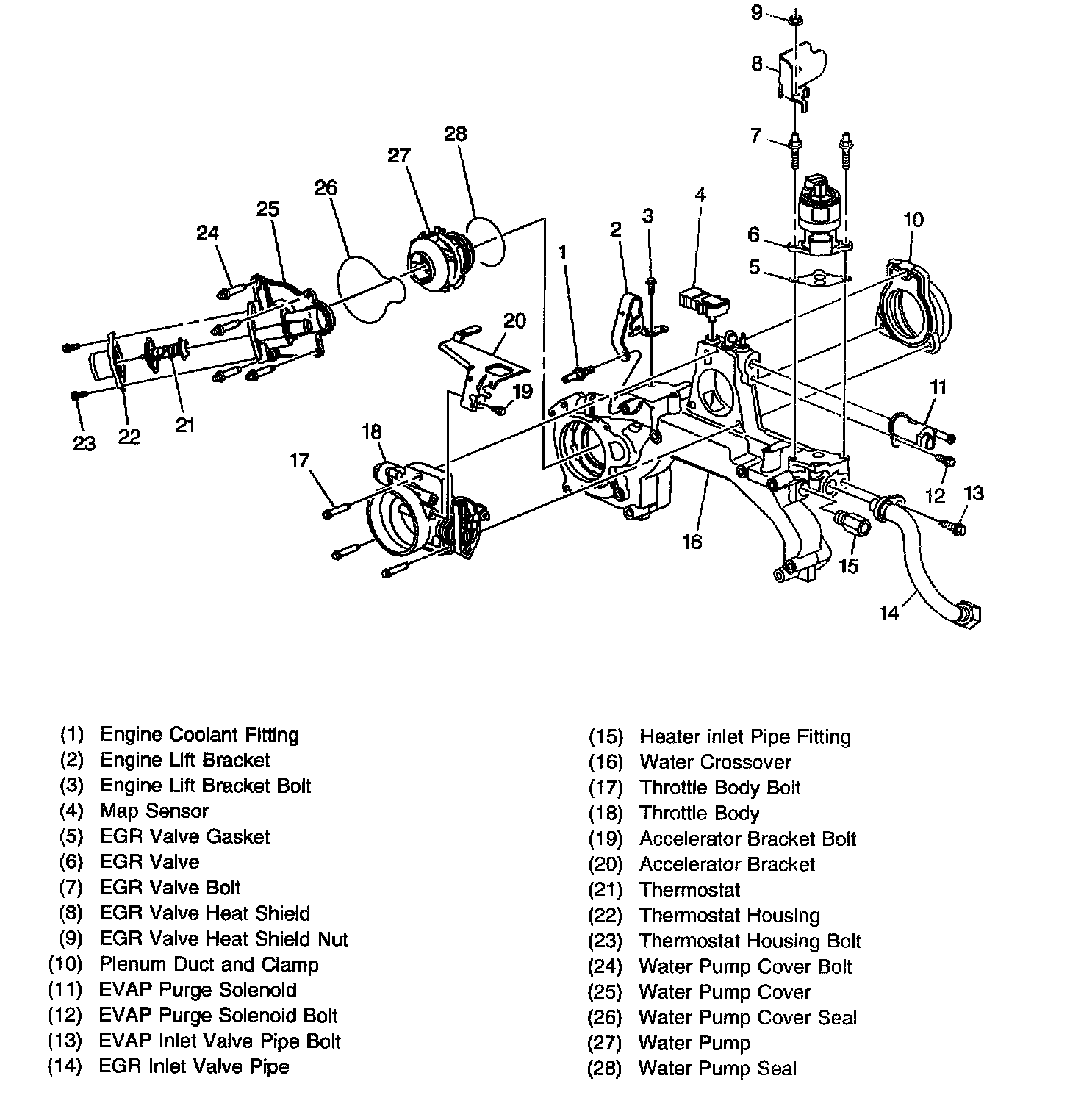

Water Crossover and Throttle Body Assembly

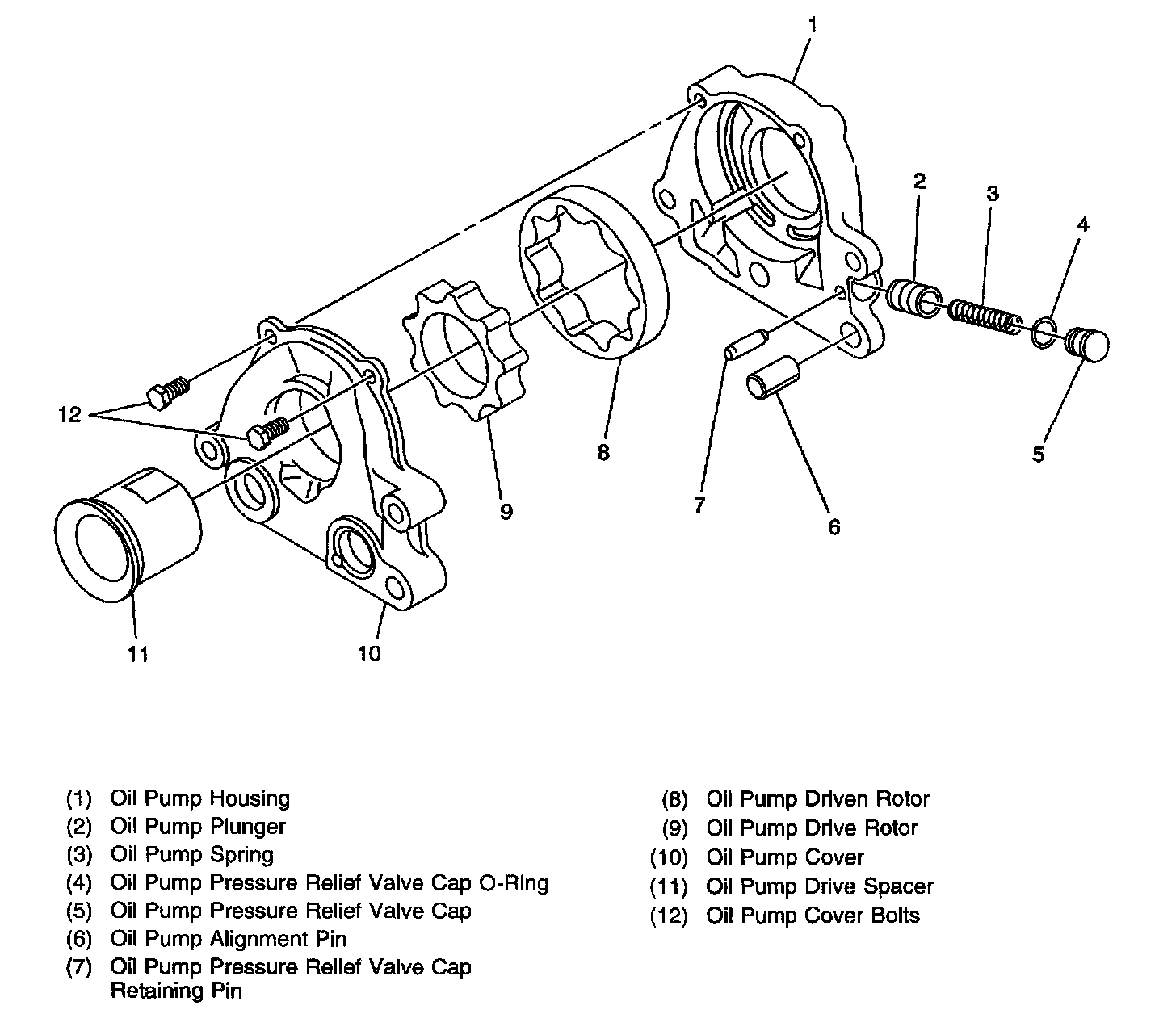

Oil Pump

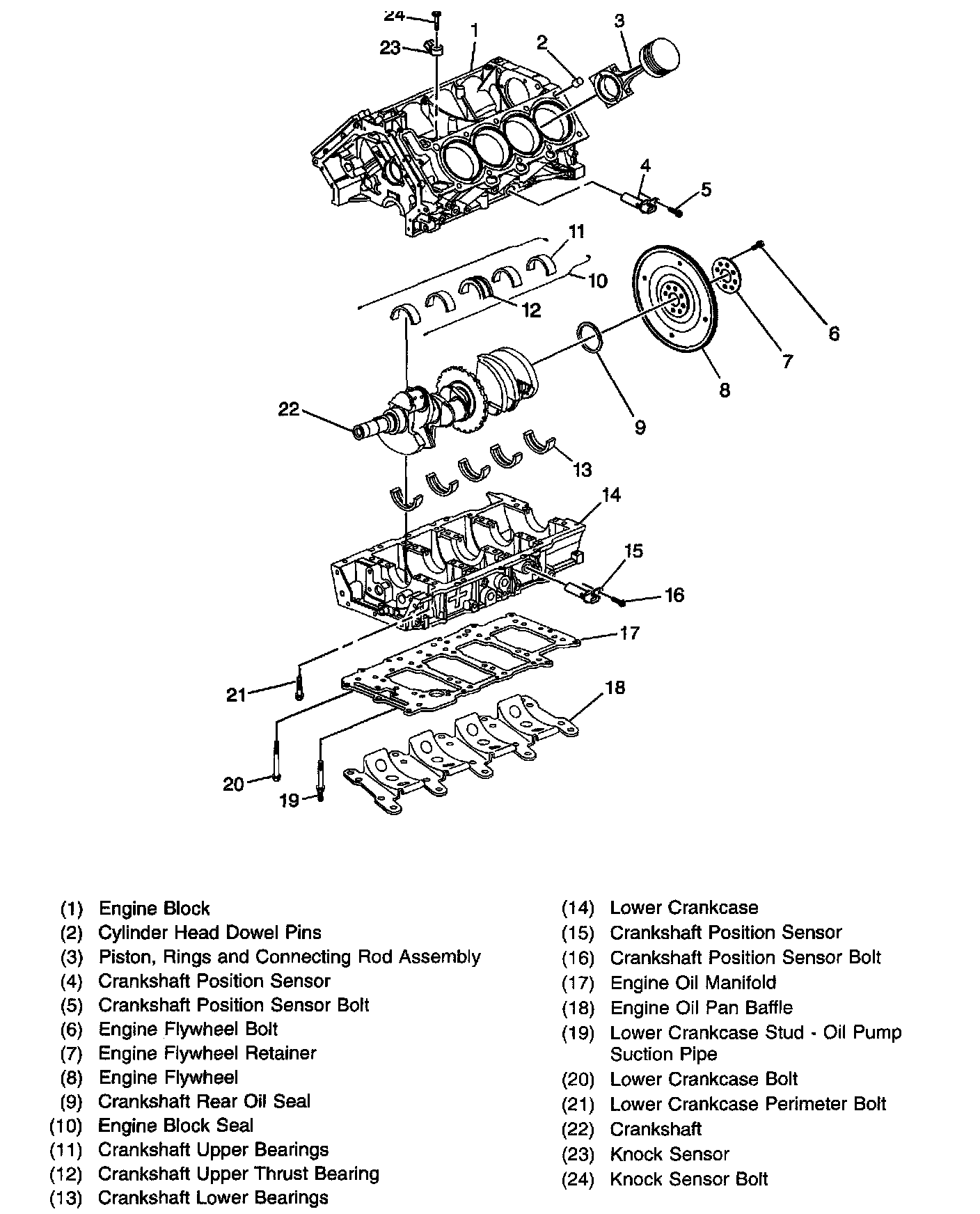

Engine Block Assembly

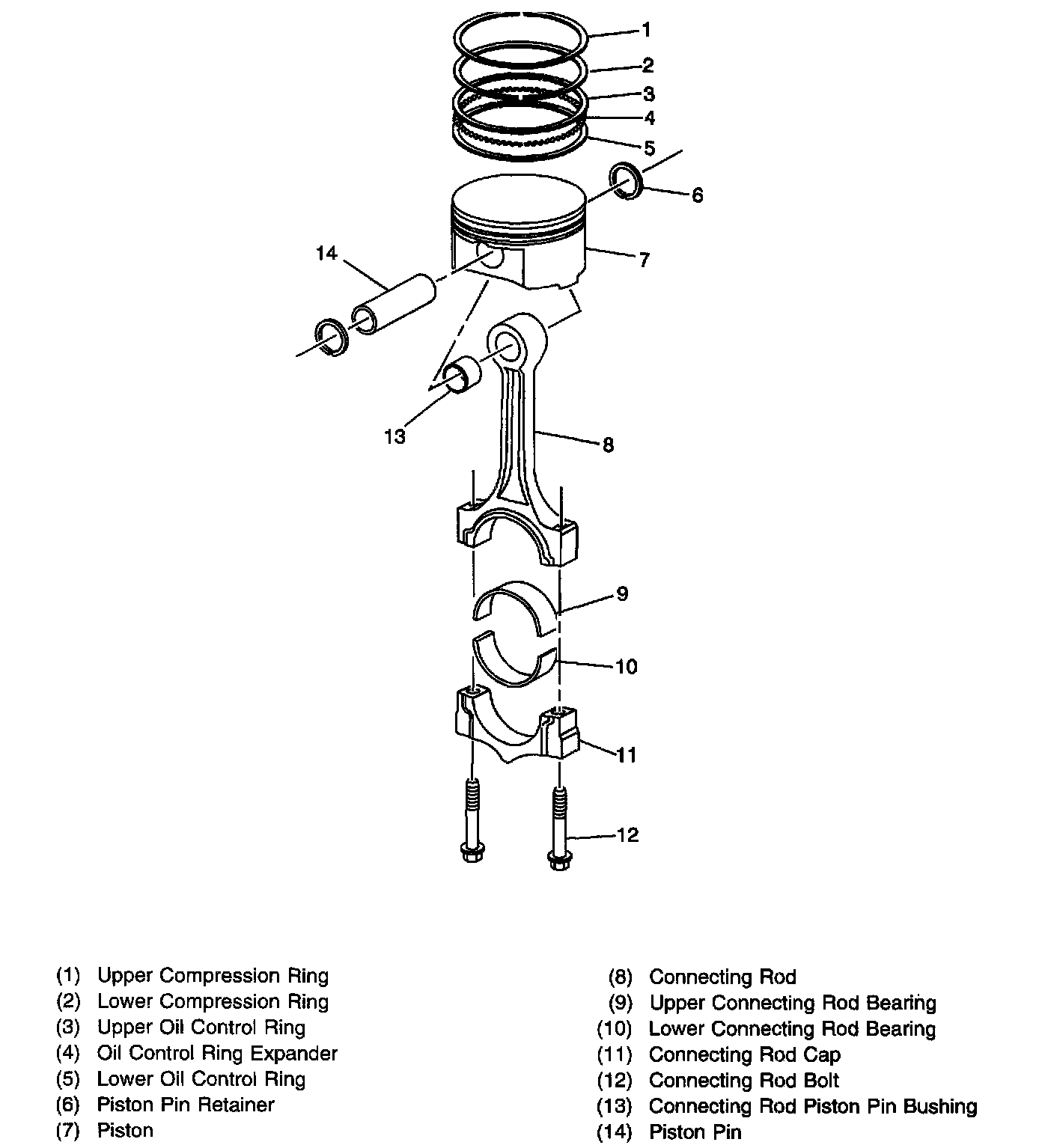

Piston, Rings, Bearing and Connecting Rod

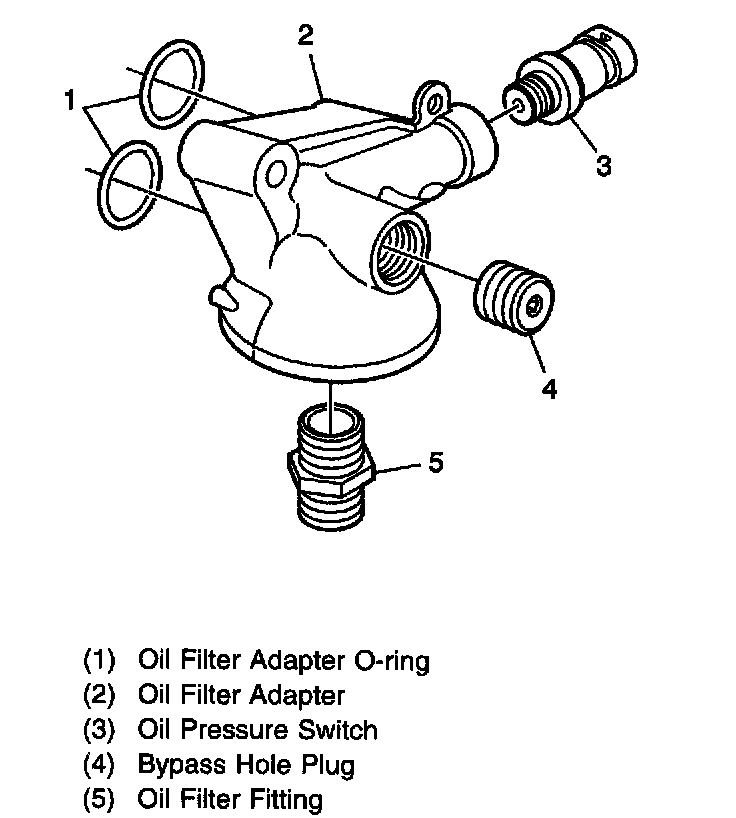

Oil Filter Adapter

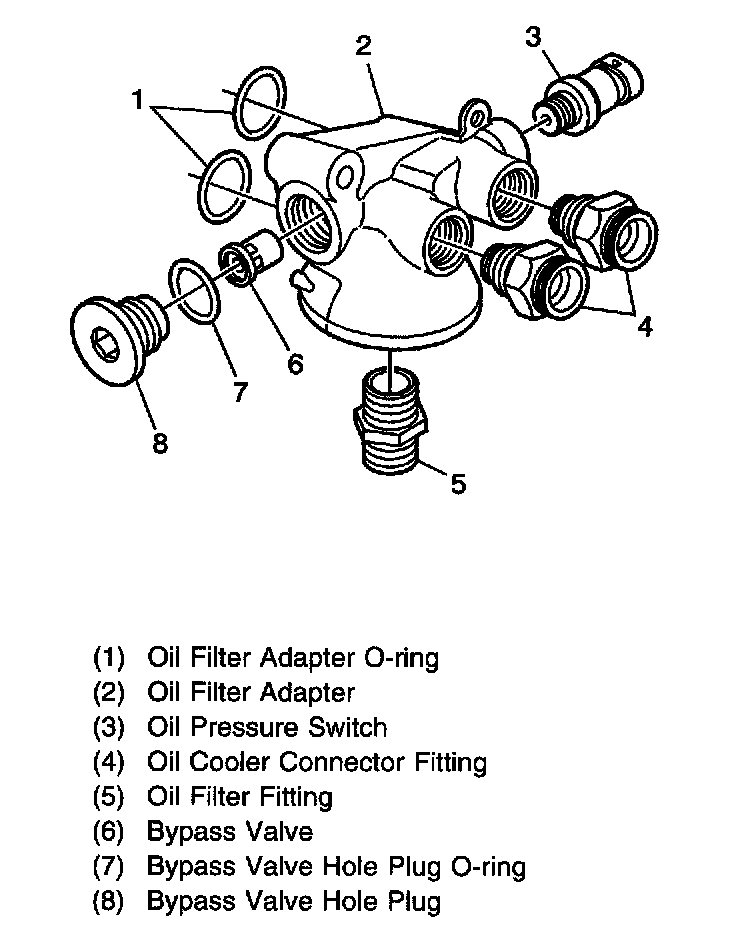

Oil Filter Adapter with Oil Cooler
