Air Injection Pump
Air Injection Pump

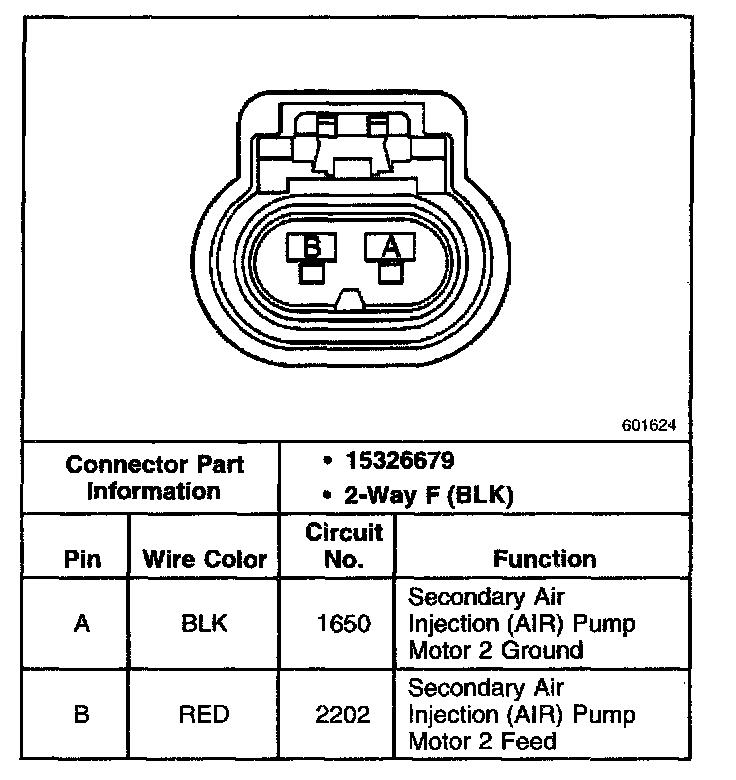

Secondary Air Injection (AIR) Pump Motor 2 (w/NB6):

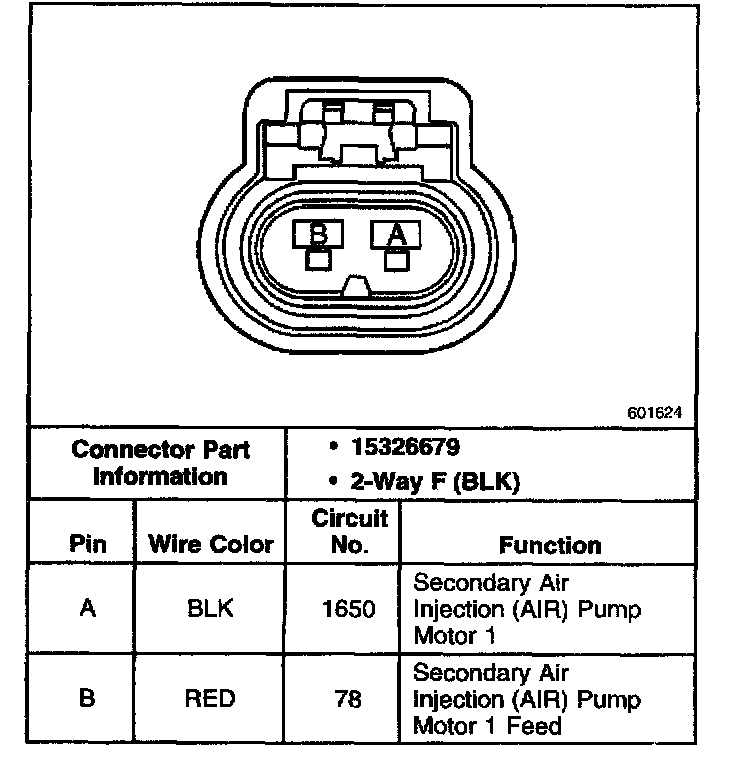

Secondary Air Injection (AIR) Pump Motor 1 (w/NB6):
