Ambient Temperature Sensor / Switch HVAC
>>
LH Inside Air Temperature Sensor
LH Inside Air Temperature Sensor

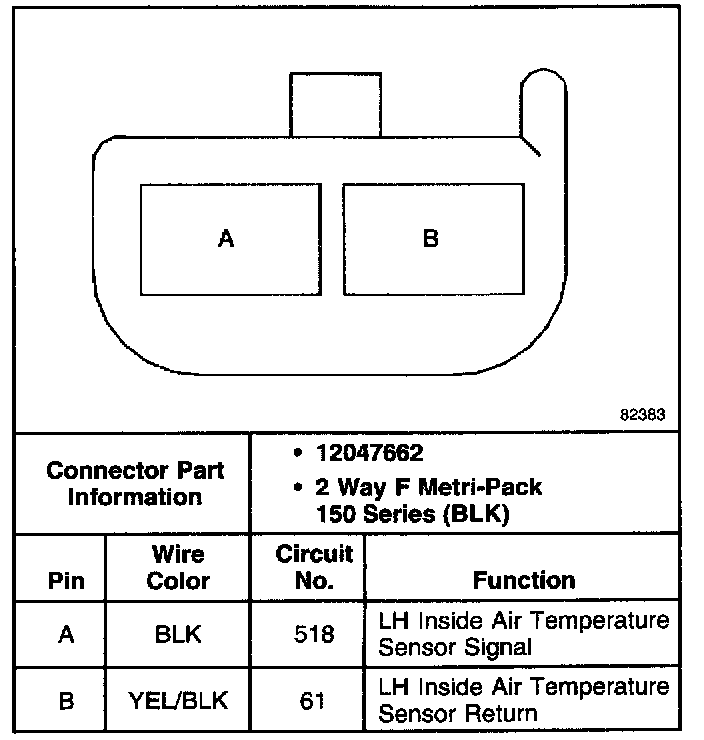

LH Inside Air Temperature Sensor:
