Ambient Temperature Sensor / Switch HVAC
>>
RH Inside Air Temperature Sensor
RH Inside Air Temperature Sensor

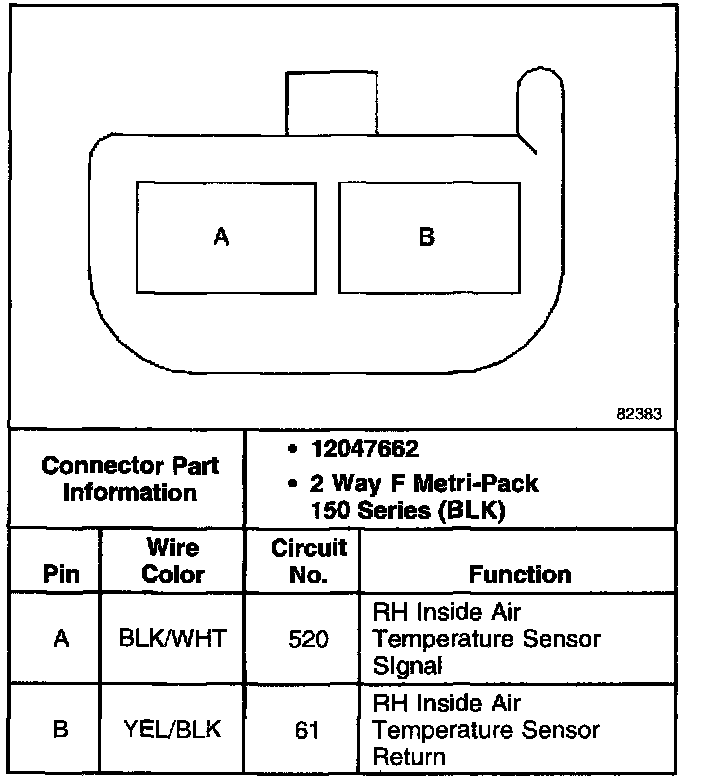

RH Inside Air Temperature Sensor:
