Home
>>
Cadillac
>>
2000
>>
Seville STS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Instrument Cluster / Carrier
>>

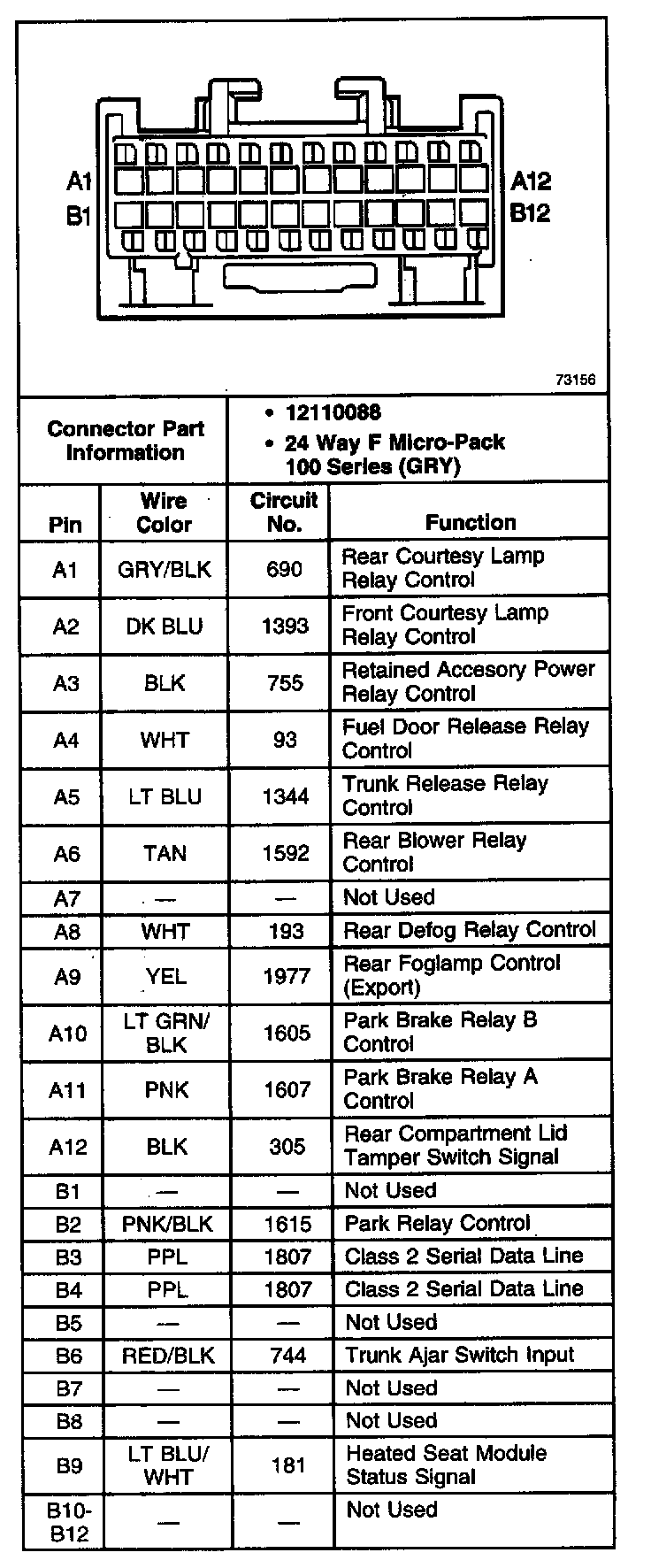

Rear Integration Module (RIM) C2
Rear Integration Module (RIM) C2
Rear Integration Module (RIM) C2:
