Home >> Cadillac >> 2000 >> Seville STS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Module >> SBI

SBI

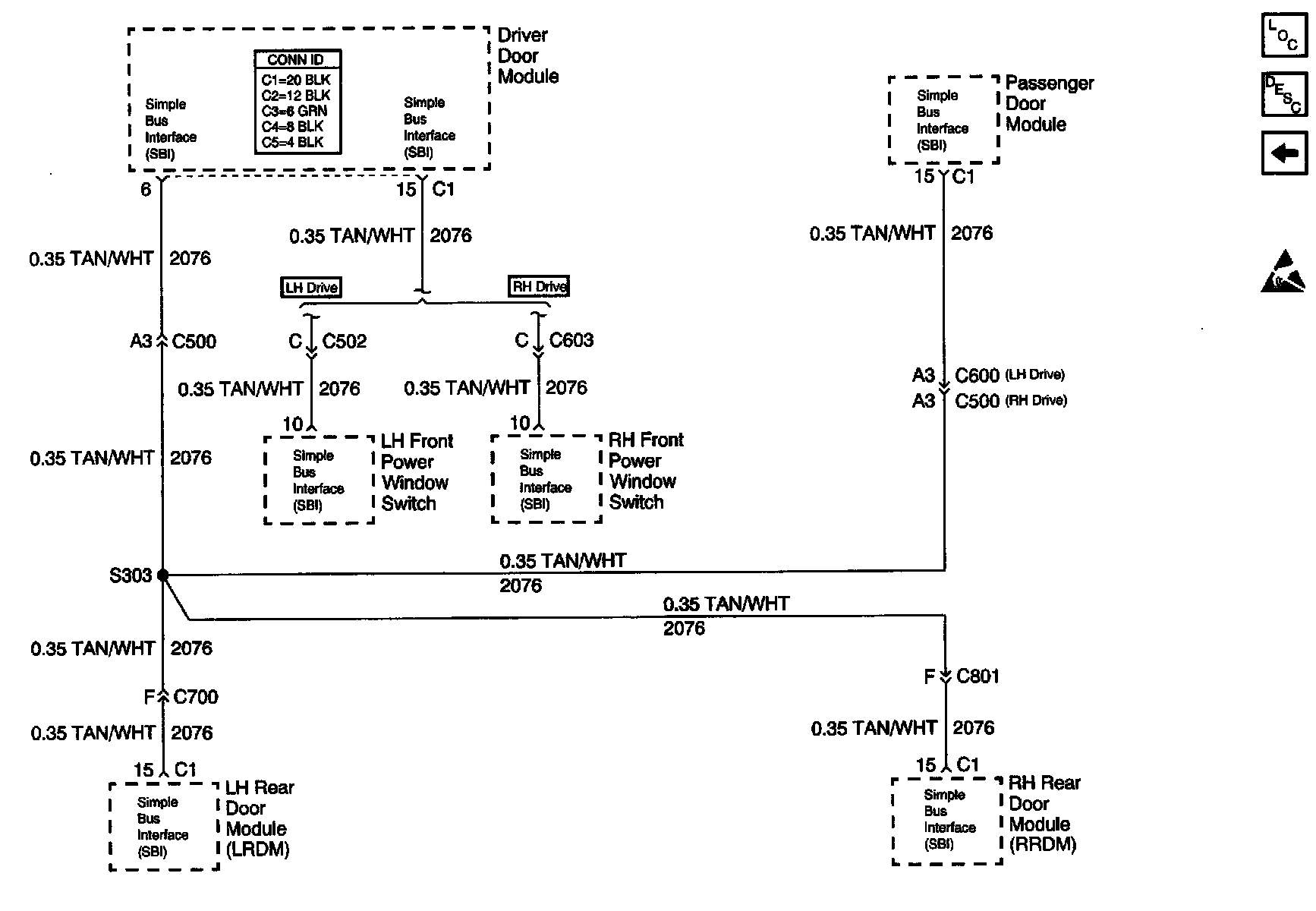

Door Control Module Schematics: SBI:
