Tilt Spring - Assemble

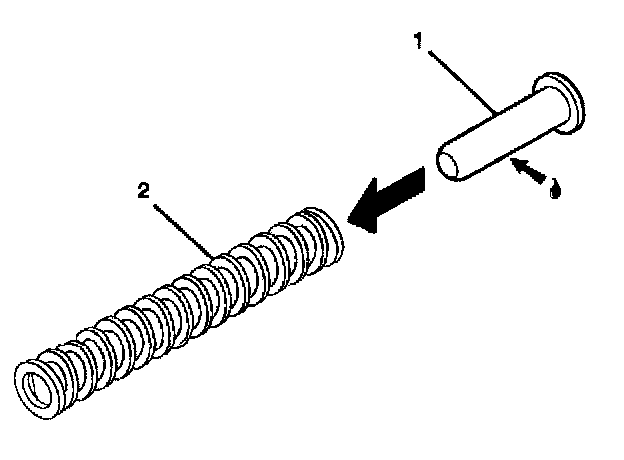

1. Lubricate the spring guide (1) with synthetic grease.
2. Install the spring guide (1) to the tilt spring (2).

Caution: Refer to Tilt Spring Caution in Service Precautions.





3. Install the tilt spring (1).
3.1. Install the tilt spring (1) to the post on the steering column support assembly (2).
3.2. Secure the tilt spring (1) with locking pliers.
3.3. Install the upper and lower trim covers. Refer to Steering Column Trim Covers - Assemble - Off Vehicle.
