Vanity Mirror Replacement - Rear

Vanity Mirror Replacement - Rear

Removal Procedure





1. Open the rear vanity mirror.

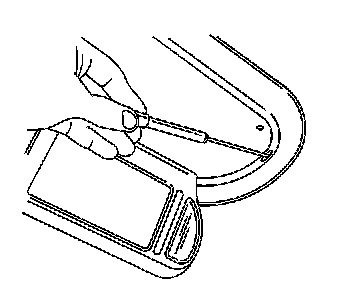

2. Insert a small screwdriver in access holes and release locking tabs.
3. Lower the rear vanity mirror.
4. Disconnect the electrical connectors.
5. Remove the rear vanity mirror.



Installation Procedure

1. Connect the electrical connectors.

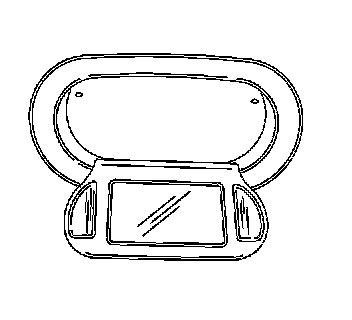

2. Install the rear vanity mirror by engaging the tabs on the front edge and rotating the assembly upward until the locking snaps engage.
