A - Z Master Electrical Component List

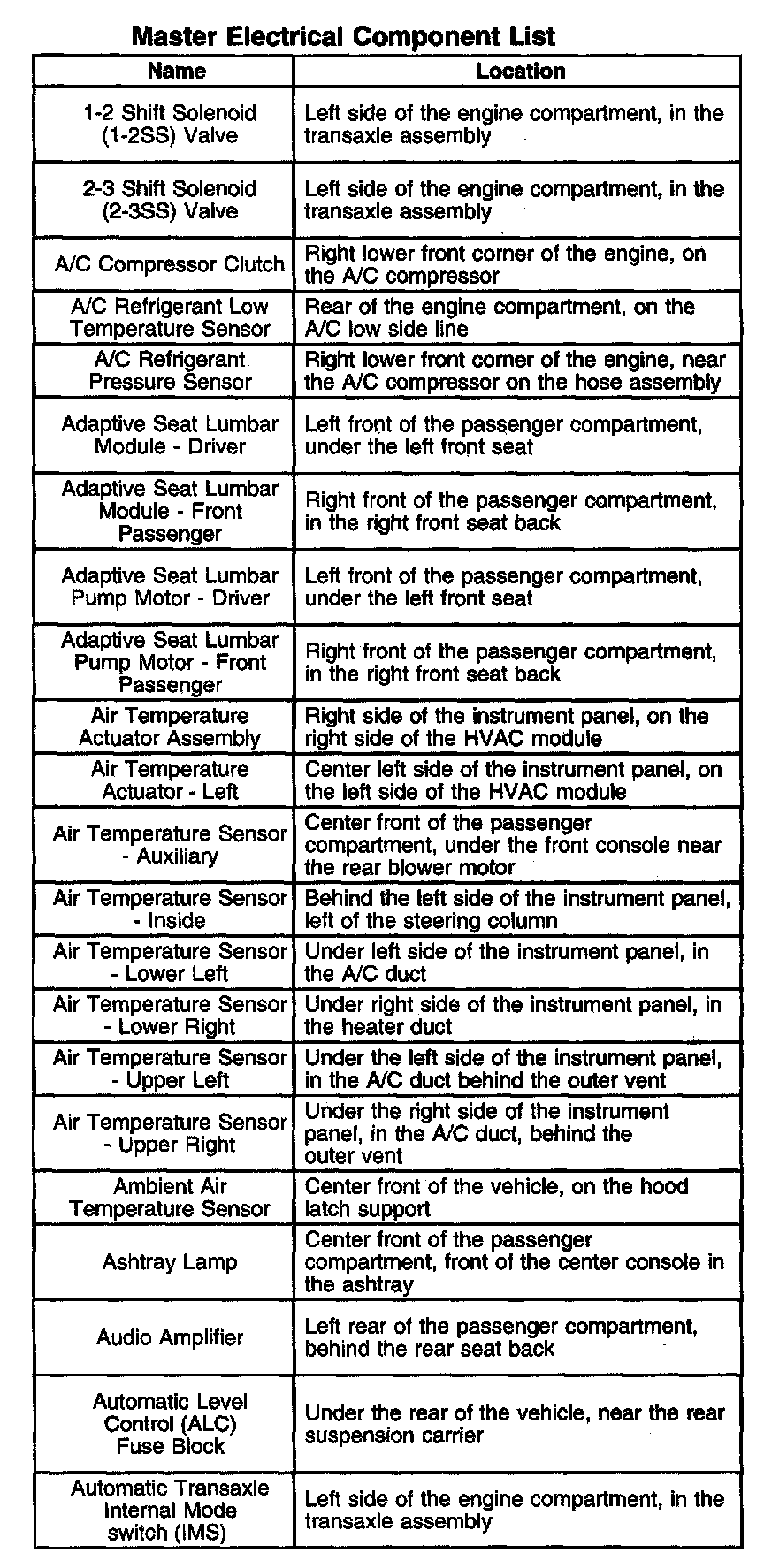

1-2 Shift Solenoid (1-2SS) Valve - Automatic Transaxle Internal Mode Switch (IMS):

Automatic Transaxle Fluid Pressure Manual Valve Position Switch - Cellular Telephone Module (W/UE1, UV8):

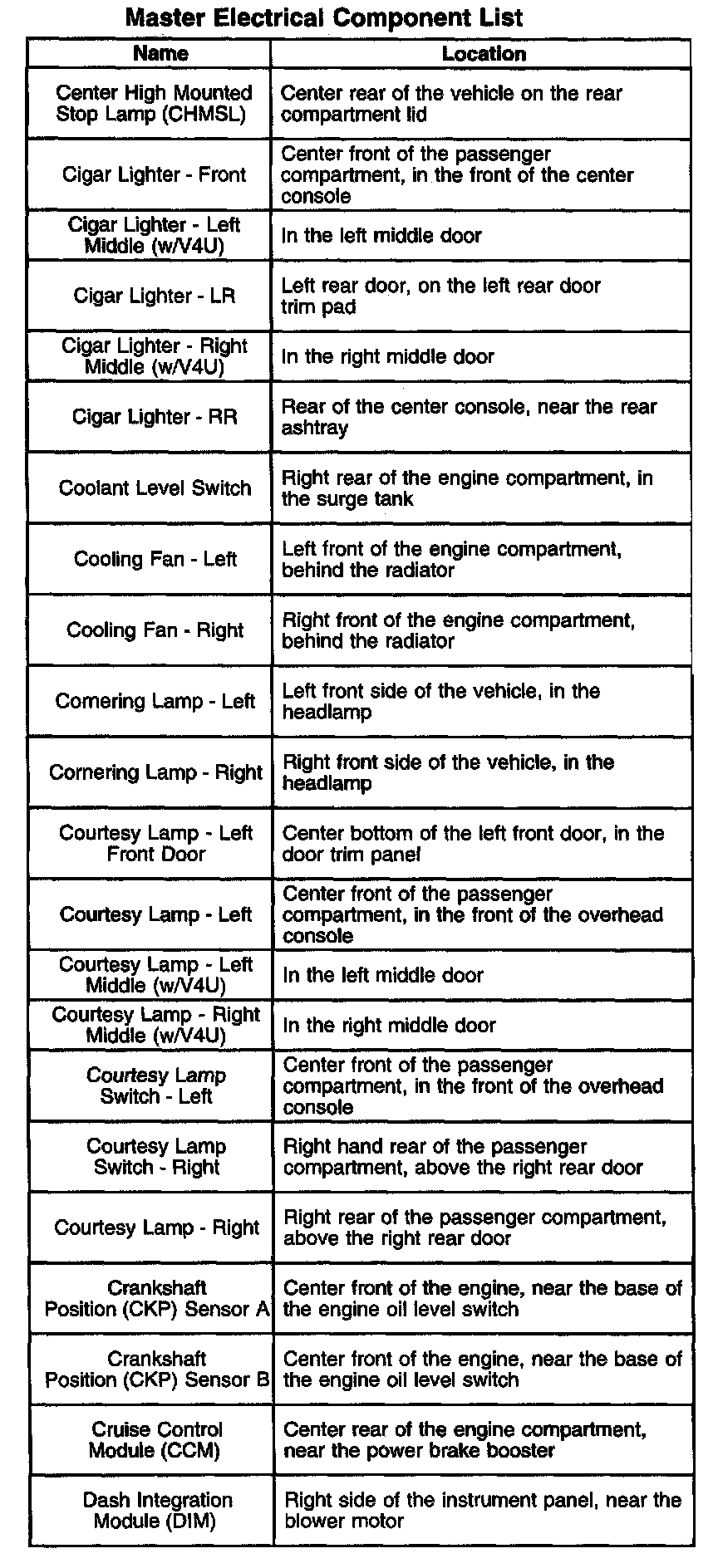

Center High Mounted Stop Lamp (CHMSL) - Dash Integration Module (DIM):

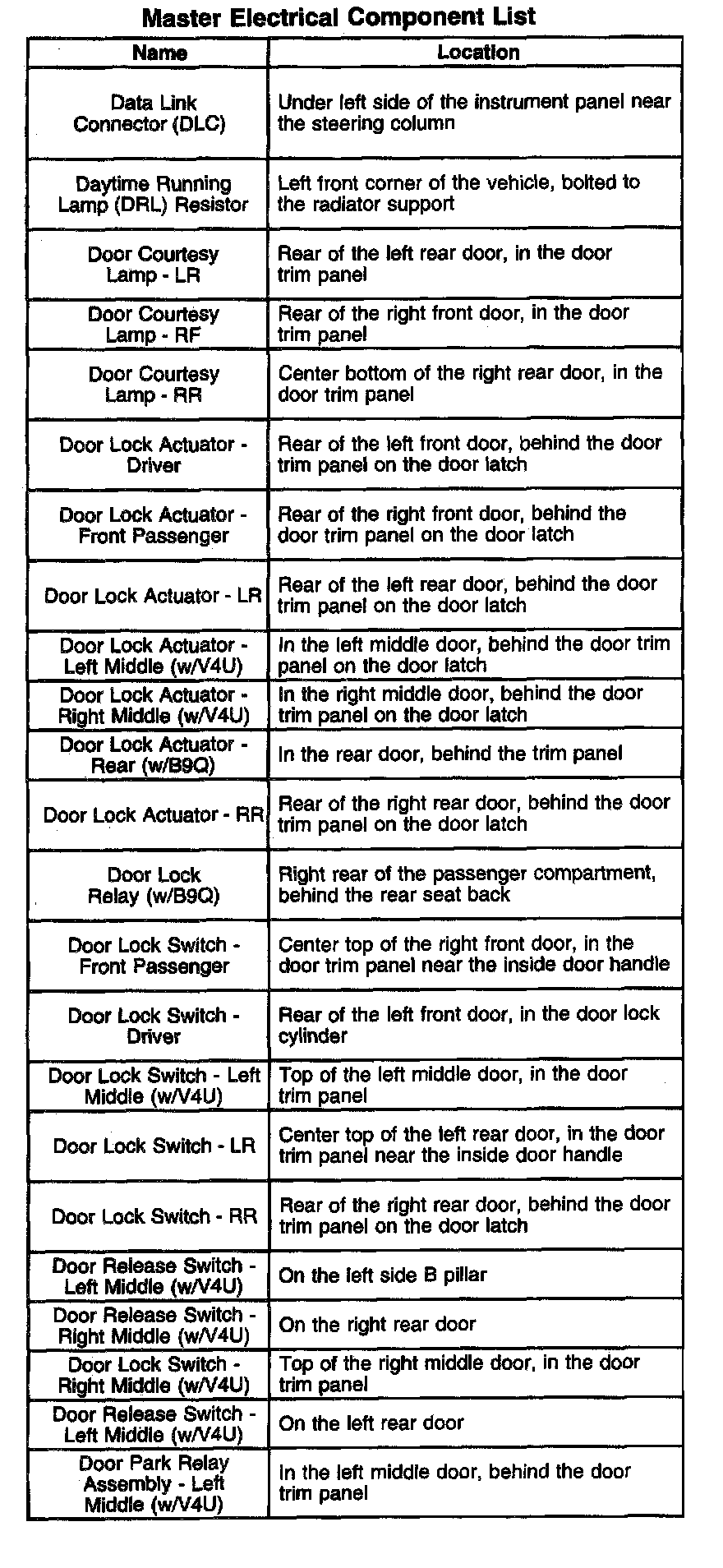

Data Link Connector (DLC) - Door Park Relay Assembly-Left Middle (W/V4U):

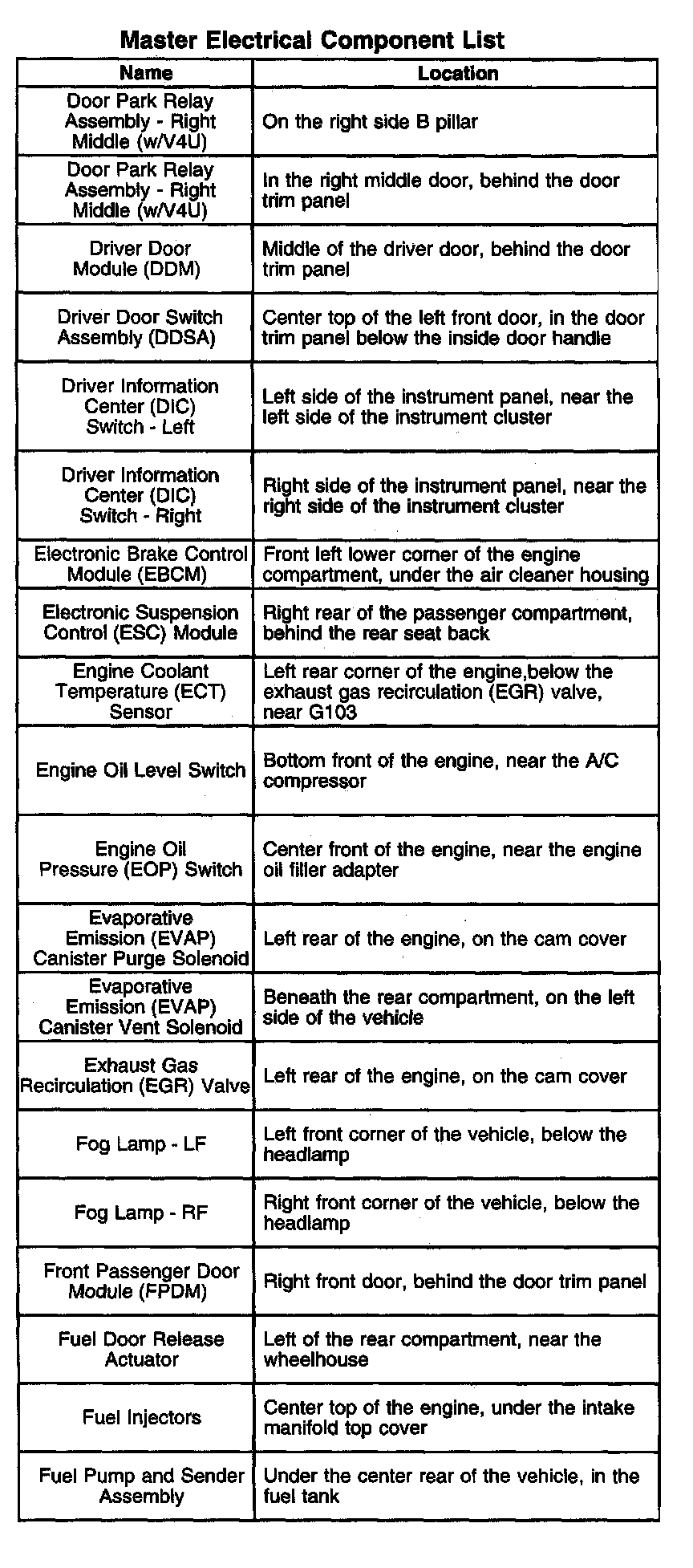

Door Park Relay Assembly-Right Middle (W/V4U) - Fuel Pump and Sender Assembly:

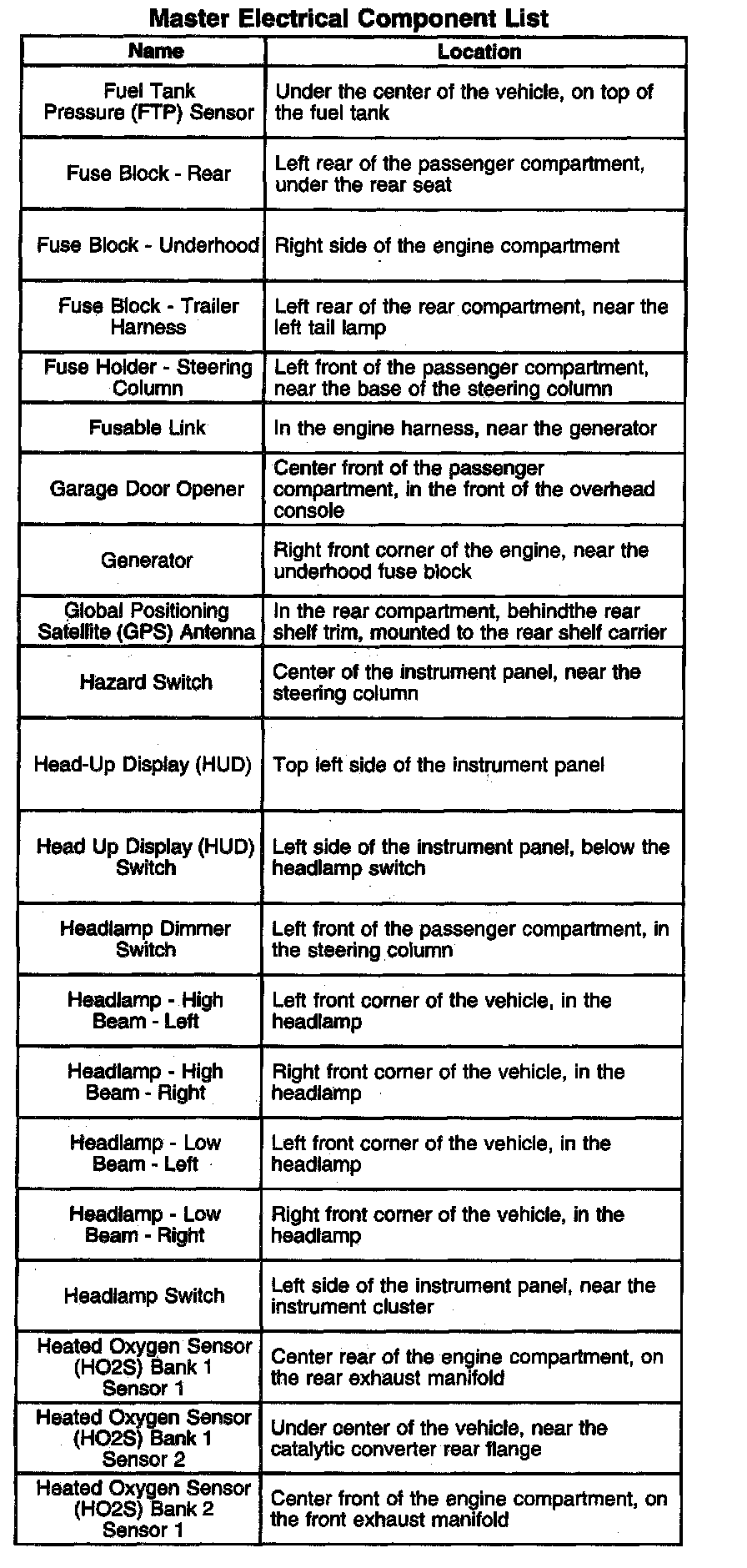

Fuel Tank Pressure (FTP) Sensor - Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1:

Heated Seat Element-Driver Back - Idle Air Control (IAC) Valve:

Inflatable Restraint IP Module - Left Middle Door Module (LMDM) (W/V4U):

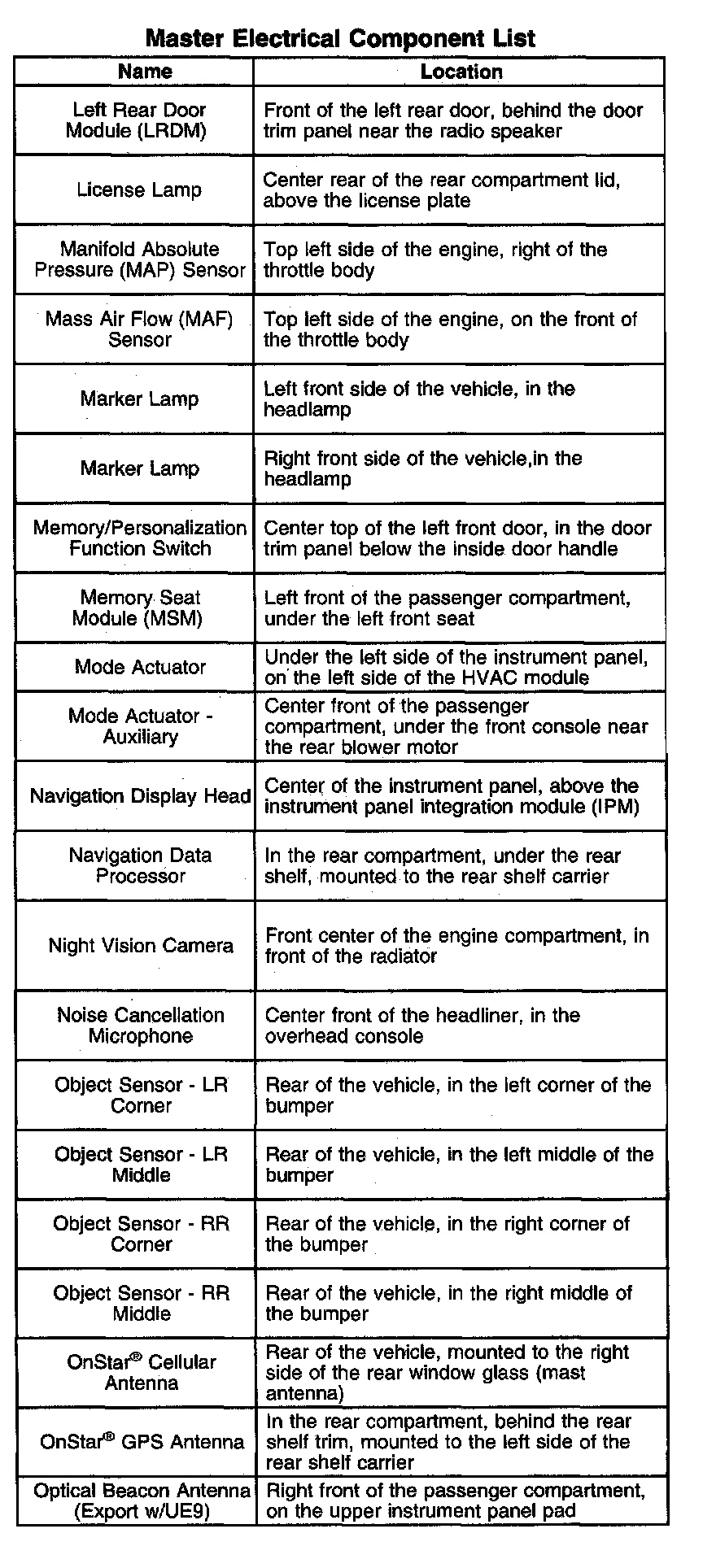

Left Rear Door Module (LRDM) - Optical Beacon Antenna (Export W/UE9):

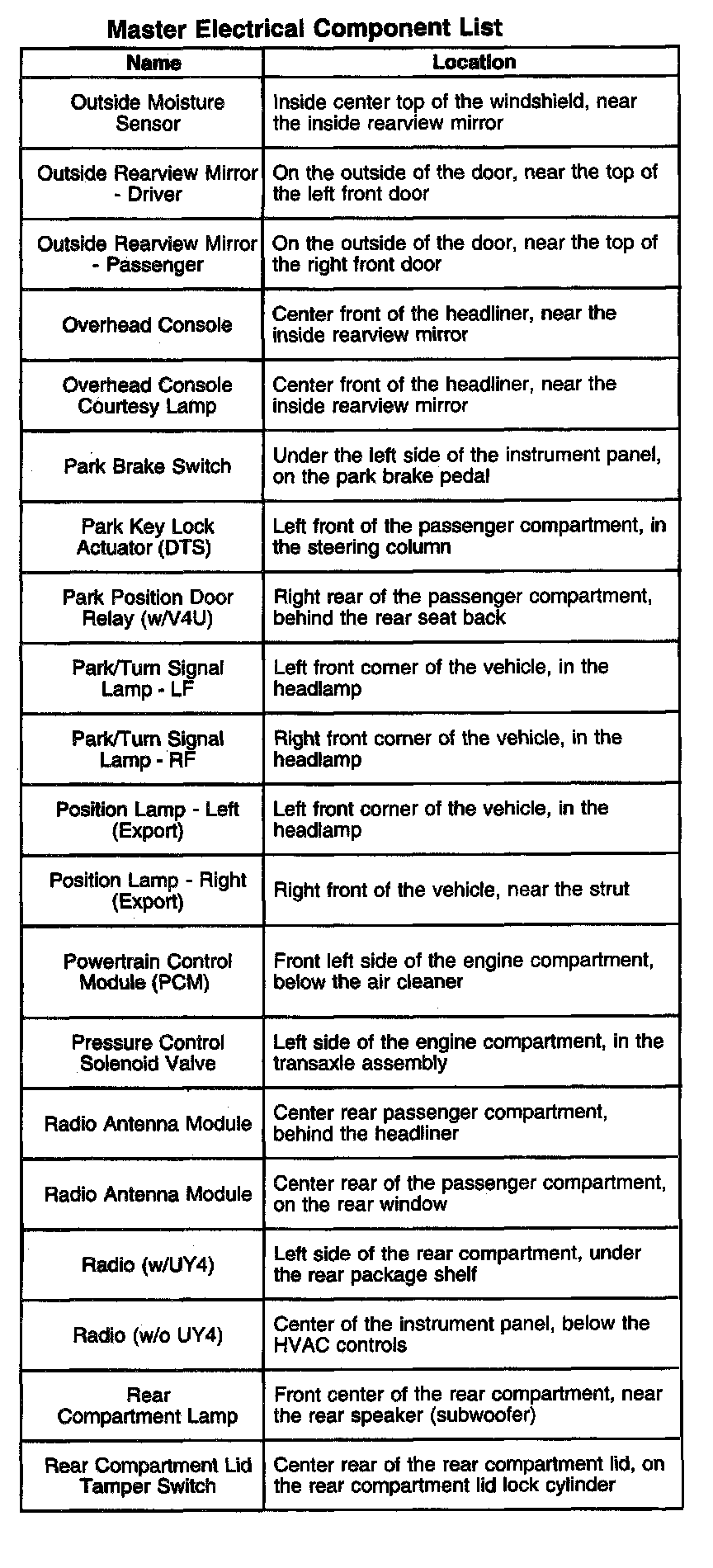

Outside Moisture Sensor - Rear Compartment Lid Tamper Switch:

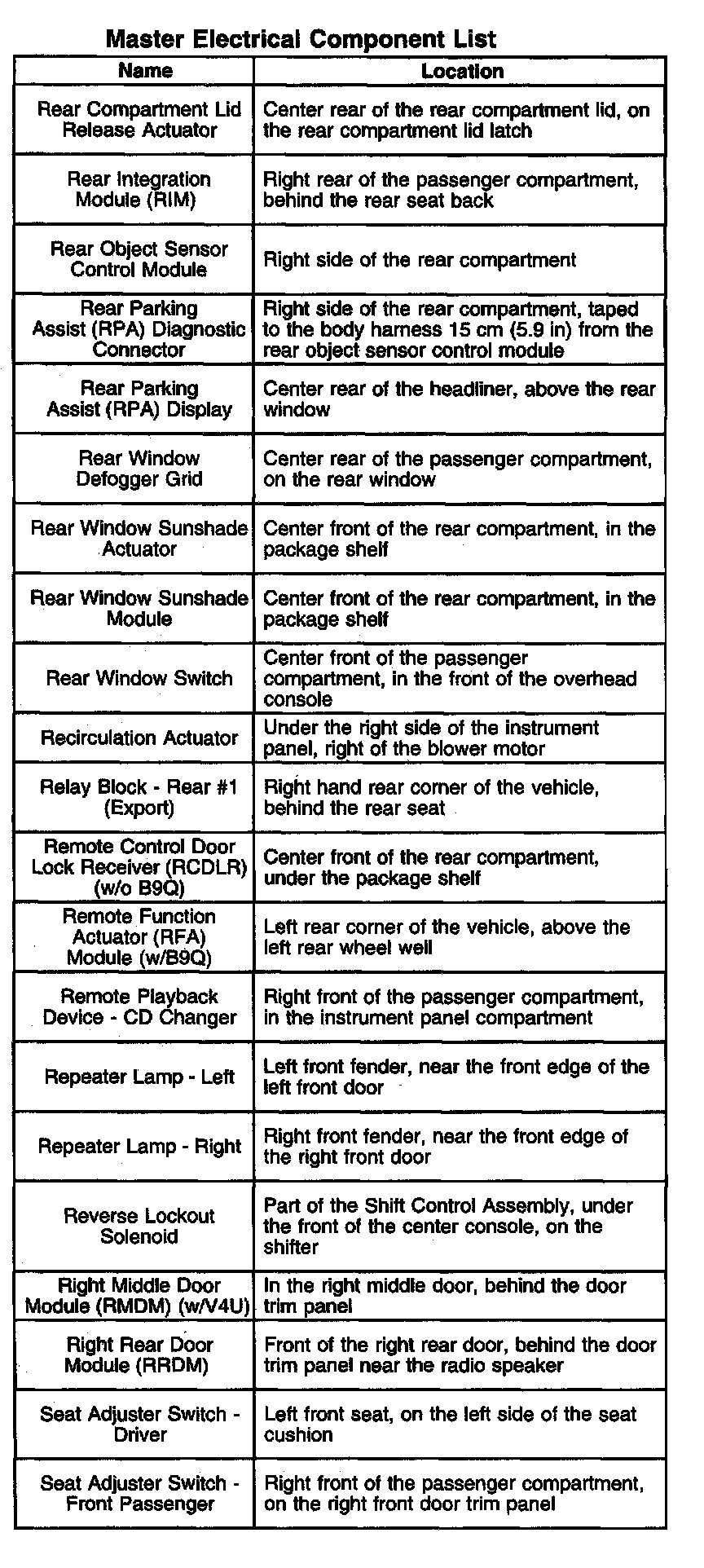

Rear Compartment Lid Release Actuator - Seat Adjuster Switch-Front Passenger:

Seat Belt Switch-LF - Seat Lumbar Vertical Motor-LR:

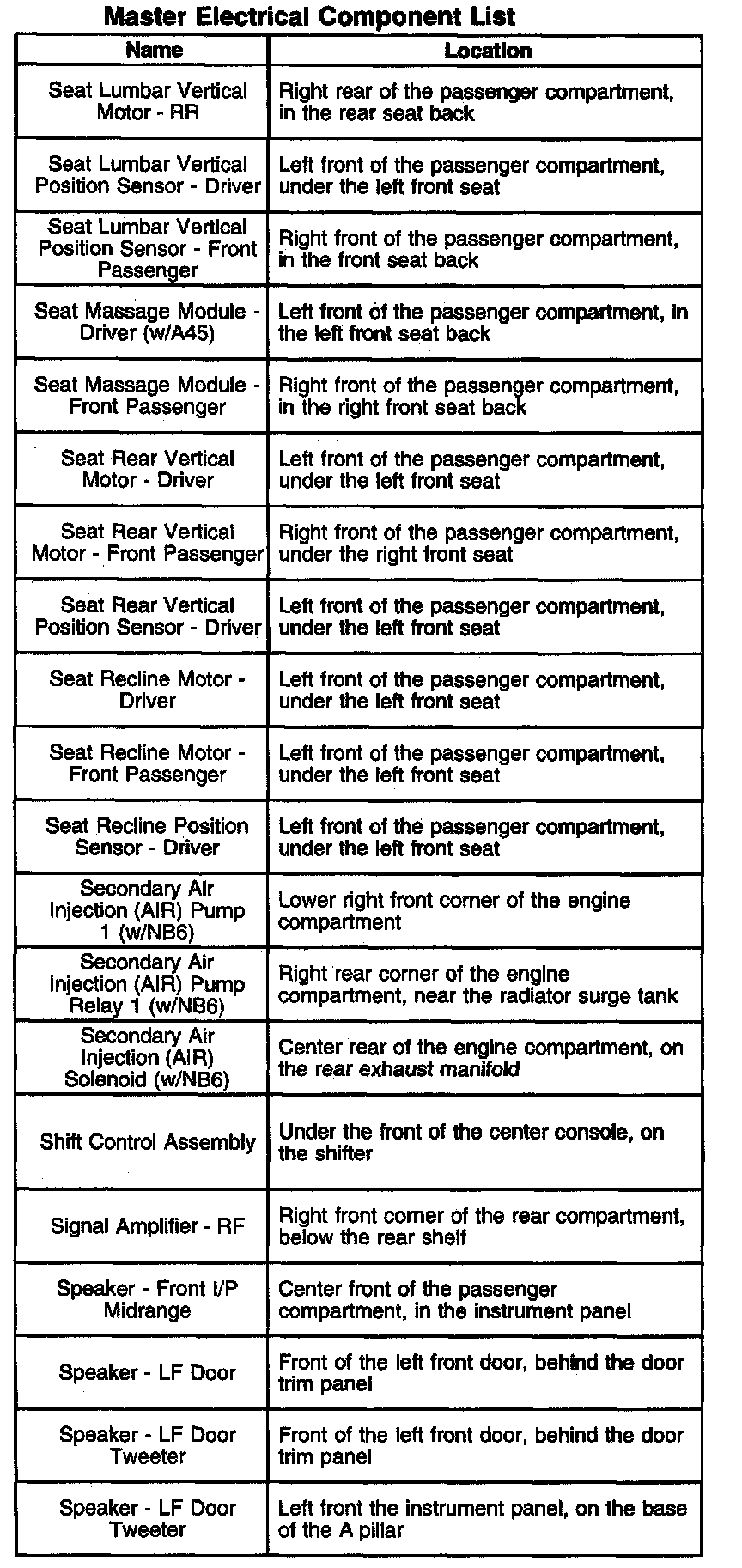

Seat Lumbar Vertical Motor-RR - Speaker-LF Door Tweeter:

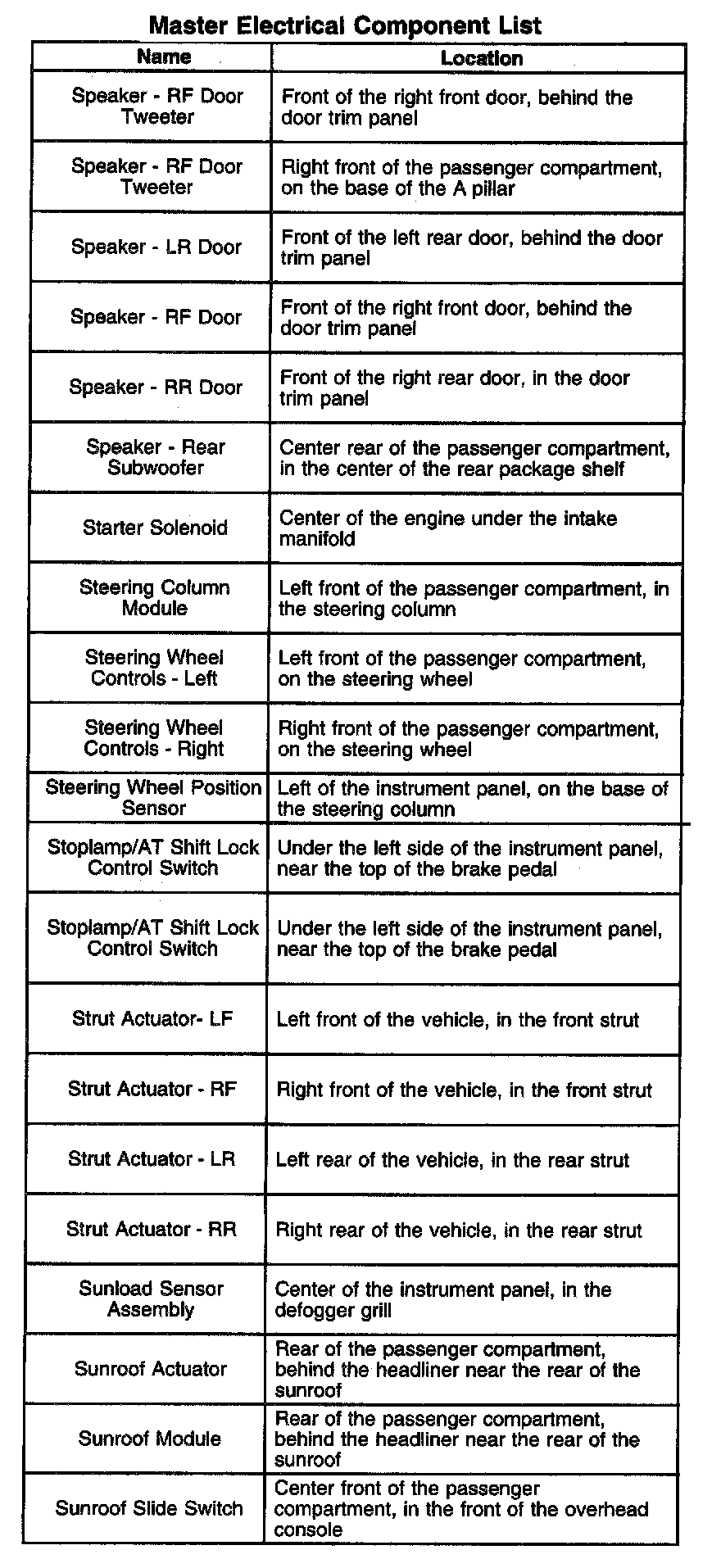

Speaker-RF Door Tweeter - Sunroof Slide Switch:

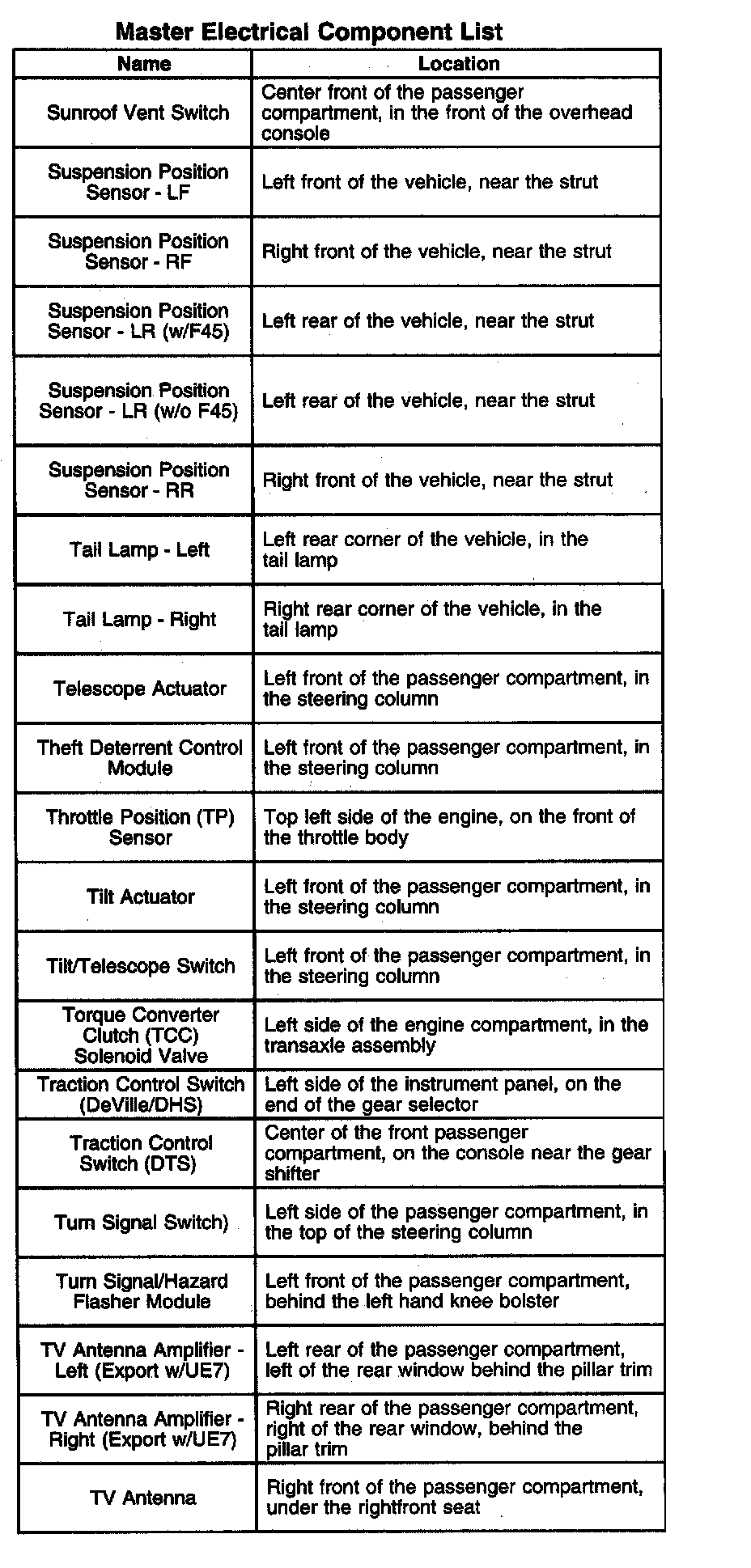

Sunroof Vent Switch - TV Antenna:

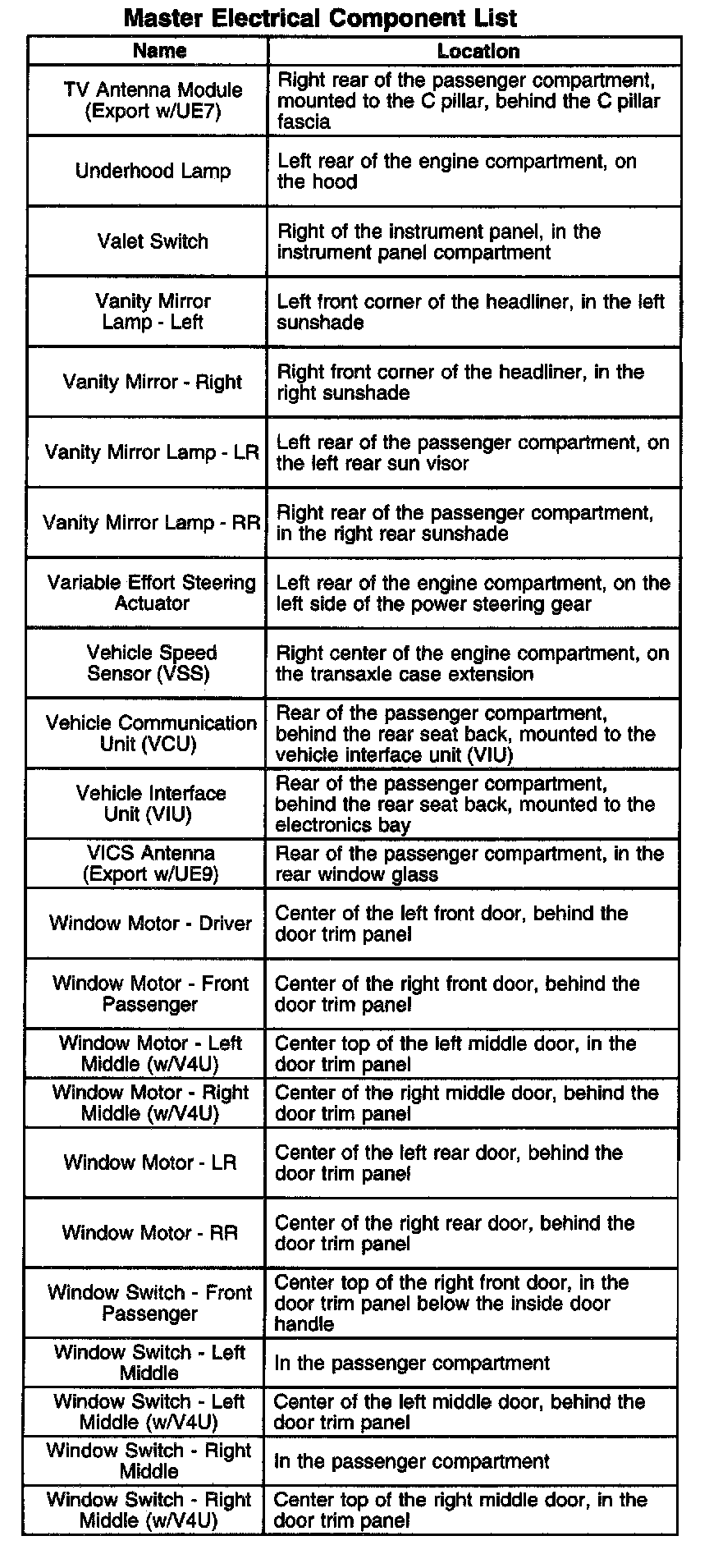

TV Antenna Module (Export W/UE7) - Window Switch-Right Middle (W/V4U):

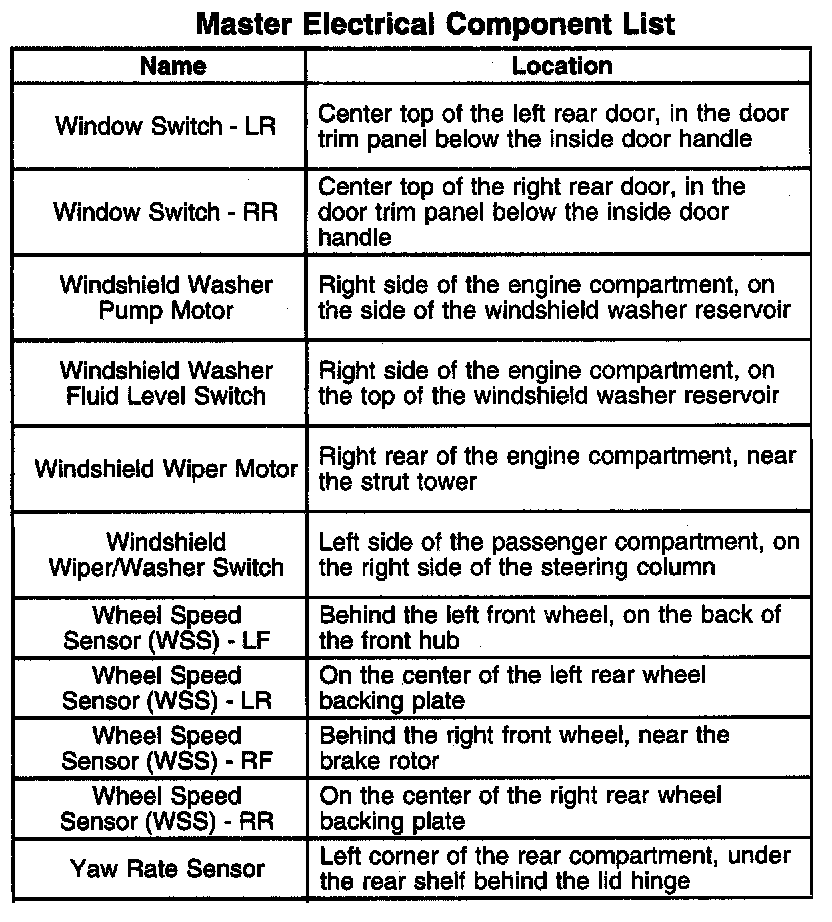

Window Switch-LR - Yaw Rate Sensor:

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
