Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2002
>>
DeVille DHS V8-4.6L VIN Y
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Automatic Transmission/Transaxle
>>

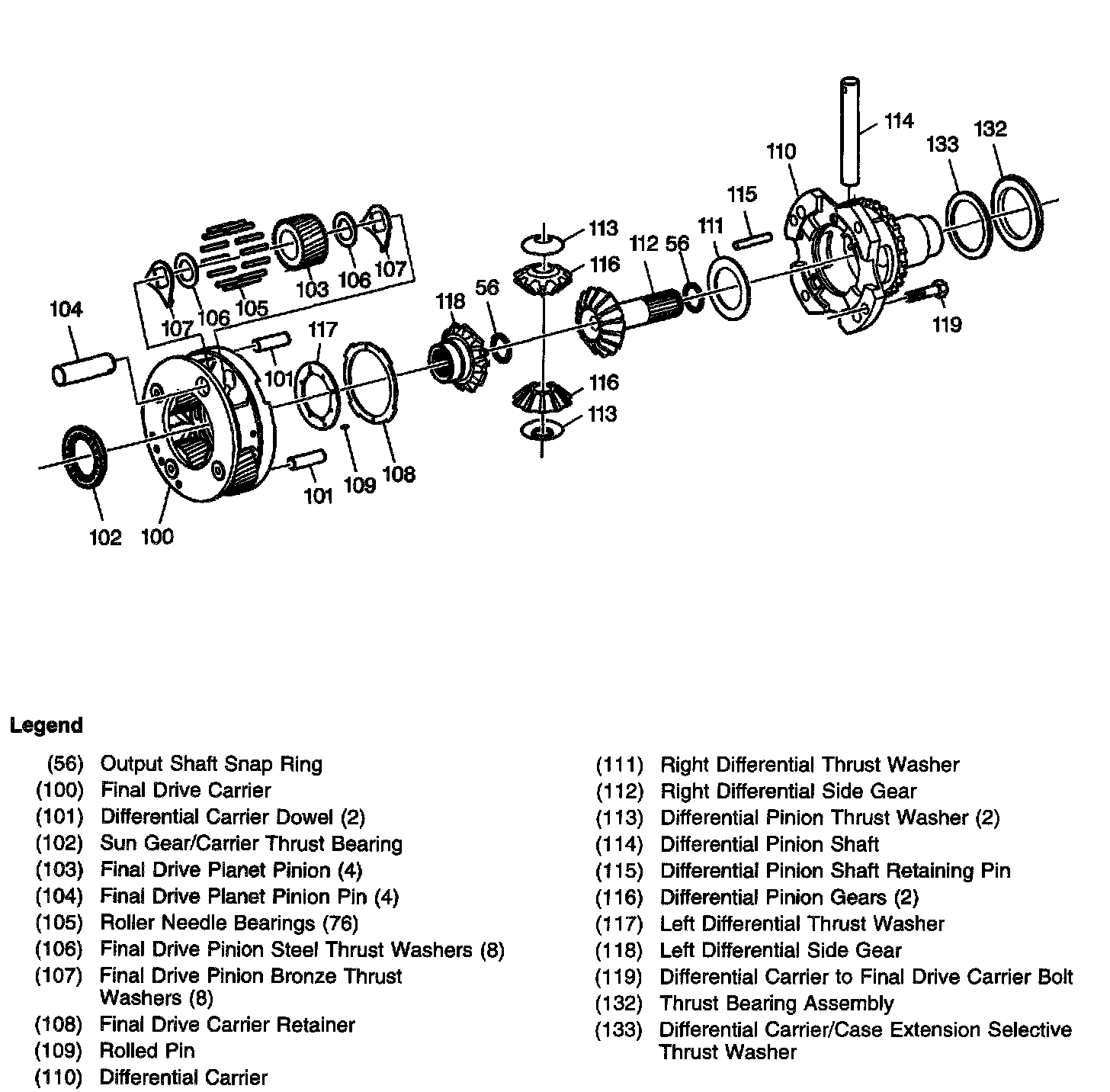

Final Drive Assembly
Final Drive Assembly
