1. Drive Belt Removal

Drive Belt Removal

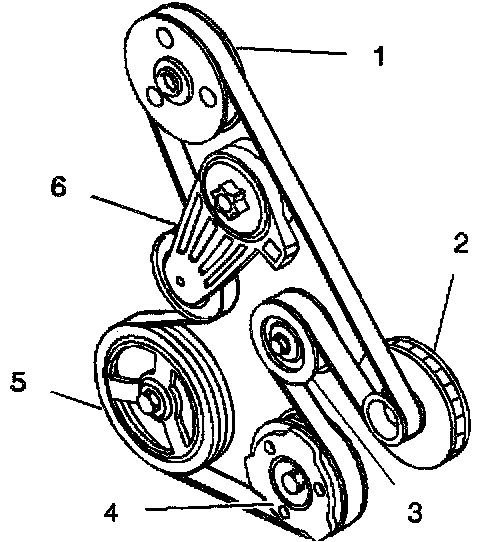

1. Insert a 1/2-inch drive ratchet in the drive belt tensioner (6).
2. Rotate the drive belt tensioner clockwise in order to release the belt tension.
3. Remove the drive belt from the power steering pulley (1).
4. Slowly return the drive belt tensioner to its original position.
5. Remove the drive belt from the remaining pulleys (2-5).
