114. Oil Level Indicator and Tube Installation

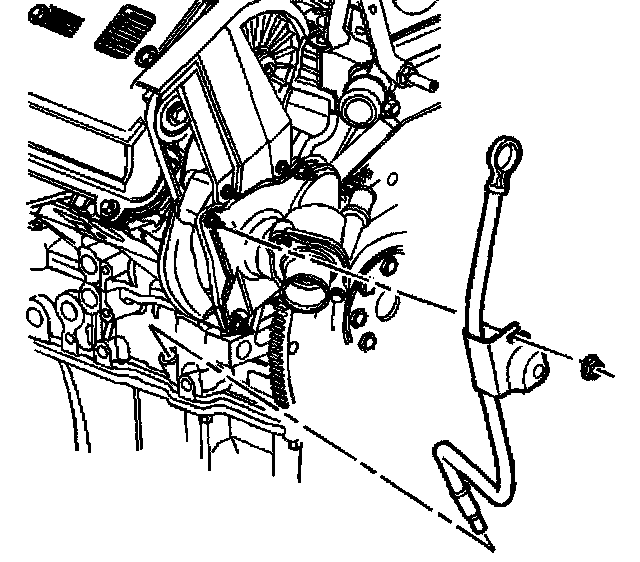

Oil Level Indicator and Tube Installation





1. Install the NEW O-ring on the oil level indicator tube.
2. Install the oil level indicator tube.

Notice: Refer to Fastener Notice in Service Precautions.

3. Install the oil level indicator tube nut.
^ Tighten the oil level indicator tube nut to 10 Nm (89 lb in).
