120. Air Conditioning Compressor Installation
Air Conditioning (A/C) Compressor InstallationNotice: Refer to Fastener Notice in Service Precautions.

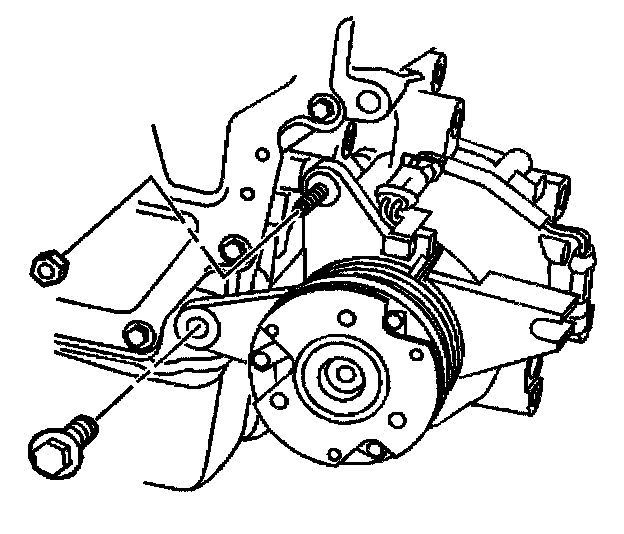

1. Install the air conditioning compressor stud.
^ Tighten the air conditioning compressor stud to 25 Nm (18 lb ft).
2. Slide the air conditioning compressor over the air conditioning compressor stud and hold into position.
3. Install the air conditioning compressor side bolts finger tight.
4. Install the air conditioning compressor front bolt and nut finger tight.
5. Tighten the air conditioning compressor bolts and nut in the following sequence:
5.1. Tighten the air conditioning compressor front nut to 50 Nm (37 lb ft).
5.2. Tighten the air conditioning compressor front bolt to 50 Nm (37 lb ft).
5.3. Tighten the air conditioning compressor side upper bolt to 50 Nm (37 lb ft).
5.4. Tighten the air conditioning compressor side lower bolt to 25 Nm (18 lb ft).
