83. Piston, Connecting Rod, and Bearing Installation
Piston, Connecting Rod, and Bearing Installation^ Tools Required
- J 29789 Piston Ring Compressor
- J 39946 Crankshaft Socket - 4.0 L and 4.6 L
- J 36660-A Torque Angle Meter
Piston and Connecting Rod Assembly Procedure
1. Rotate the crankshaft using the J 39946 in order to align the crankshaft connecting rod journal being serviced to BDC.
2. Liberally lubricate the cylinder walls, piston rings and piston skirts with clean engine oil.
Important: Connecting rod bearings that have been used in a running engine, must be replaced with NEW connecting rod bearings for reassembly.
3. Select the correctly numbered piston/connecting rod assembly for the cylinder. An arrow showing proper piston orientation is located on the top of the piston.
4. Compress the piston rings using the J 29789 or equivalent.
Important: Extreme care must be exercised when installing the piston and connecting rod in order to be sure the rod does not scrape or nick the cylinder bore or the crankshaft surfaces.
5. Using both hands, slowly guide the piston and connecting rod assembly into the cylinder from the top and bottom of the cylinder. DO NOT allow the connecting rod to contact the cylinder wall.
6. When the piston ring compressor contacts the deck surface, gently tap the piston into the cylinder using the handle end of a dead-blow hammer. Guide the connecting rod onto the crankshaft bearing journal while taping the piston into the cylinder.
Connecting Rod Bearing Clearance Measurement Procedure
Important: Connecting rod bearings that have been used in a running engine, must be replaced with NEW connecting rod bearings for reassembly.
1. Before final assembly it is important to check the clearance of the new connecting rod bearings.
2. Place a length of fresh, room temperature plastic gaging material all the way across all the connecting rod bearing journal.

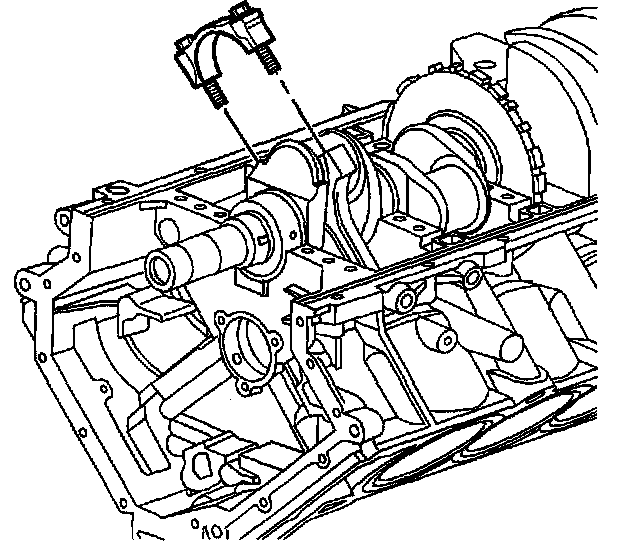

3. Install the connecting rod end cap on its original connecting rod making sure the bearing lock tangs are aligned on the same side of the rod.

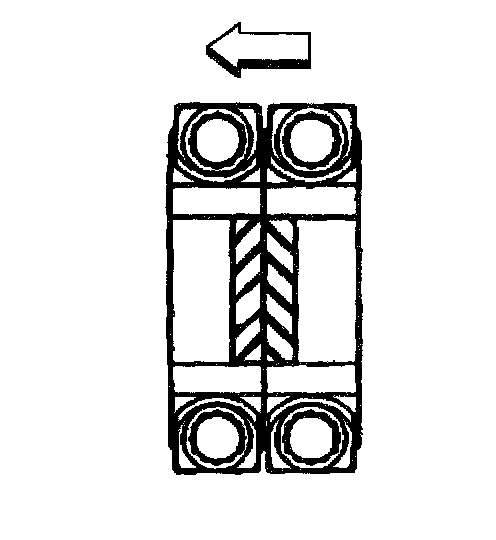

4. When properly installed, the connecting rod bearing cap notches should be paired, as shown, on the crankpin.
Notice: Refer to Fastener Notice in Service Precautions.
Important: Reuse the old connecting rod bolts ONLY for measuring the connecting rod bearing clearance.
5. Lubricate connecting rod bolts with engine oil and install in the connecting rod.
^ Tighten the connecting rod bolts to 30 Nm (22 lb ft).
6. Loosen the connecting rod bolts until the torque reading is zero.
7. Re-tighten the connecting rod bolts.
7.1. First Pass
^ Tighten the connecting rod bolts to 25 Nm (18 lb ft).
7.2. Final Pass
^ Tighten the connecting rod bolts an additional 110° using the J 36660-A.
8. Allow the assembly to sit for at least 2 minutes.
9. Remove the connecting rod cap bolts.
10. Remove the connecting rod cap.

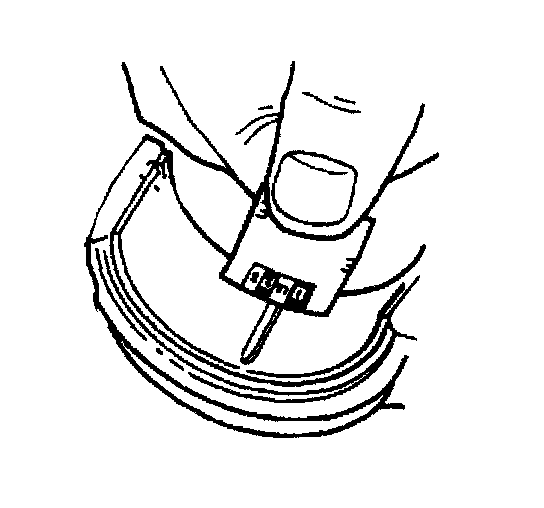

11. Determine the connecting rod bearing clearance by comparing the width of the flattened plastic gaging material at its widest point with the graduation on the gauging material container.
12. Compare the measurements with the engine mechanical specifications.
13. If the new bearings do not provide the proper crankshaft to bearing clearance, re-measure the crankshaft journals for the correct specified size and check to make sure you have the correct new bearings. If the crankshaft journals are incorrectly sized, replace the crankshaft. No crankshaft machining is permitted and undersized bearings are not available.
14. Clean the plastic gaging material from the connecting rod bearing and crankshaft connecting rod bearing journal using a soft lint-free cloth.
Connecting Rod Final Assembly Procedure
1. Back the connecting rod away from the crankshaft in order to allow for lubricant application.
2. Coat the crankshaft connecting rod bearing journal and installed connecting rod bearings with GM crankshaft prelube GM P/N United States 1052367, GM P/N Canada 992869, or equivalent.

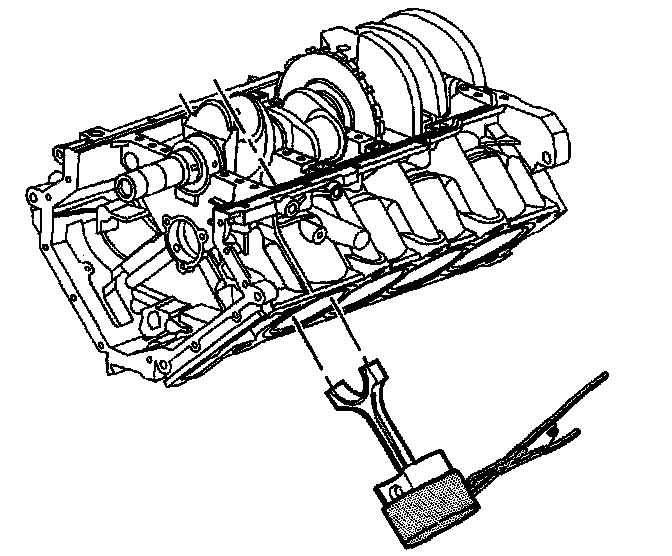

3. Guide the connecting rod onto the crankshaft connecting rod bearing journal.
4. Install the connecting rod end cap on its original connecting rod making sure the bearing lock tangs are aligned on the same side of the rod.

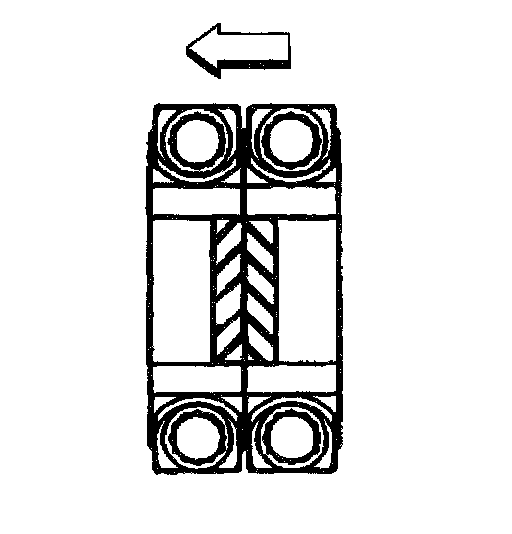

5. When properly installed, the connecting rod bearing cap notches should be paired, as shown on the crankpin.
Notice: Refer to Fastener Notice in Service Precautions.
Important: DO NOT reuse the old connecting rod bolts.
6. Lubricate the NEW connecting rod bolts with engine oil and install in the connecting rod.
^ Tighten the NEW connecting rod bolts to 30 Nm (22 lb ft).
7. Loosen the connecting rod bolts until the torque reading is zero.
8. Re-tighten the connecting rod bolts.
8.1. First Pass
^ Tighten the connecting rod bolts to 25 Nm (18 lb ft).
8.2. Final Pass
^ Tighten the connecting rod bolts an additional 110° using the J 36660-A.

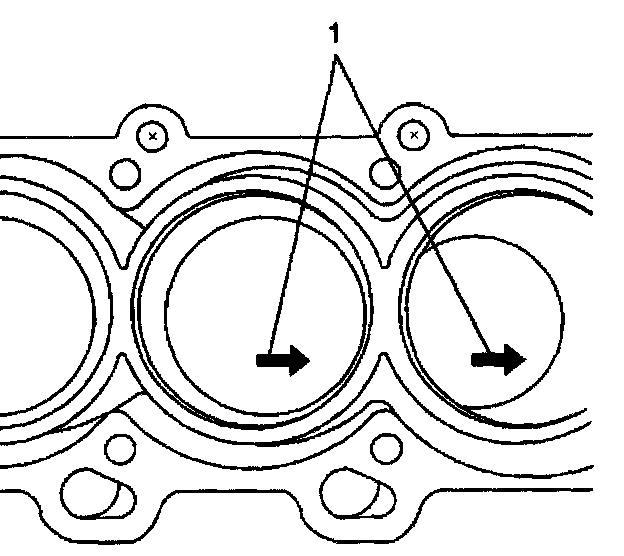

9. During and after installation, check to make sure each piston is positioned properly in the correct cylinder. The locating arrow on the top each piston (1) must be pointing toward the front of the engine.
10. Repeat these procedures for the piston/connecting rod assembly that is using the common crankshaft connecting rod journal.
11. Measure the connecting rod side clearance between the two connecting rods that share the common crankshaft connecting rod journal.
12. Compare the measurements with the engine mechanical specifications.
13. If the connecting rods do not provide the proper crankshaft side clearance inspect for the following conditions:
^ If the clearance is too tight, ensure the connecting rods are not binding and can slide parallel to the crankpin. Re-measure the connecting rod widths for the correct specified size. If the connecting rods are incorrectly sized, replace the connecting rods.
^ If the clearance is too loose, re-measure the connecting rod widths for the correct specified size. If the connecting rods are incorrectly sized, replace the connecting rods.
14. Repeat these procedures for the remaining piston/connecting rod assemblies using the -139946 in order to rotate the crankshaft.
