Thread Repair Specifications
>>

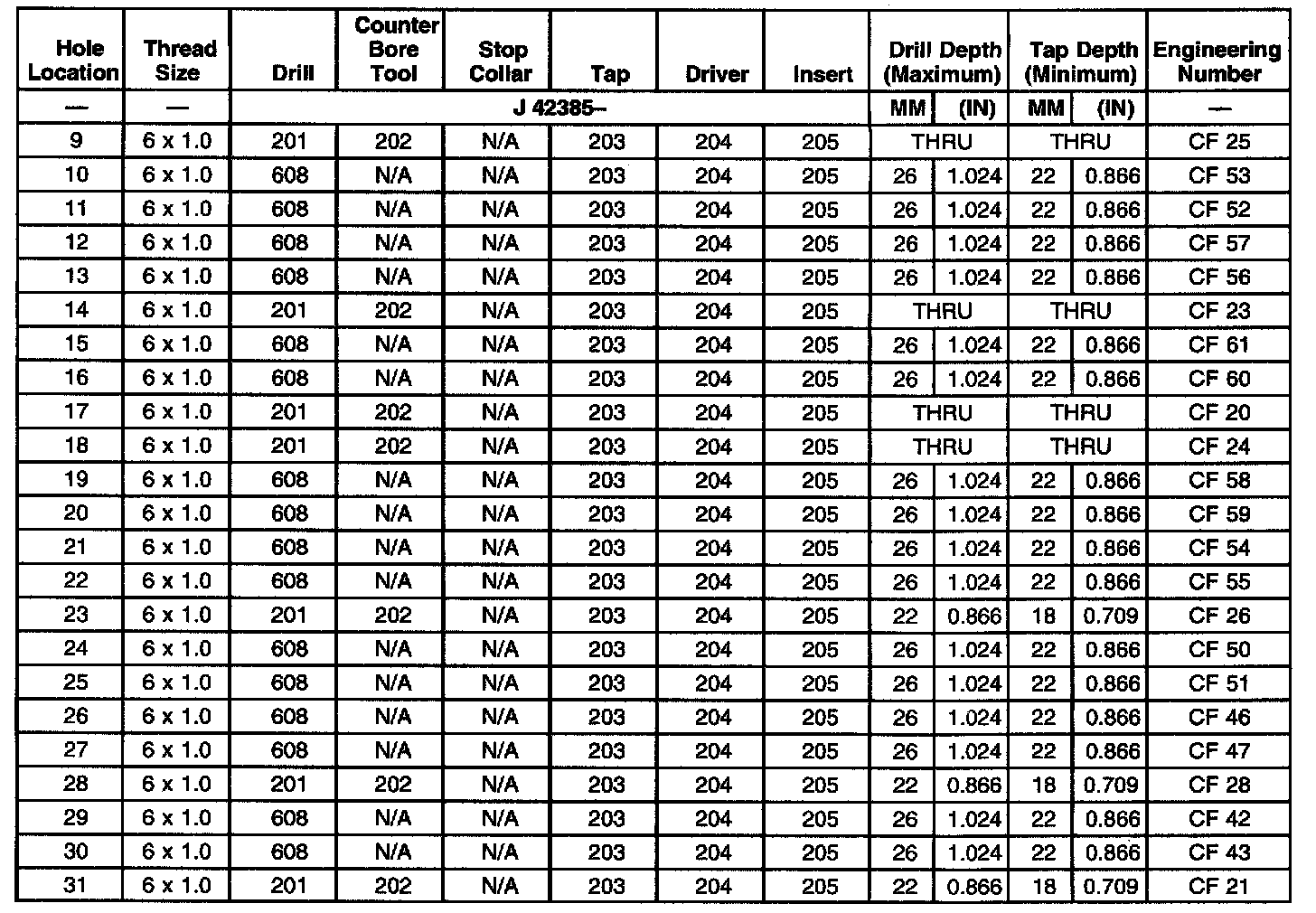

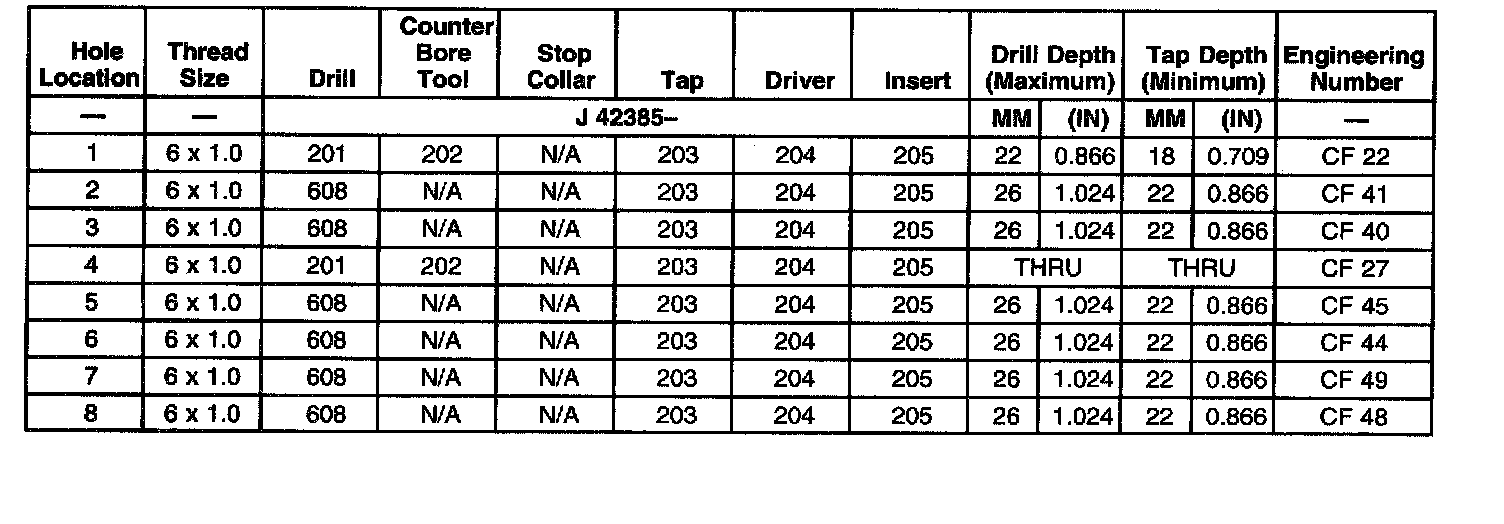

Left Cylinder Head Camshaft Cover Face
Left Cylinder Head Camshaft Cover Face
Left Cylinder Head Camshaft Cover Face
Part 1 of 3
Part 2 of 3
Part 3 of 3
