Electronic Suspension Control Module Replacement
Electronic Suspension Control Module ReplacementRemoval Procedure
1. Remove the rear seat back.
2. Move the rear seat back insulator aside.

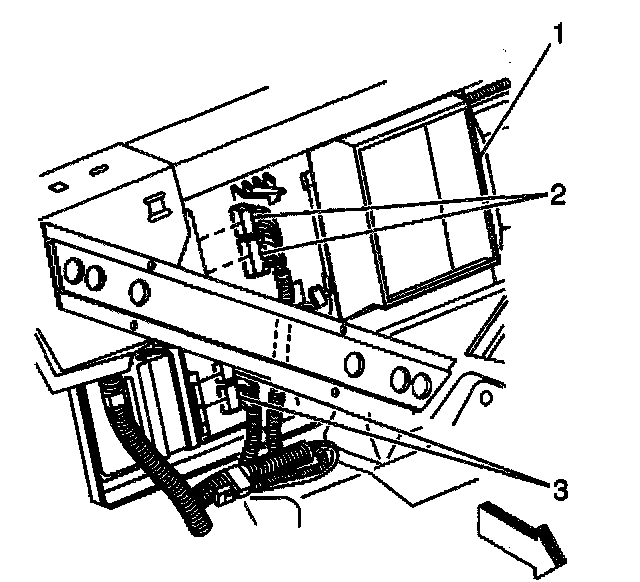

3. Disconnect the electrical connectors from the CVRSS module (2).

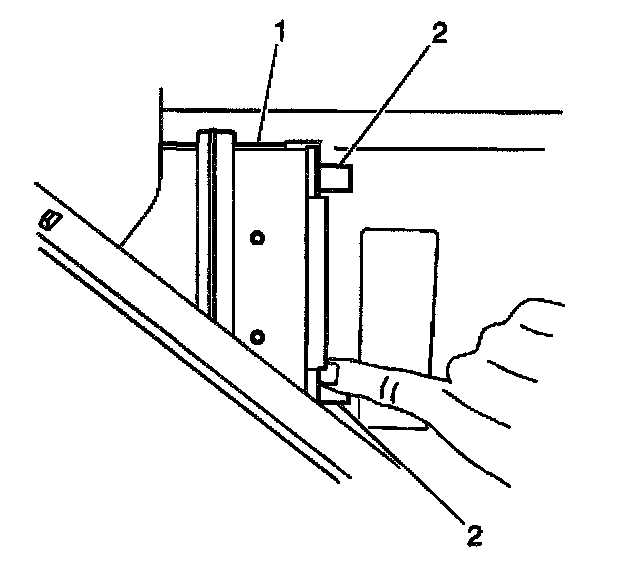

4. Depress inward on the locking tabs (2).

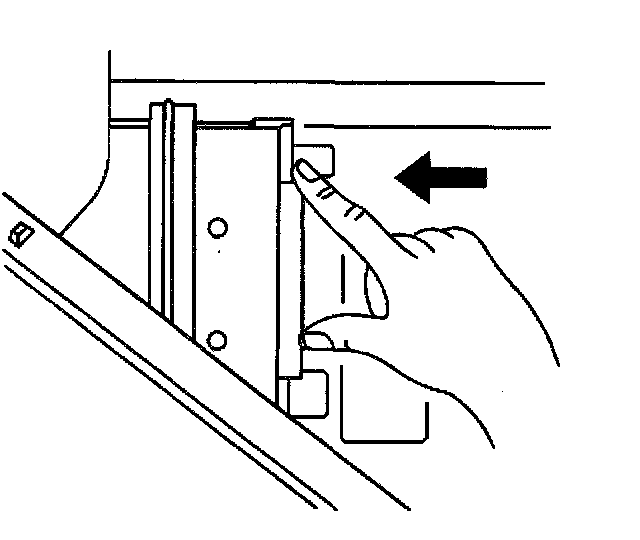

5. With the locking tabs (2) depressed, slide the CVRSS module (1) towards the center of the vehicle.
6. Remove the module (1) from the bracket.
Installation Procedure
1. Install the CVRSS module (1) to the bracket.
2. Slide the CVRSS module (1) away from the center of the vehicle until it is fully engaged.
3. Connect the CVRSS module electrical connector (2).
4. Reposition the rear seat back insulator.
5. Install the rear seat back.
6. Perform the CVRSS module Calibration. Programming and Relearning
