34. 4TH Band Installation

- Tools Required
- J 34741-3 Input Shaft Seal Sizer

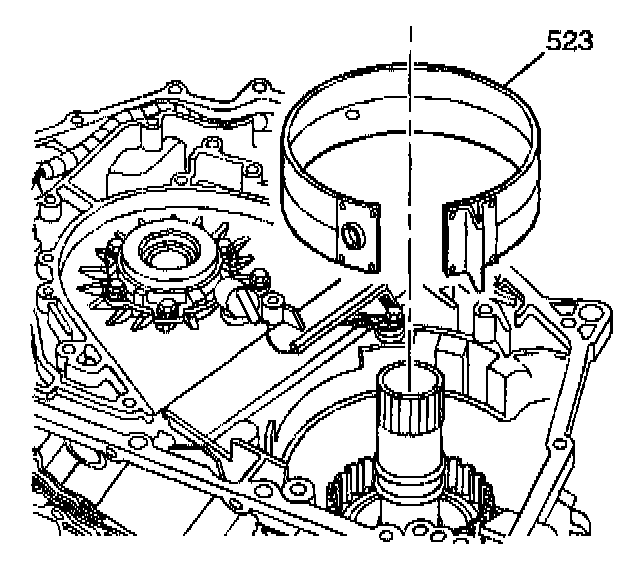

1. Install the fourth band (523) into the case. Seat the band properly onto the anchor pin, with the seat of the servo pin toward the servo bore in the case.

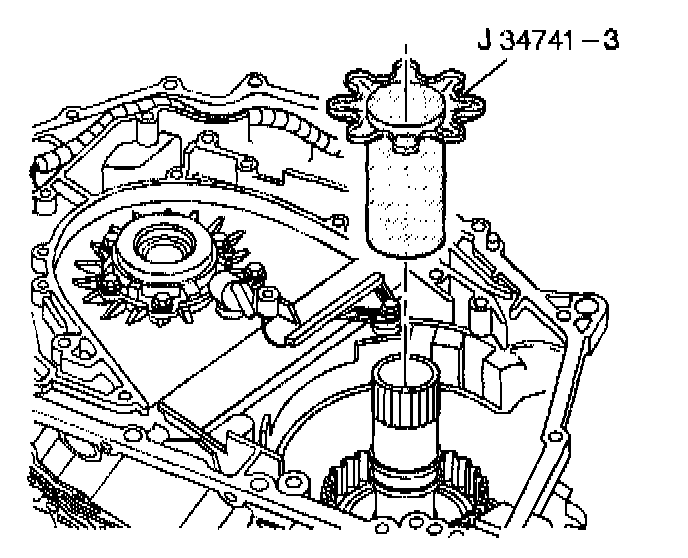

2. Install the J 34741-3 over the input shaft oil seal rings. Use a twisting motion to install the sizer. The sizer must contact the third clutch housing hub.

IMPORTANT: Leave the sizer in place until the reverse clutch and housing assembly is ready to be installed.
