64. Scavenge Screens/Seals, Bottom Pan Installation

1. Inspect the bottom pan sealing surface for damage and inspect the bottom pan magnet for excessive metal filings. Clean if necessary.

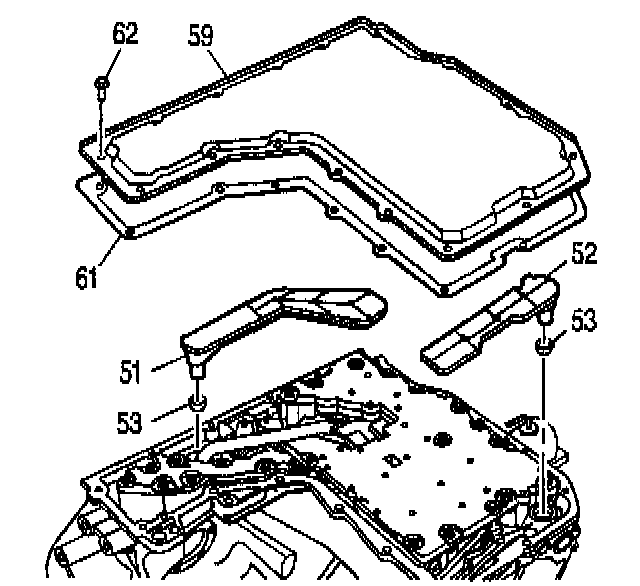

2. Install the scavenge seals (53) into the case and install the new scavenge screens (51, 52) into the seals.
3. Remove any residual oil from the gasket surface of the case, from the bottom pan and from the bolts (62).

IMPORTANT: All of the bolts must be completely dry upon reinstallation.

4. The bottom pan bolt threads in the case must be completely free of transmission fluid. Use a rubber tipped air hose to dry, if necessary.

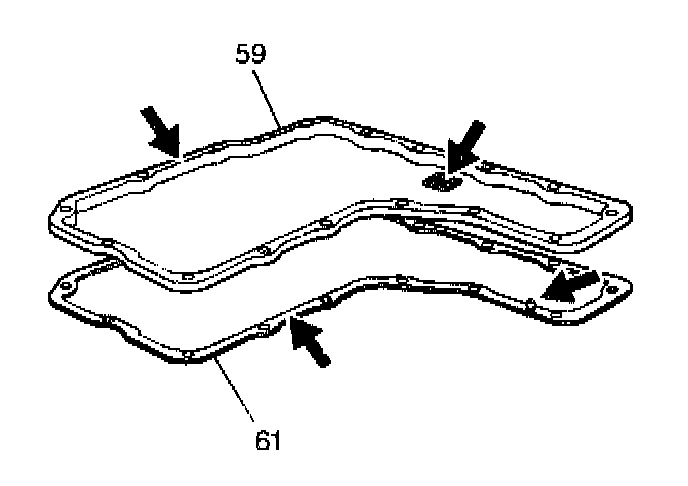

5. Install the new gasket (61) and install the bottom pan (59).

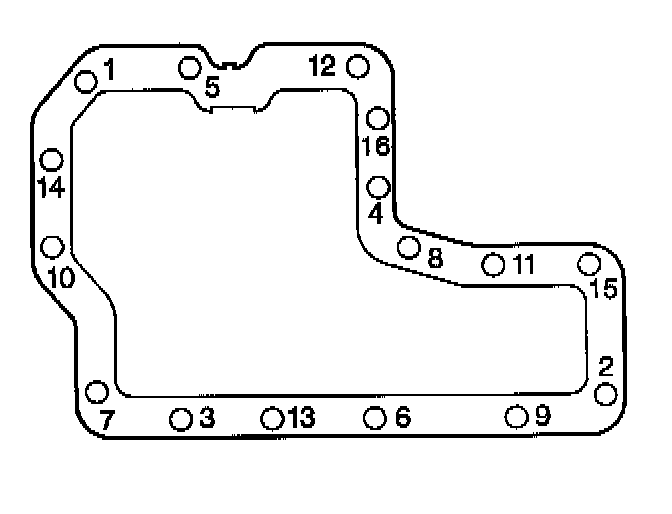

6. Hand start the bottom pan bolts (62) and then tighten in the sequence pattern.
- Tighten the bolts first to 3 Nm. Then tighten the bolts to 6 Nm. Finally tighten the bolts to 10-12 Nm (8-9 ft. lbs.).
