With RPO FE1 and FE3

Rear Body Mount Replacement (FE1 and FE3)

Removal Procedure





1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Remove the tires and the wheels.
3. Using a block of wood and a suitable jack, support the rear support assembly.

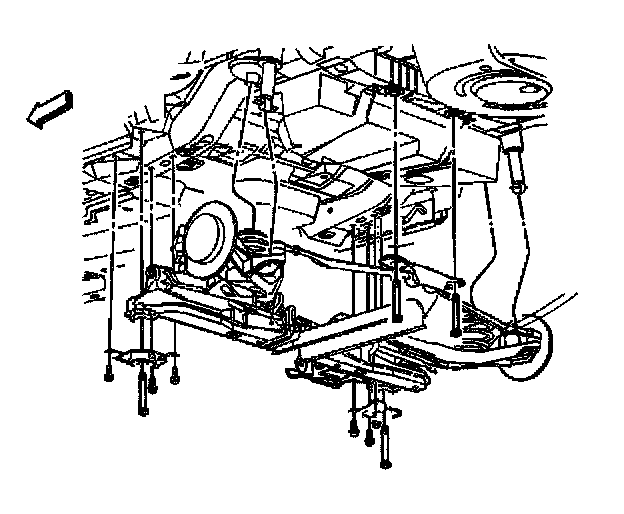

4. Remove the 2 rear support assembly bolts.

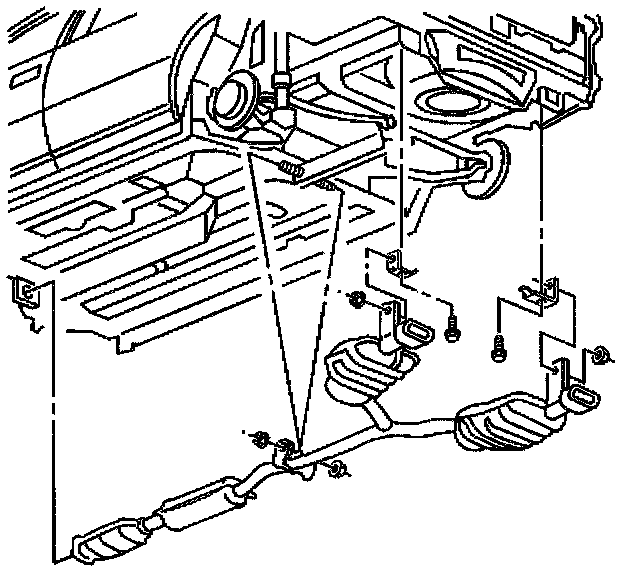

5. Remove the exhaust system.
6. Lower the rear of the support assembly.





7. Remove the 2 bolts at the body mount.
8. Remove the rear body mount.

Installation Procedure





1. Install the rear body mount.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the bolts securing the body mount.
^ Tighten the bolts to 77 Nm (57 ft. lbs.).





3. Raise the support assembly and the exhaust.

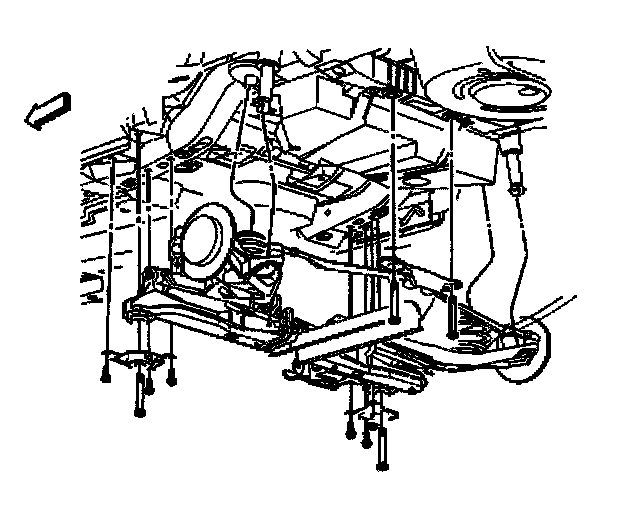

4. Install the 2 rear bolts securing the support assembly to the vehicle body.
^ Tighten the bolts to 191 Nm (141 ft. lbs.).

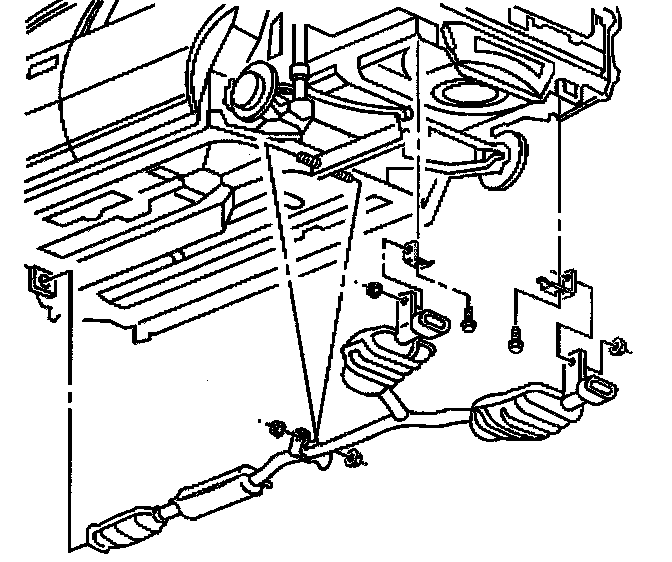

5. Install the 4 exhaust hangers.
6. Install the tires and the wheels.
^ Tighten the wheel nuts to 125 Nm (80 ft. lbs.).
7. Lower the vehicle.
8. Inspect and adjust the rear toe.
