Instrument Panel (IP) - Air Vent Replacement - Outlet

IP Air Outlet Vent Replacement

Removal Procedure






Important: The air outlet vents are not interchangeable, note vent location during removal.


1. Grasp the center of the air outlet vent.

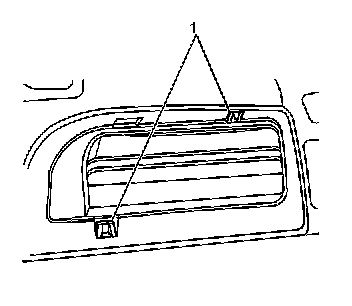

2. Using a small flat bladed tool, release the retainers (1), FROM THE INSIDE OF THE AIR OUTLET VENT, while pulling the vent away from the IP.

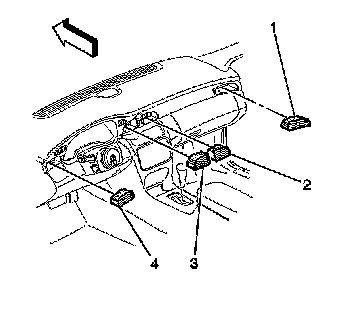

3. Remove the air outlet vents (1, 2, 3 or 4).



Installation Procedure





1. Align the air outlet vent (1, 2, 3 or 4) to the IP opening.
2. Push the air outlet vent (1, 2, 3, or 4) into the opening until the retainers are engaged.
3. Check for proper operation and movement.
