Home >> Cadillac >> 2002 >> DeVille DTS V8-4.6L VIN 9 >> Repair and Diagnosis >> Diagrams >> Components >> Modules >> Passenger Door Module (PDM) (Driver Similar), Front

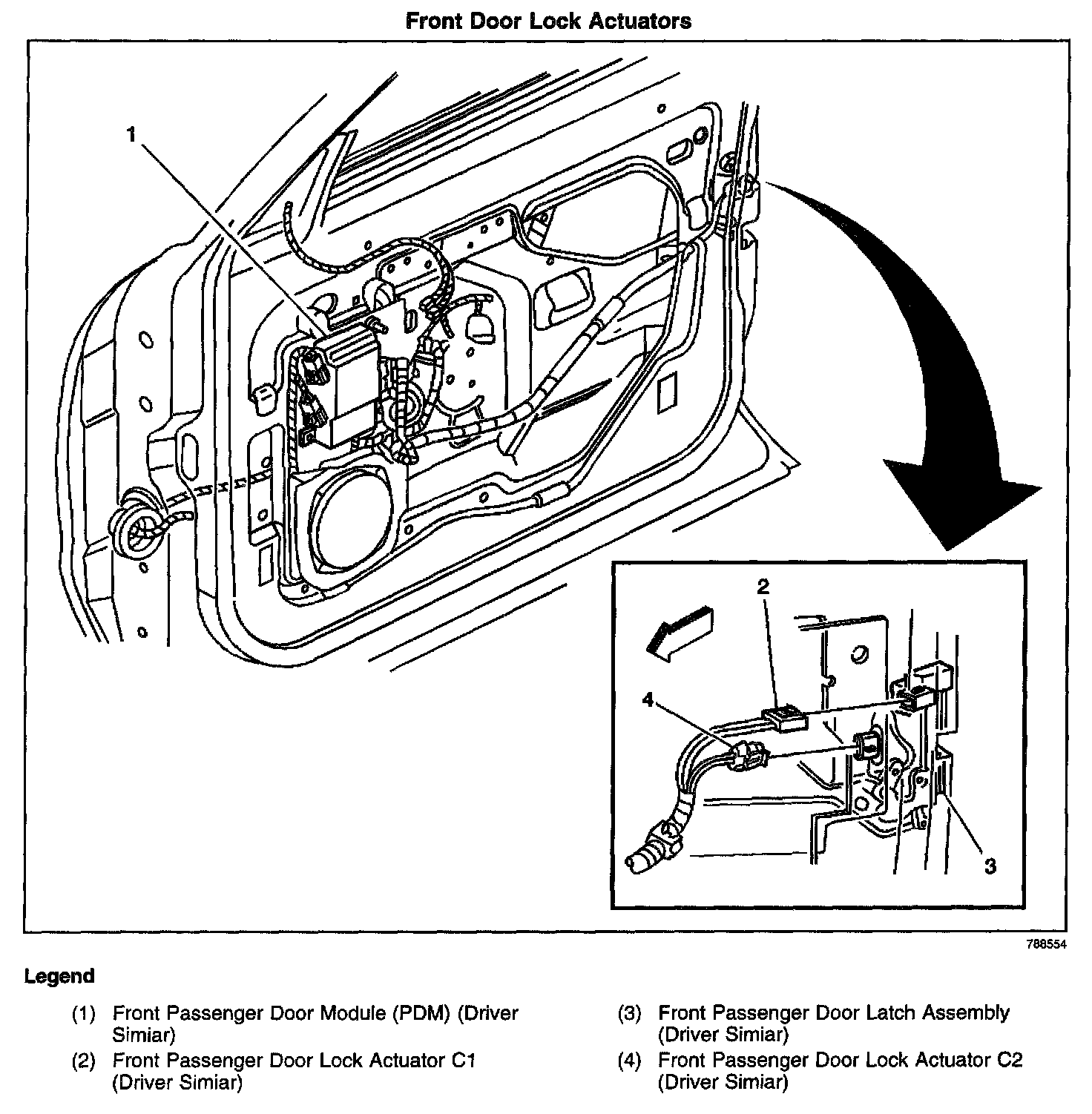

Passenger Door Module (PDM) (Driver Similar), Front

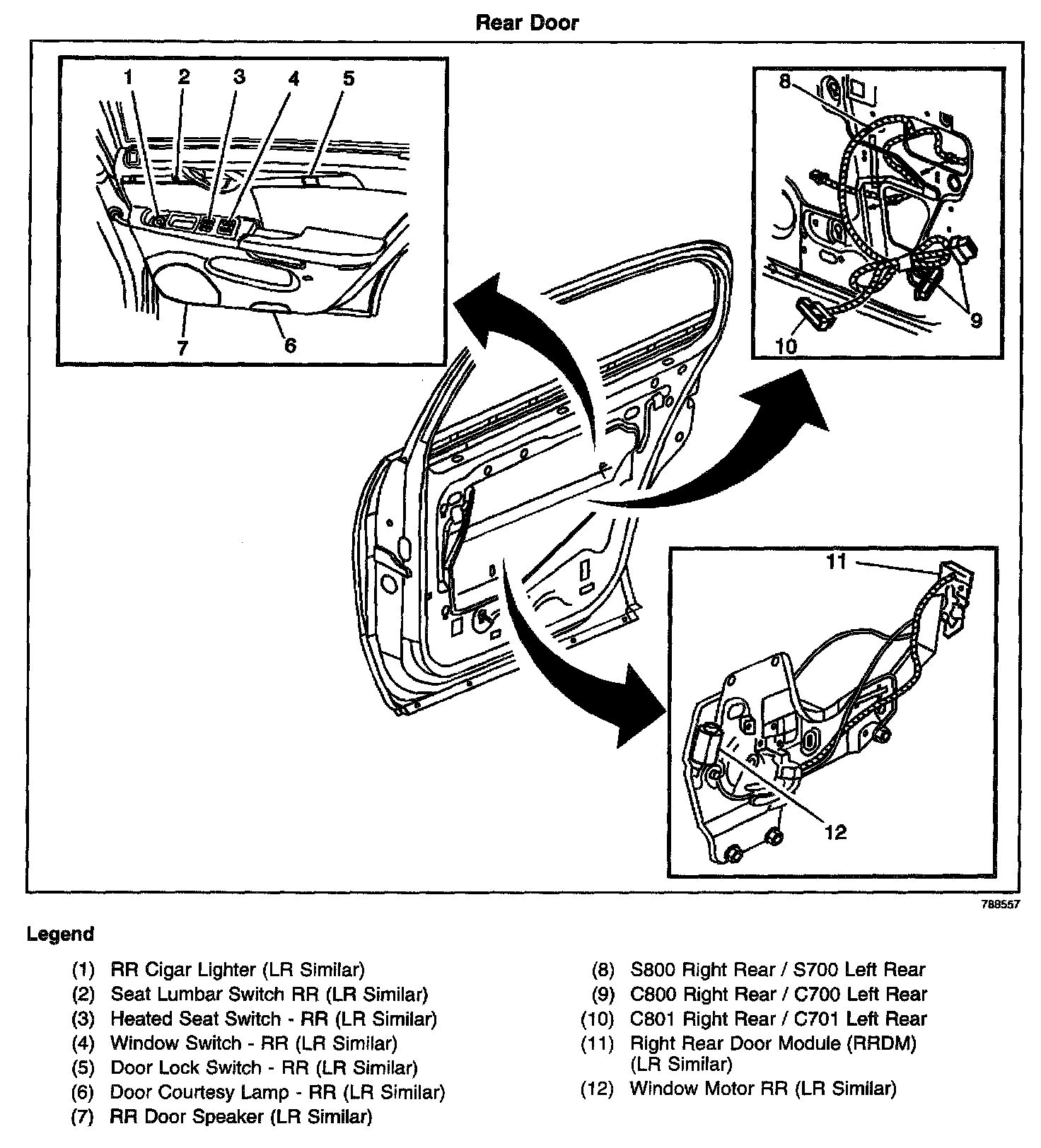

Locations View:

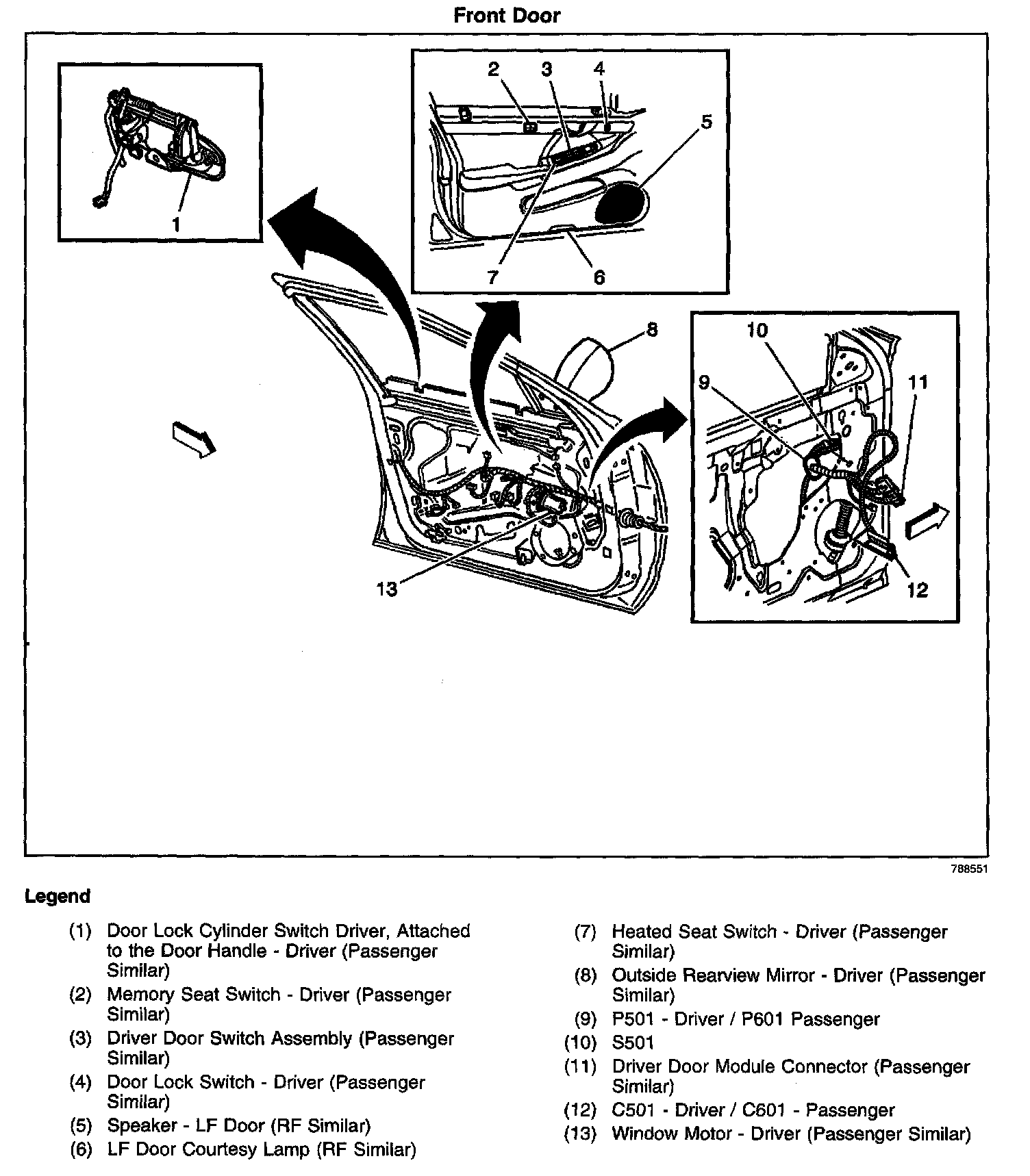

Locations View:



Locations View:
