Home
>>
Cadillac
>>
2002
>>
DeVille DTS V8-4.6L VIN 9
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Control Module
>>
Heated Seat Module - LR
Heated Seat Module - LR
Heated Seat Module - LR C1:

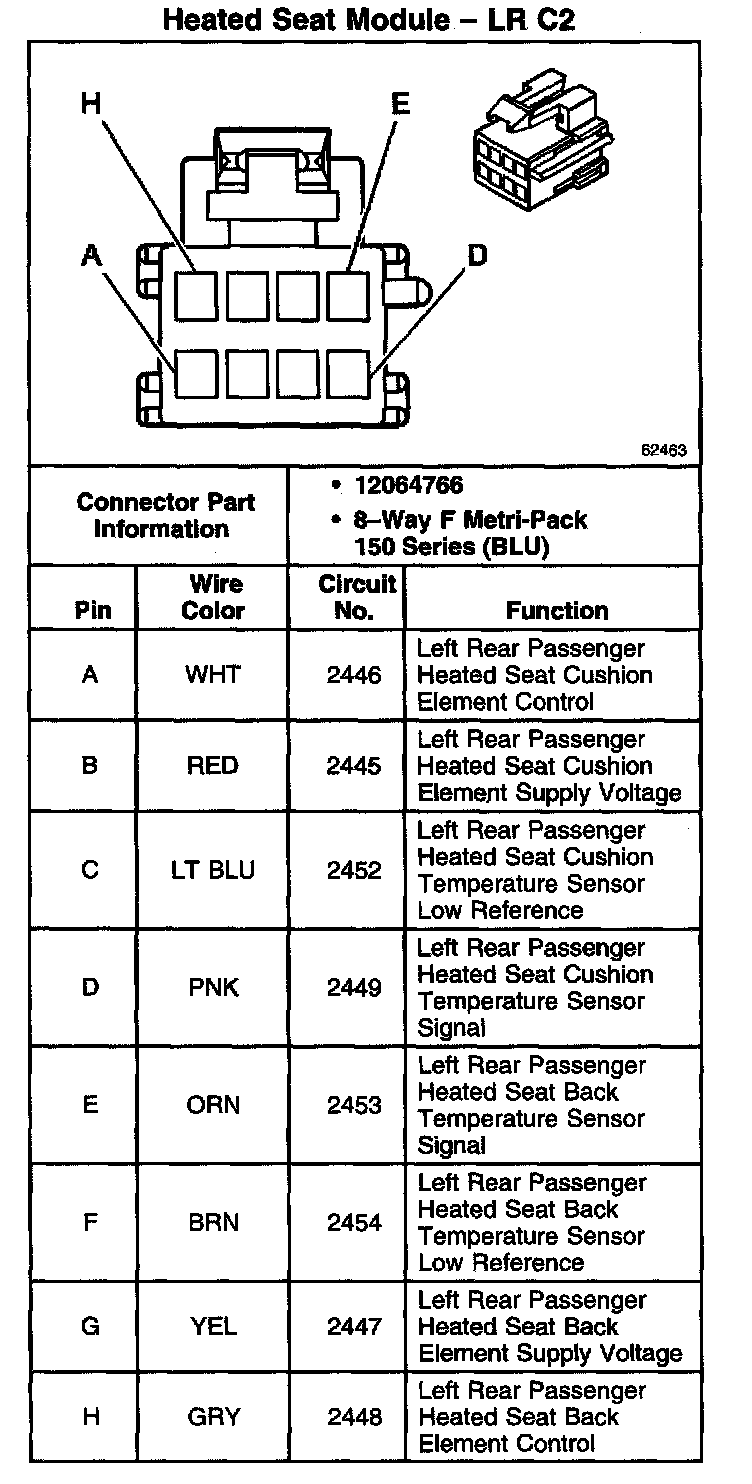

Heated Seat Module - LR C2:
