Belt Tower Motors, Recline Position Sensors, Class 2 (W/A45/AC9)

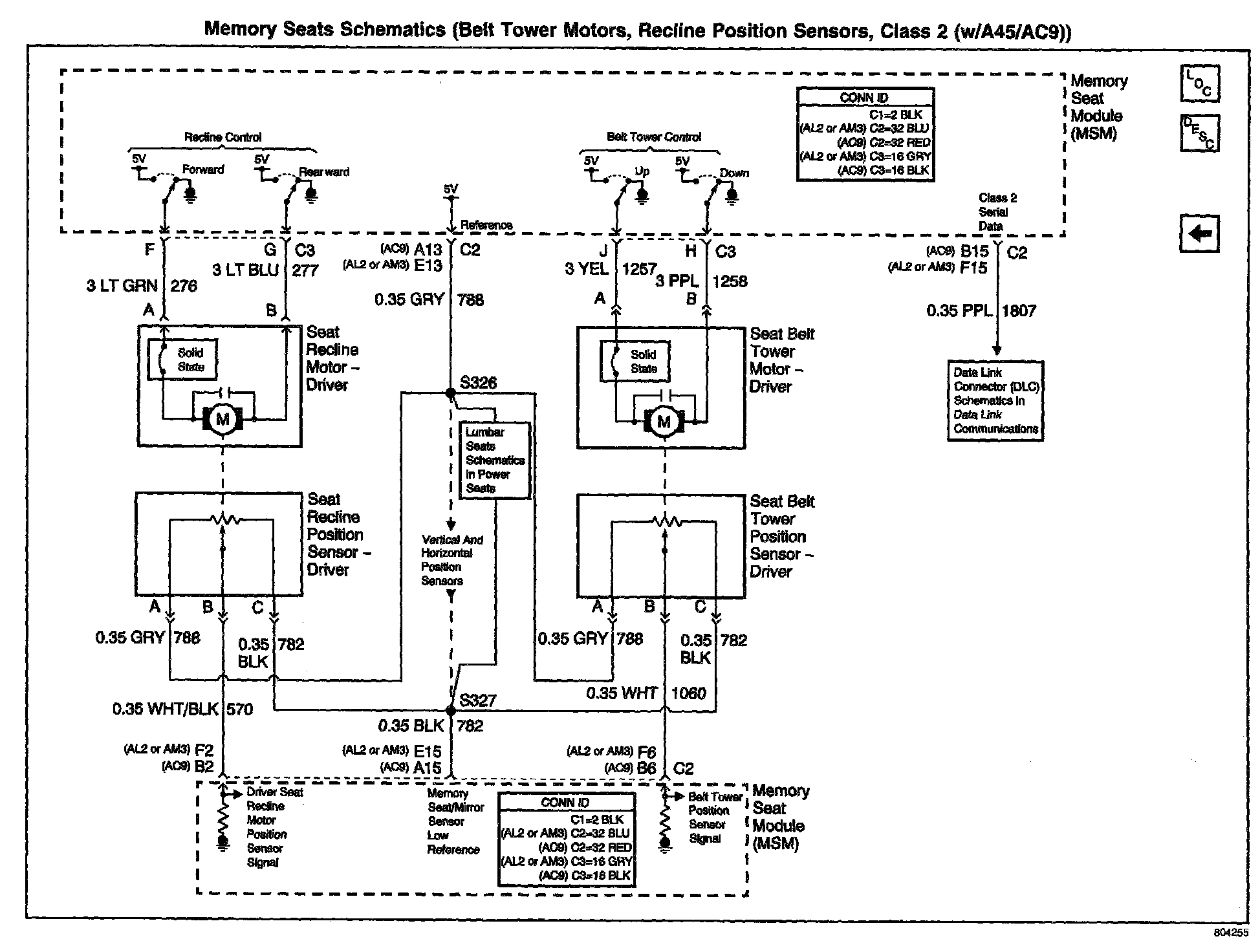

Memory Seats Schematics: Belt Tower Motors, Recline Position Sensors, Class 2 (W/A45/AC9):

"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
