103. Engine Front Cover Installation

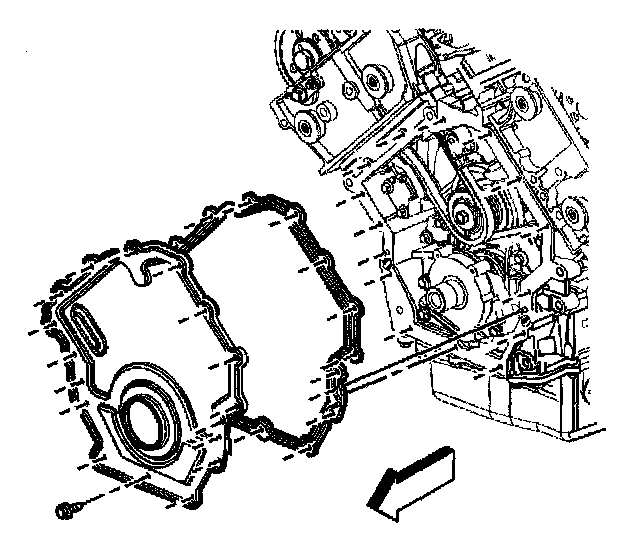

Engine Front Cover Installation

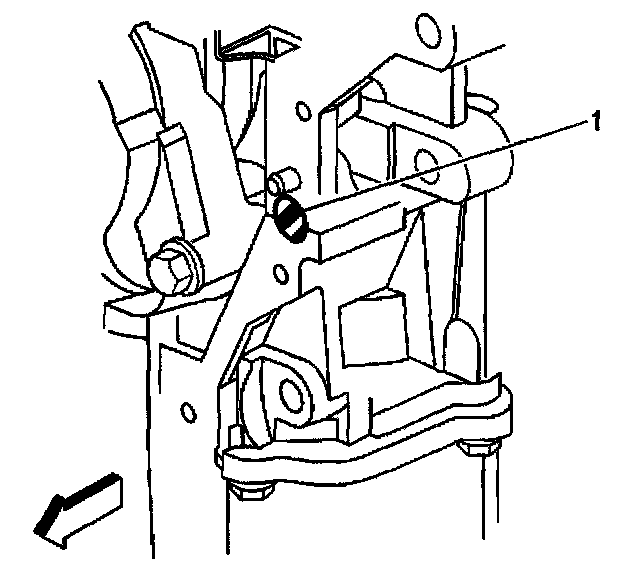

1. Place a small amount of sealant GM P/N US 12345739, Canada 10953541, or equivalent at the split line of the upper and lower crankcases (1).





2. Place the front cover gasket over the crankcase dowel pins.
3. Place the front cover in position on the crankcase.
4. Install the front cover retaining bolts.





Notice: Refer to Fastener Notice in Service Precautions.

5. Tighten the front cover retaining bolts in the sequence shown.
^ Tighten the front cover retaining bolts in proper sequence to 10 Nm (89 lb in).
