Correction

Correction

Aurora and DeVille

Notice
A new Secondary AIR pump and Inlet hose assembly (kit), P/N 19515548, is now available and must be installed if the AIR pump is replaced. Non-replacement and re-routing of the AIR pump inlet hose when servicing the AIR pump may result in a repeat non-function AIR pump from water ingestion.

1. Turn the wheels to the left.

2. Open the hood and install fender covers

3. On DeVille models, remove the upper filler panel. Refer to SI for information on the removal of the upper filler panel.

4. Remove the left headlamp assembly. Refer Headlamp Replacement in SI.

5. Remove the exiting AIR inlet hose retainer located between the inner and the outer fender.

6. Remove the secondary AIR pump. Refer to Secondary Air Injection (AIR) Pump Replacement in SI.

7. Remove the AIR pump inlet hose from the vehicle.

8. Install the new Secondary AIR Pump and Inlet Hose Assembly (Kit), P/N 19515548. Refer to Secondary AIR Injection (AIR) Pump Replacement and Secondary Air Injection Pump Outlet Pipe/Hose Replacement in SI.

9. Remove the left front inner fender splash shield retainers.

10. Reposition the splash shield to allow access for the new hose assembly installation.

Important
Install the new Secondary Air Injection Pump Outlet Pipe/Hose Assembly to the new Air Pump before installing to the vehicle. This will allow the housing on the hose/pipe assembly to fasten to the pump without damage to one of the holding fasteners.

Important
Located on the inner fender behind the air box there is a oval stamped hole. The new AIR filter must snap into this hole in order for the AIR pump to avoid ingesting water. Removal of the Air Cleaner Assembly may be necessary.

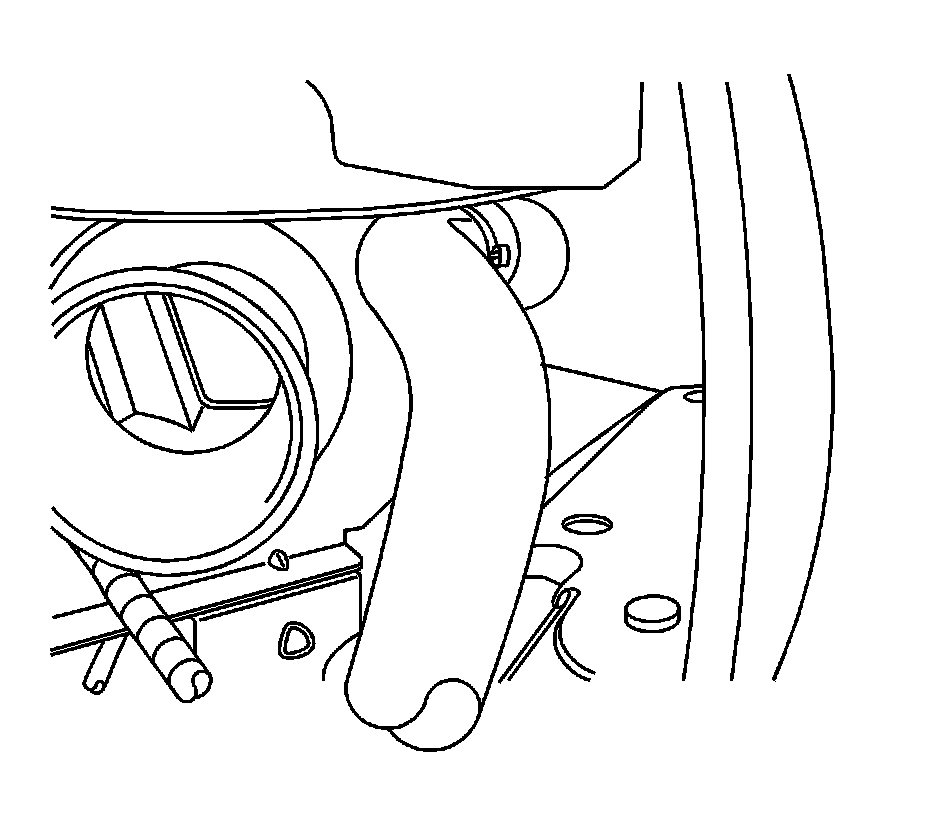

11. Route the new AIR pump inlet hose between the left inner and out fenders as shown above.





Notice
Secure the new AIR pump inlet hose and filter into the opening on the inner fender as shown above. If the filter is not properly secure to the inner fender repeat Non-Function Air pump may occur from ingesting water.

12. Snap the filter into the inner fender opening as shown above.

13. Reposition the inner fender splash shield into position.

14. Install the inner fender splash shield retainers.

15. Lower the vehicle

16. Install the left headlamp assembly. Refer to Headlamp Replacement in SI.

17. On DeVille models, install the upper filler panel. Refer to SI for installation procedures for the upper filler panel.

18. Check the operation of the Shut-Off Valve(s). Refer to SI for Secondary Air Injection description and operation of Shut-Off Valve(s) or refer to DTC P0410 for diagnostic testing of vacuum system, hoses, vacuum solenoid and shut-off valves.

19. Remove the fender covers and close the hood.

20. With a scan tool clear the DTCs and road test the vehicle.

SLS/STS

Notice
A new Secondary AIR Pump and Inlet Hose Assembly (Kit), P/N 19515548 (2001-2003 SLS/STS) and 19515549 (2004 SLS or STS only), is now available and must be installed if the AIR pump is replaced. Non replacement and rerouting of the AIR pump Inlet hose when servicing the AIR pump may result in a repeat Non-Function AIR pump from ingesting water.

1. Open the hood and install fender covers

2. Remove the upper filler panel. Refer to Filler Panel Replacement - Upper in Body Front End in SI.

3. Remove the left headlamp assembly. Refer to Headlamp Replacement in SI.

4. Remove the AIR hose retainer.

5. Remove the secondary air injection (AIR) pump. Refer to Secondary Air Injection (AIR) Pump Replacement in SI.

6. Remove the AIR hose assembly.





Important
Install the new Secondary Air Injection Pump Outlet Pipe/Hose Assembly to the new AIR pump before installing to the vehicle. This will allow the housing on the hose/pipe assembly to fasten to the pump without damage to one of the holding fasteners.

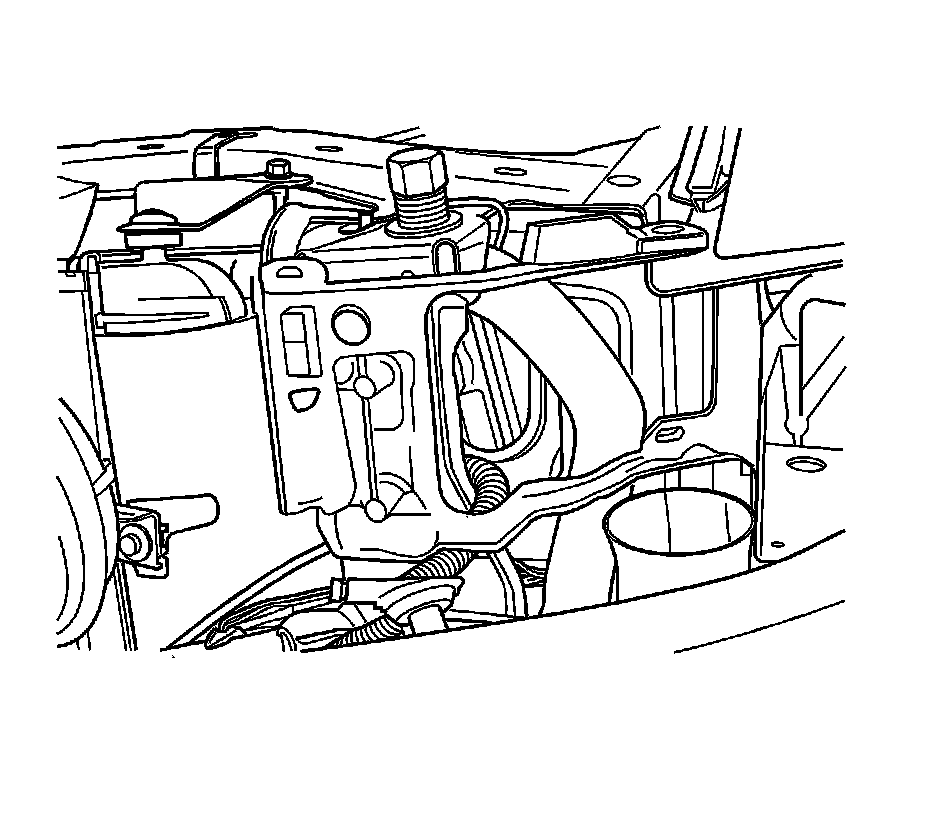

7. A new Secondary AIR Pump and Inlet Hose Assembly (kit), P/N 19515548 (2001-2003 Seville) or P/N 19515549 (2004 Seville only), behind the headlamp mounting bracket as shown above.

8. Lower the vehicle





Notice
It is critical that the new AIR inlet hose filter opening is facing downward when installed on the vehicle. If improperly installed Non-Function AIR pump may occur due to ingesting water into the pump.

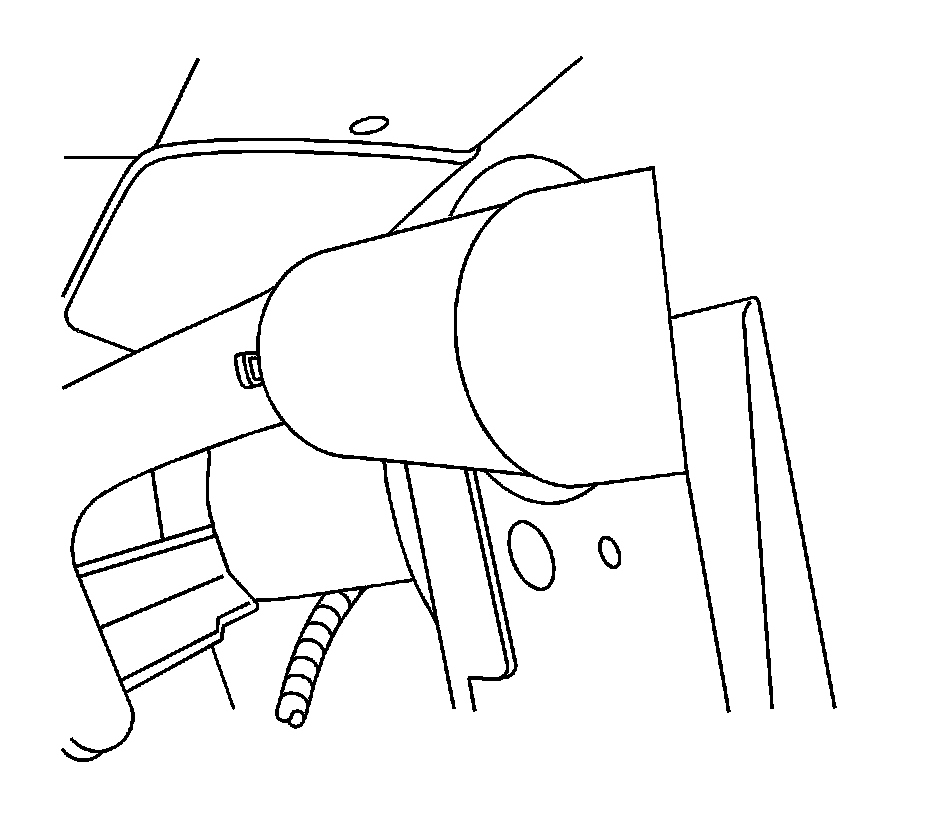

9. Secure the new AIR hose filter with a plastic tie strap to the upper radiator support with the filter opening facing downward as shown above.

10. Install the headlamp assembly. Refer to SI Headlamp Replacement in SI.

11. Install the upper filler panel. Refer to Filler Panel Replacement - Upper in Body Front End in SI.

12. Check the operation of the Shut-Off Valve(s). Refer to SI for Secondary Air Injection description and operation of Shut-Off Valve(s) or refer to DTC P0410 for diagnostic testing of vacuum system, hoses, vacuum solenoid and shut-off valves.

13. Use a scan tool clear the DTCs and road test the vehicle.

Eldorado

Notice
A new Secondary AIR Pump, P/N 25770944, and Inlet AIR Pump Filter Kit, P/N 15783306, are now available and must be installed if the AIR pump is replaced. Non-replacement and re-routing of the AIR pump Inlet hose and filter when servicing the AIR pump may result in a repeat non-function AIR pump from water ingestion.

1. Open the hood and install fender covers.

2. Raise the vehicle. Refer to Lifting and Jacking the Vehicle in SI.

3. Install a new AIR pump, P/N 25770944. Refer to Secondary Air Injection (AIR) Pump Replacement in SI.

4. Lower the vehicle.

5. Remove the left headlamp assembly. Refer to Headlamp Capsule Replacement in SI.

6. Remove the push-on retainer from the AIR hose.

7. Remove the exiting AIR filter from the hose.

8. Measure and mark 20 cm (8 in) back from the AIR hose end.

9. Cut the AIR hose at the mark made in the above step. DO NOT discard the cut off piece of hose.

10. Install one clamp from kit, P/N 15783306, onto the AIR hose.

11. Install the connector from kit, P/N 15783306, into the air hose.

12. Install the cut off piece of the AIR hose onto the other end of the connector.

13. Install the other two clamps onto the open end of the cut off piece of the AIR hose.

Notice
It is critical that the new AIR inlet hose filter opening is facing rearward when installed on the vehicle. If improperly installed, a non-function of the AIR pump may occur due to water ingestion into the pump.

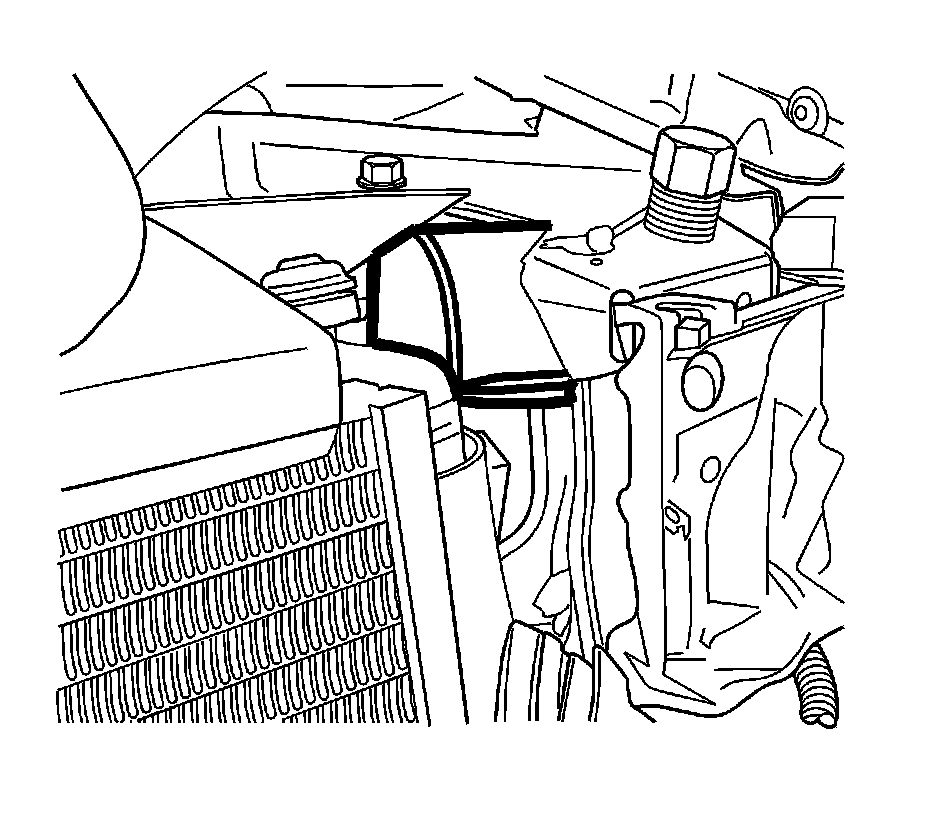

14. Install the new AIR hose filter from kit, P/N 15783306.

15. Crimp all three clamps.

16. Plastic strap the AIR hose to the headlamp mounting bracket.

17. Reinstall the left headlamp and closeout panel. Refer to Headlamp Capsule Replacement in SI.

18. Check the operation of the Shut-Off Valve(s). Refer to SI for Secondary Air Injection description and operation of Shut-Off Valve(s) or refer to DTC P0410 for diagnostic testing of vacuum system, hoses, vacuum solenoid and shut-off valves.

19. Use a scan tool clear the DTCs and road test the vehicle.
