Home >> Cadillac >> 2002 >> DeVille DTS V8-4.6L VIN 9 >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Cylinder Block Assembly >> System Specifications >> Thread Specifications >> Left Cylinder Head Intake Face

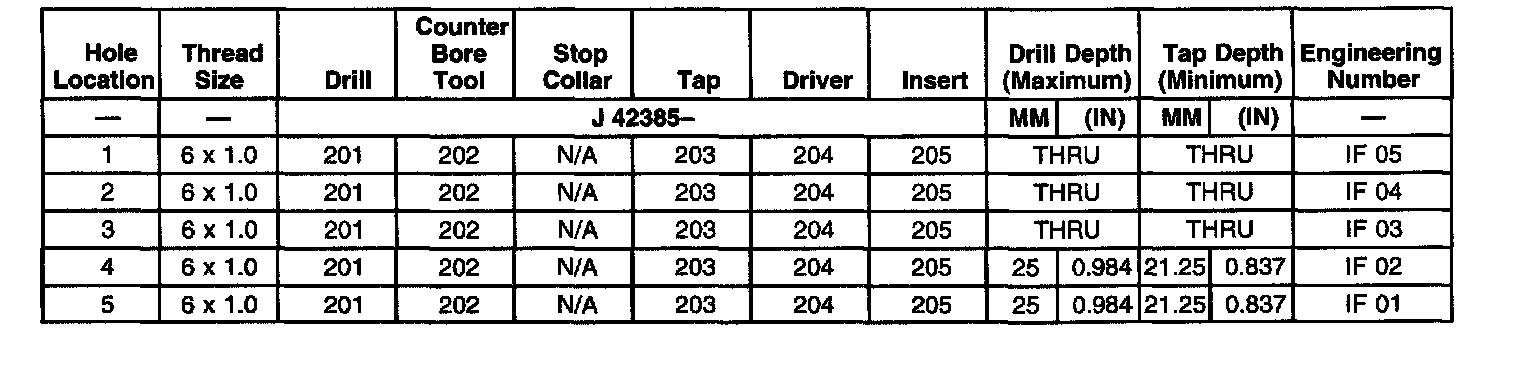

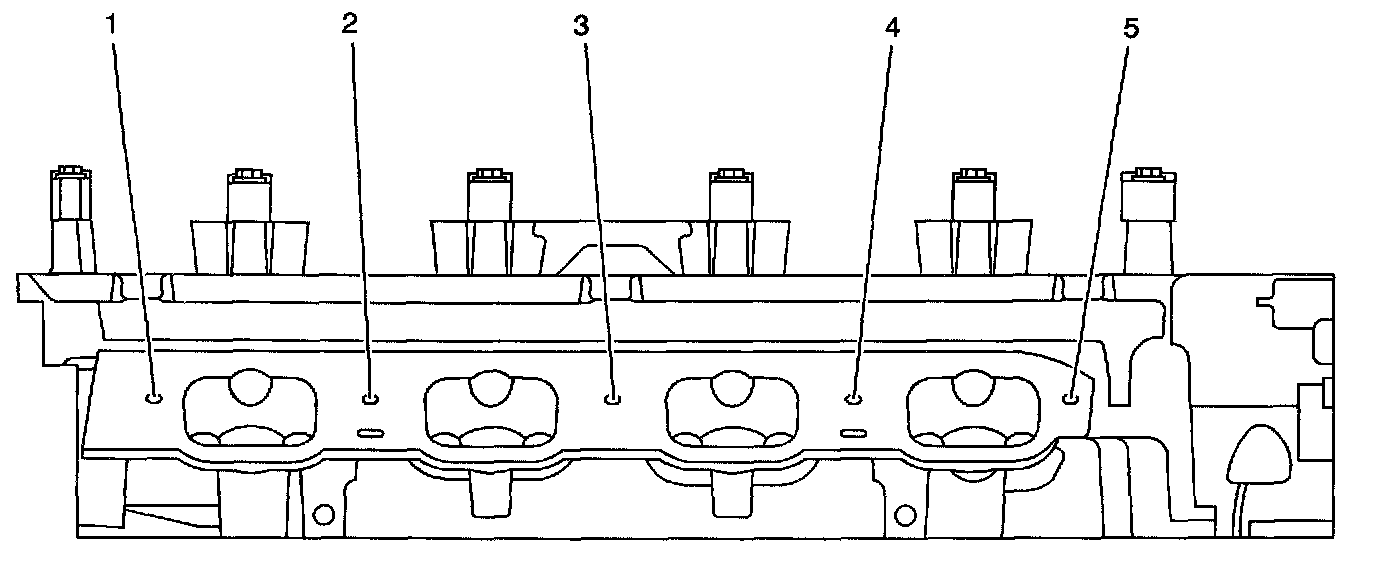

Left Cylinder Head Intake Face

Left Cylinder Head Intake Face





Part 2 of 2





Part 2 of 2
