35. Reverse Clutch Housing and 2ND Sprag Disassemble

- Tools Required
- J 39694 Spring Compressor

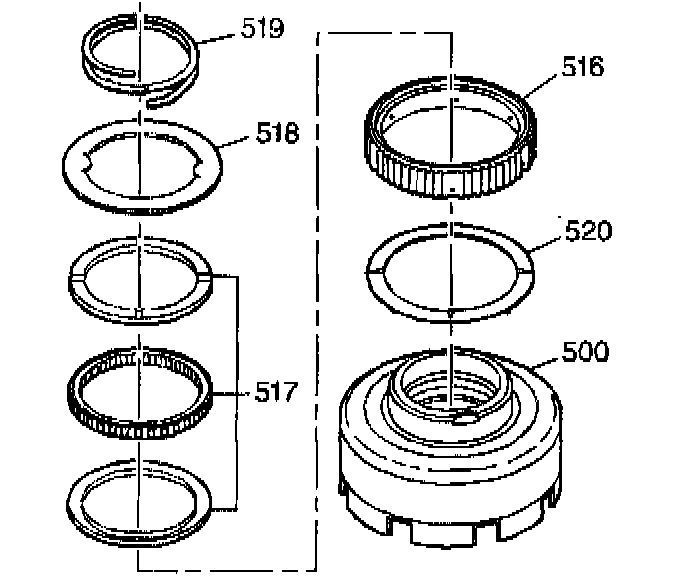

1. Remove the spiral snap ring (519). Discard the snap ring, which is not reusable.
2. Remove the following parts:
- The sprag clutch retainer (518)
- The second sprag outer race
- The second sprag clutch (516-517)
- The second sprag outer race thrust washer(520)





3. Remove the following parts:

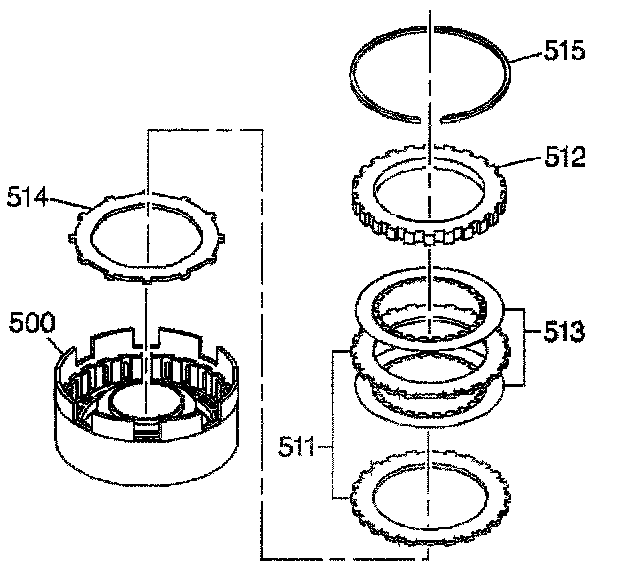

- The reverse clutch snap ring (515)
- The reverse clutch backing plate (512)
- All of the fiber (513) and steel (511) clutch plates
- The reverse clutch belleville plate (514)

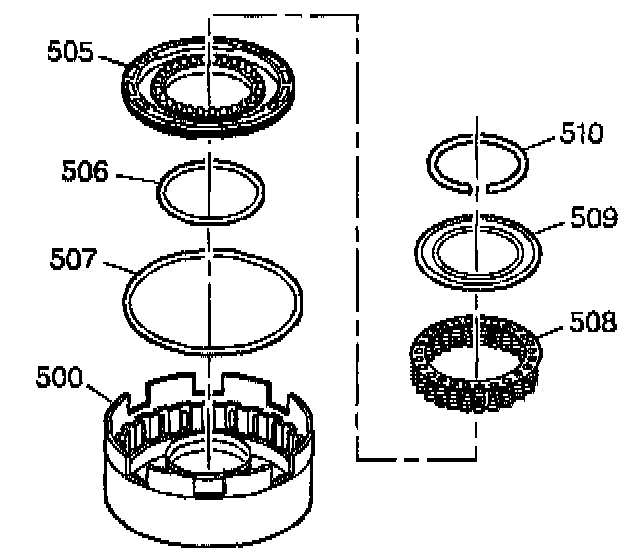

4. Install the J 39694 spring compressor and compress the spring and retainer assembly (509). Then remove the snap ring (510).





5. Remove the following parts:
- The snap ring retainer (509)
- The spring and retainer assembly (508)
- The piston assembly (505)
