A/T - 4T65-E Final Drive Assembly Precaution
Bulletin No.: 04-07-30-030Date: July 02, 2004
INFORMATION
Subject:
Using Caution When Servicing Final Drive Unit on 4T65-E Transaxles To Insure Internal Gear Thrust Bearing (695) is Properly Seated/Located
Models:
2001-2005 GM Passenger Cars
with 4T65-E Transaxle (RPO's MN3, MN7, M15 or M76)
When servicing a final drive unit on a 4T65-E transaxle, use extreme caution to ensure that the internal gear thrust bearing (695) is properly seated/located.
It has been found that after servicing a final drive unit on 4T65-E transaxles, the internal gear thrust bearing (695) was not properly seated/located causing internal damage and a repeat repair.

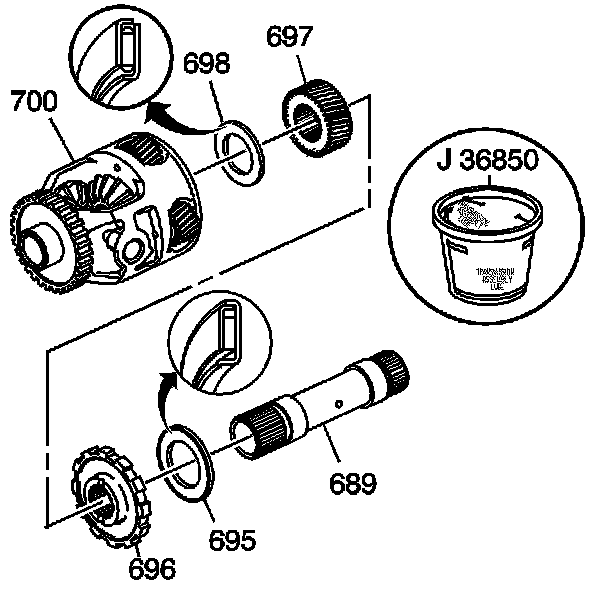

Use a generous amount of Transgel J 36850 when installing the internal gear thrust bearing (695) to the park gear (696) to ensure the internal thrust bearing (695) will retain its proper position during assembly.
