Coaxial Cable Replacement - Global Positioning System (GPS)

REMOVAL PROCEDURE




1. Remove the IR trim panel.
2. Lower the front of the headliner.

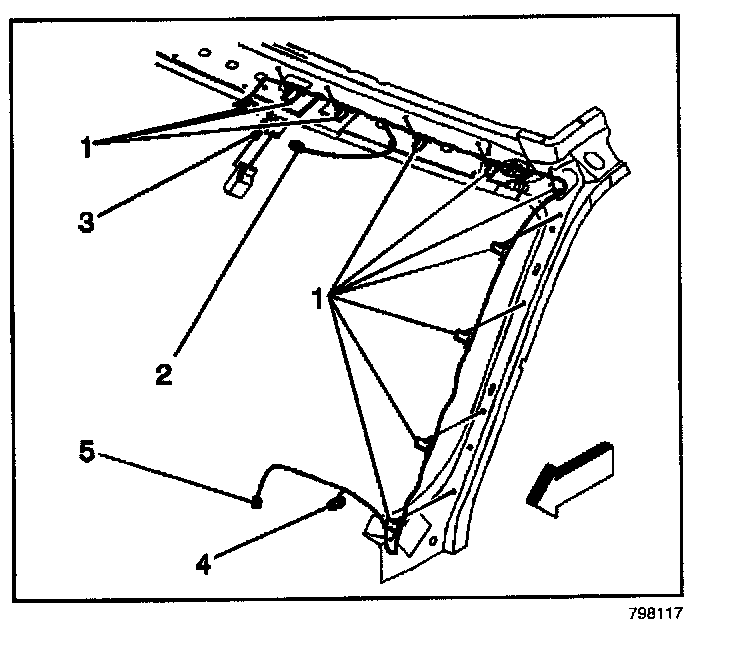

3. Disconnect the cable connector (5) from the VIU connector.
4. Disconnect the inline harness connector (4).
5. Disconnect the harness connector (2) from the microphone connector.
6. Disconnect the cable connector (3) from the GPS antenna.
7. Remove the cable clips from the A-pillar and roof.
8. Remove the cable assembly from the vehicle.

INSTALLATION PROCEDURE




1. Install the cable clips to the A-pillar and roof.
2. Connect the cable connector (3) to the GPS antenna.
3. Connect the harness connector (2) to the microphone connector.
4. Connect the inline harness connector (4).
5. Connect the cable connector (5) to the VIU connector.
6. Install the front of the headliner.
7. Install the IP trim panel.
