Passenger and Outside Rearview Power Folding Mirror Switch

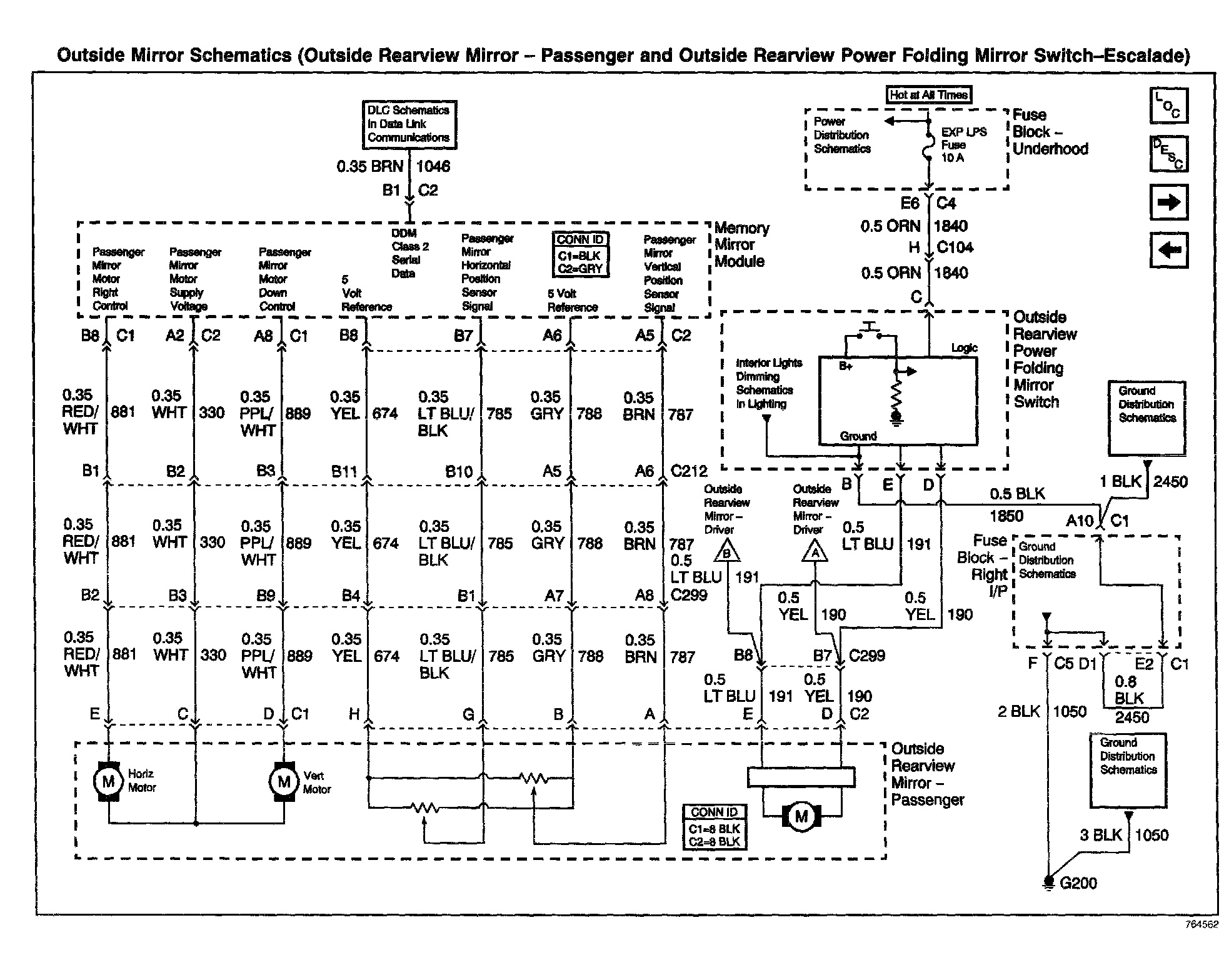

Outside Mirror Schematics: Outside Rearview Mirror - Passenger And Outside Rearview Power Folding Mirror Switch-Escalade:
