Power, Memory Seat Switch, Memory Seat Module (Non Class 2)

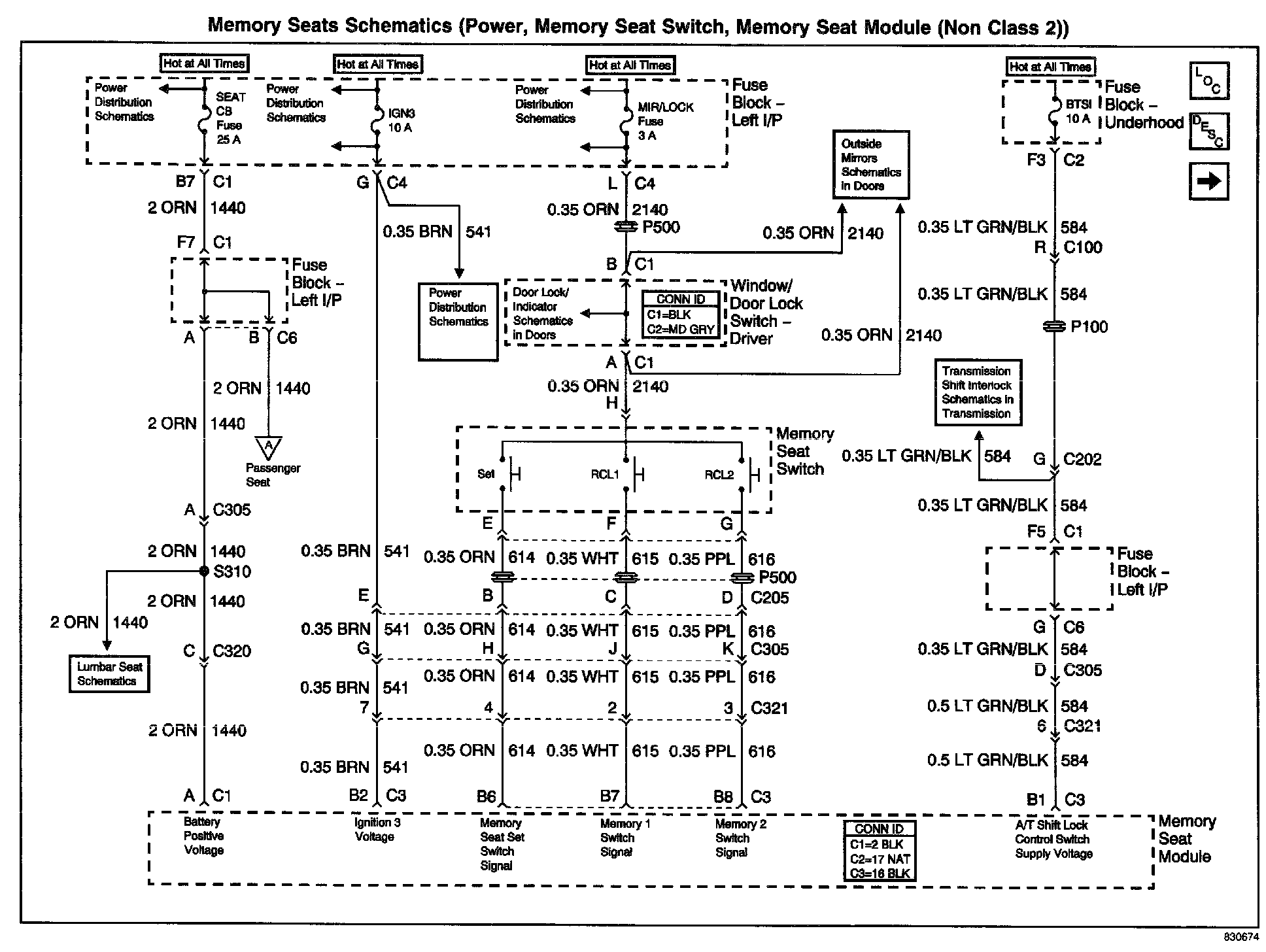

Memory Seats Schematics (Power, Memory Seat Switch, Memory Seat Module (Non Class 2)):
