Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2003
>>
CTS V6-3.2L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Cellular Phone
Cellular Phone

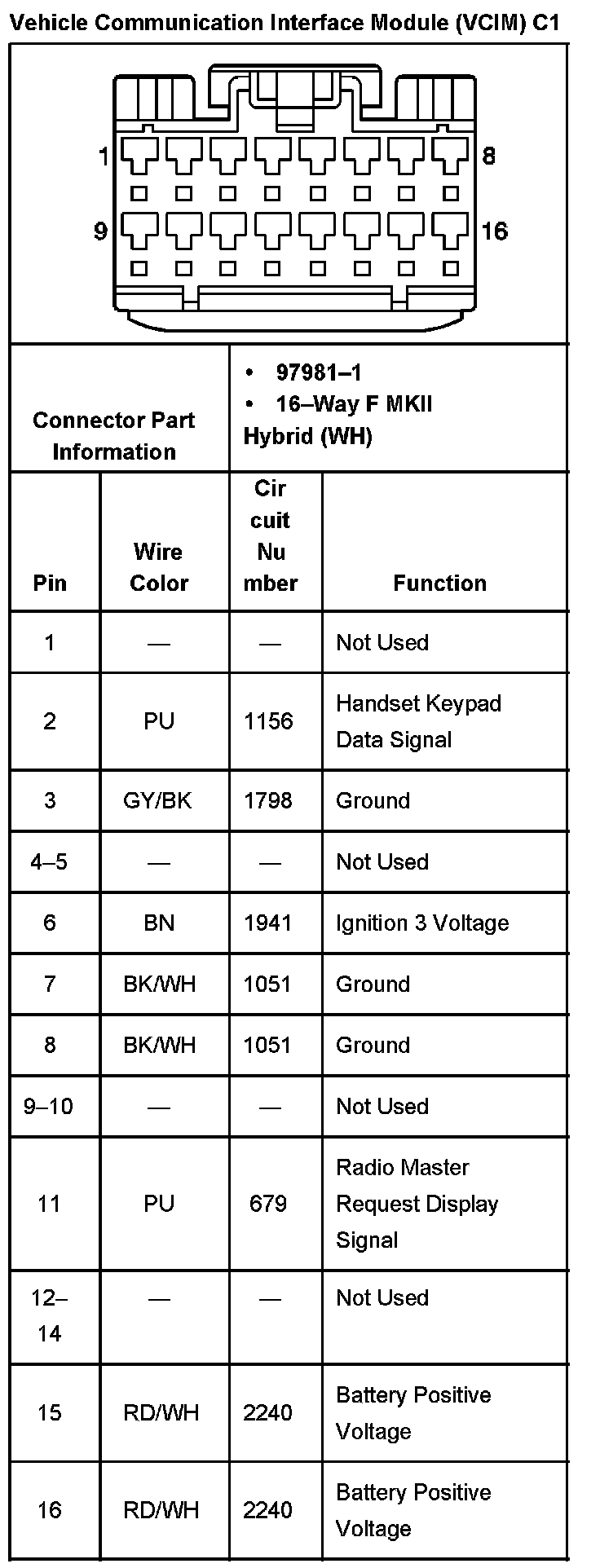

Vehicle Communication Interface Module (VCIM) C1:

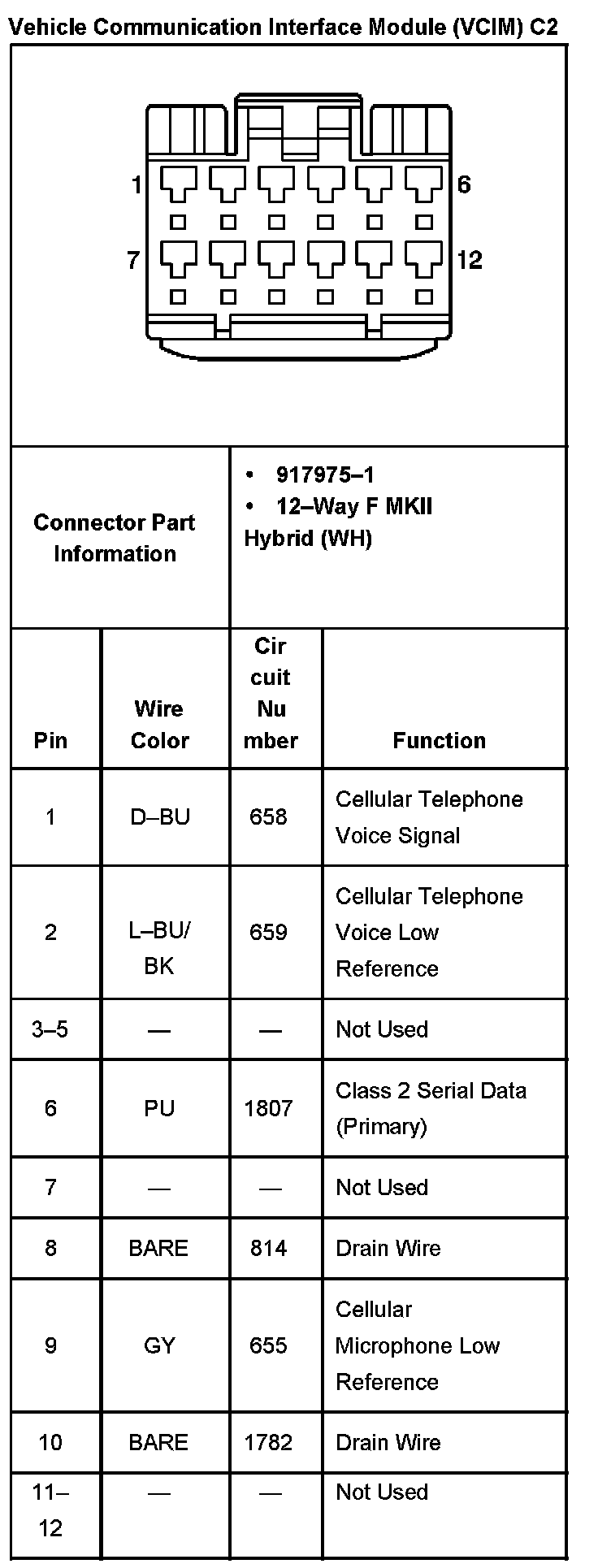

Vehicle Communication Interface Module (VCIM) C2:

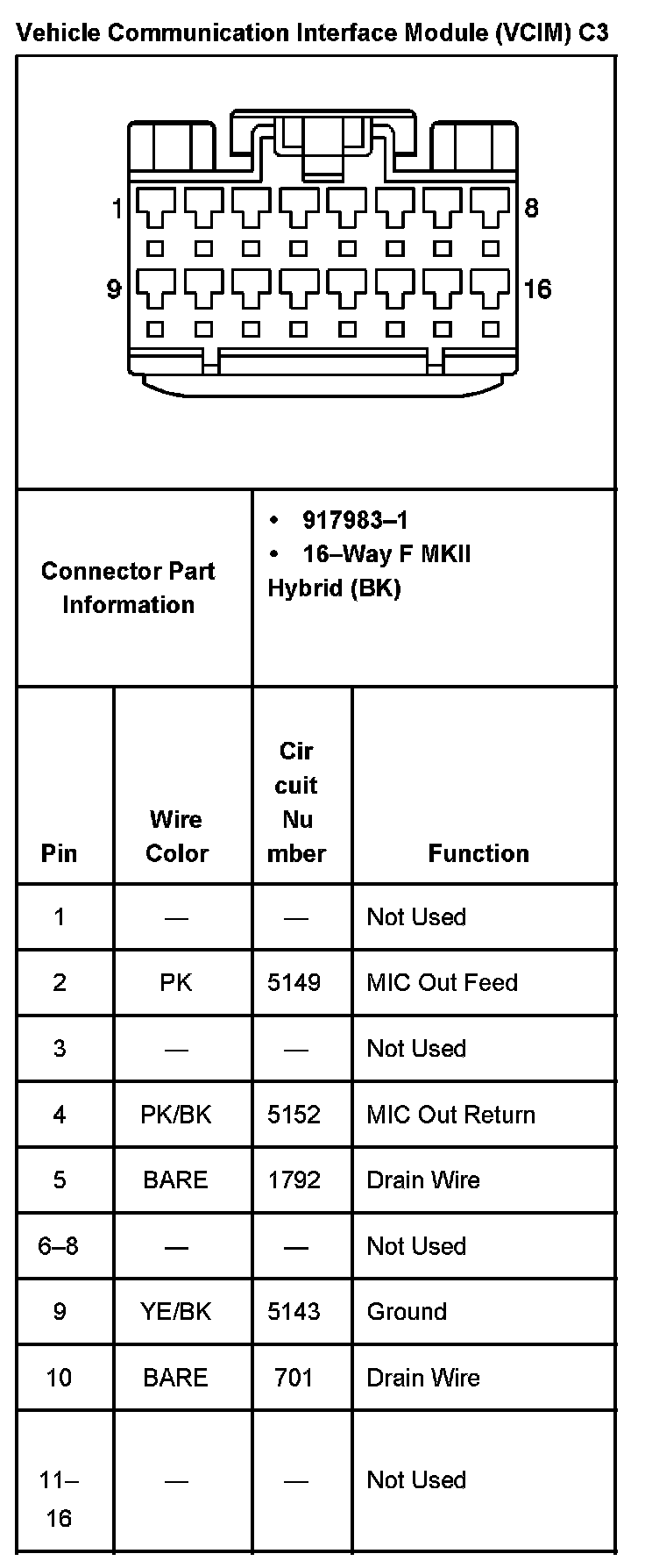

Vehicle Communication Interface Module (VCIM) C3:
