Home >> Cadillac >> 2003 >> CTS V6-3.2L VIN N >> Repair and Diagnosis >> Diagrams >> Connector Views >> SP102

SP102

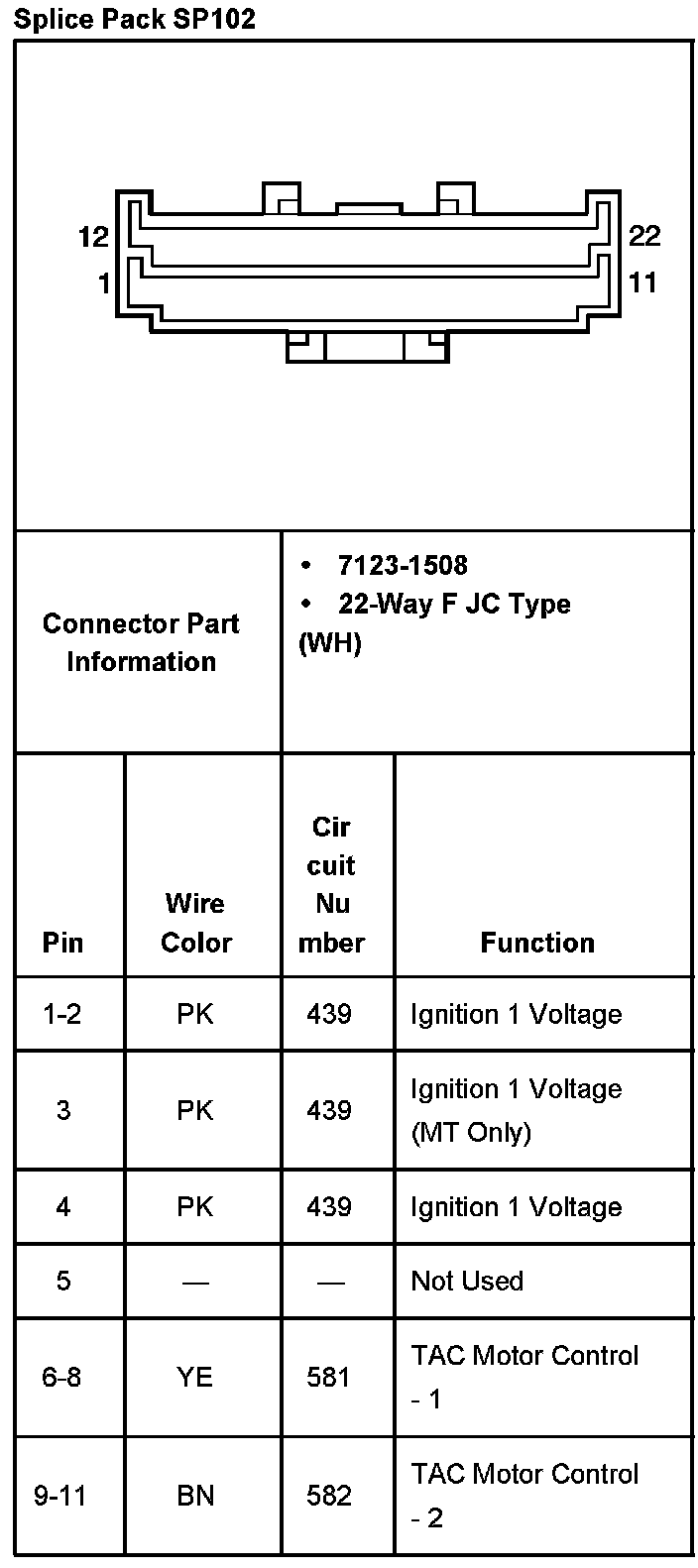

Splice Pack SP102 Part 1:

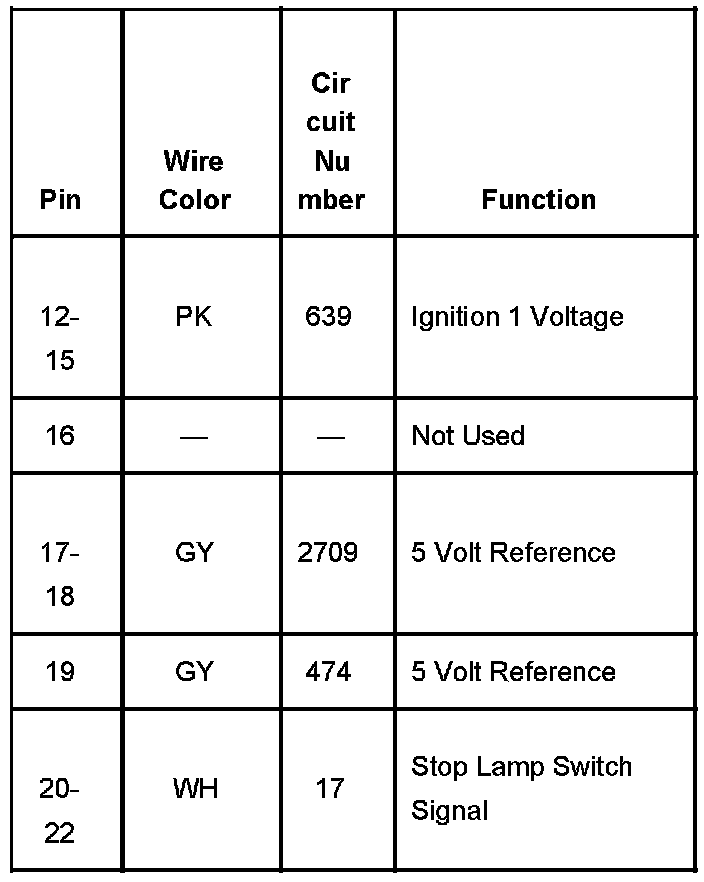

Splice Pack SP102 Part 2:
