Operation CHARM
: Car repair manuals for everyone.
Home
>>
Cadillac
>>
2003
>>
CTS V6-3.2L VIN N
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Speaker
>>
Speaker - Midrange
Speaker - Midrange

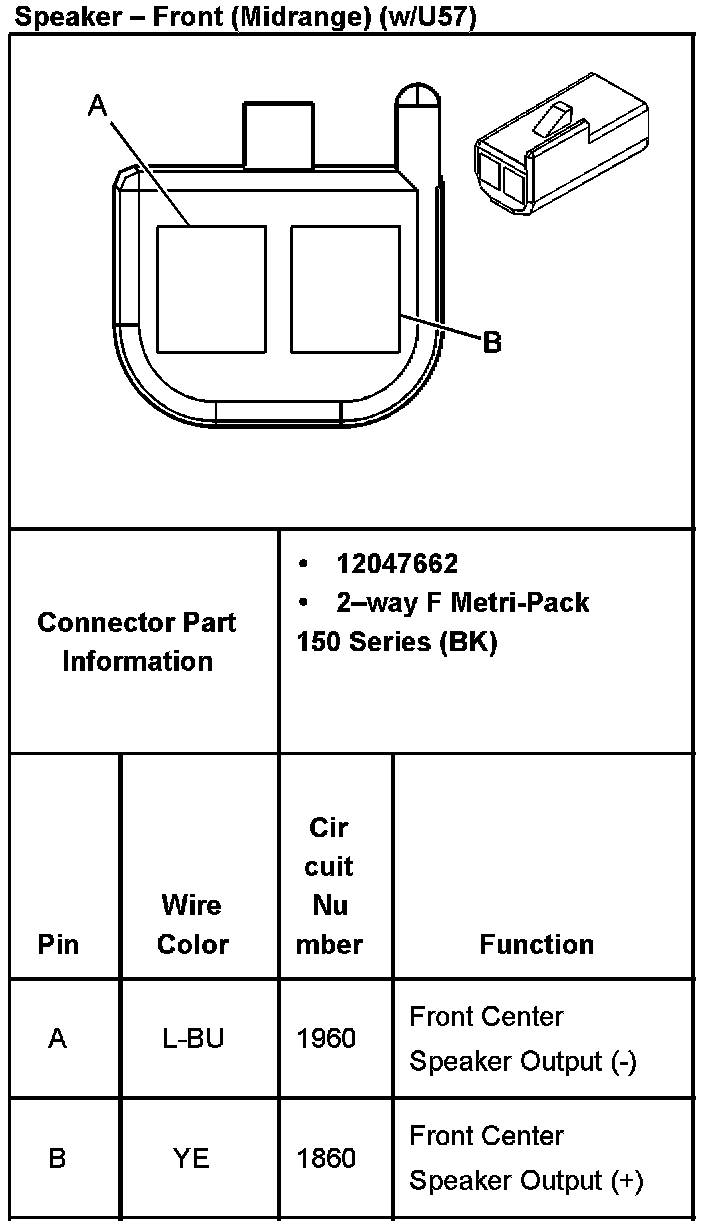

Speaker - Front (Midrange) (With RPO Code U57):

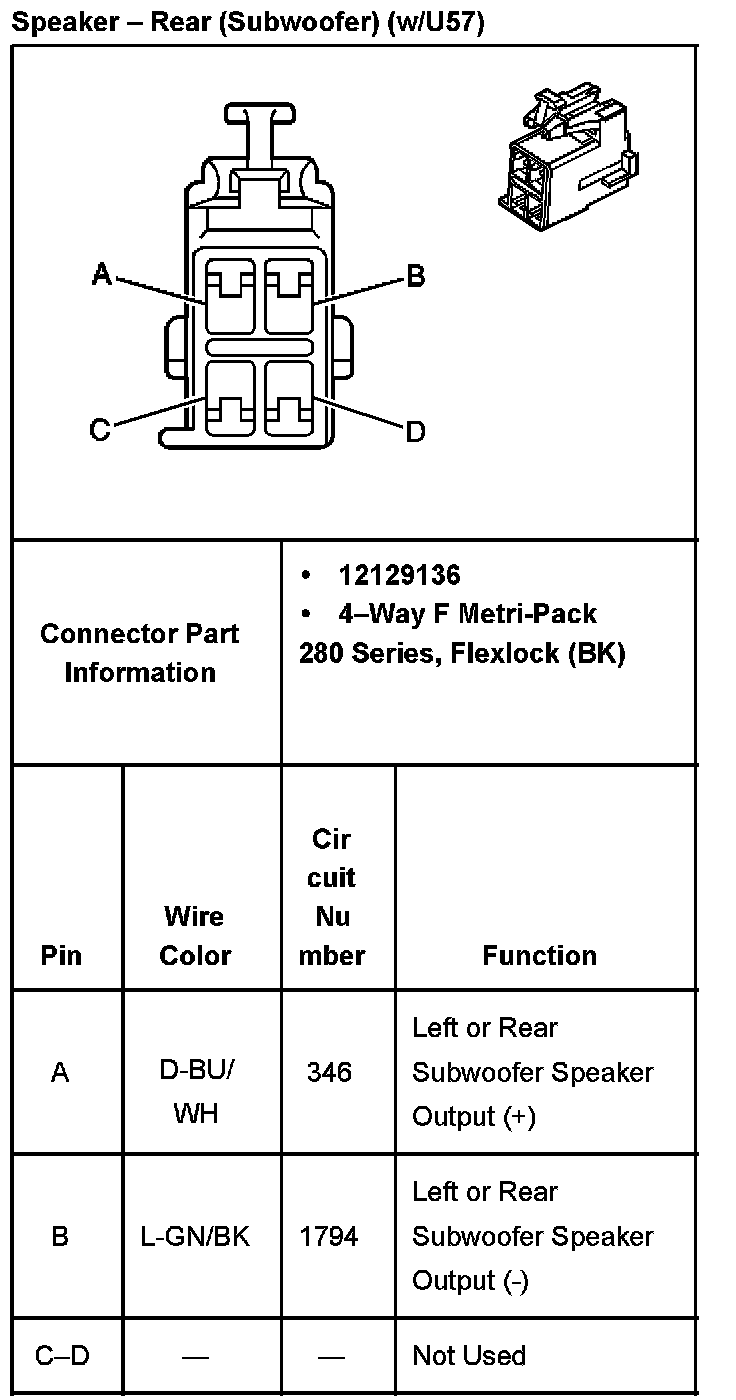

Speaker - Rear (Subwoofer) (With RPO Code U57):
